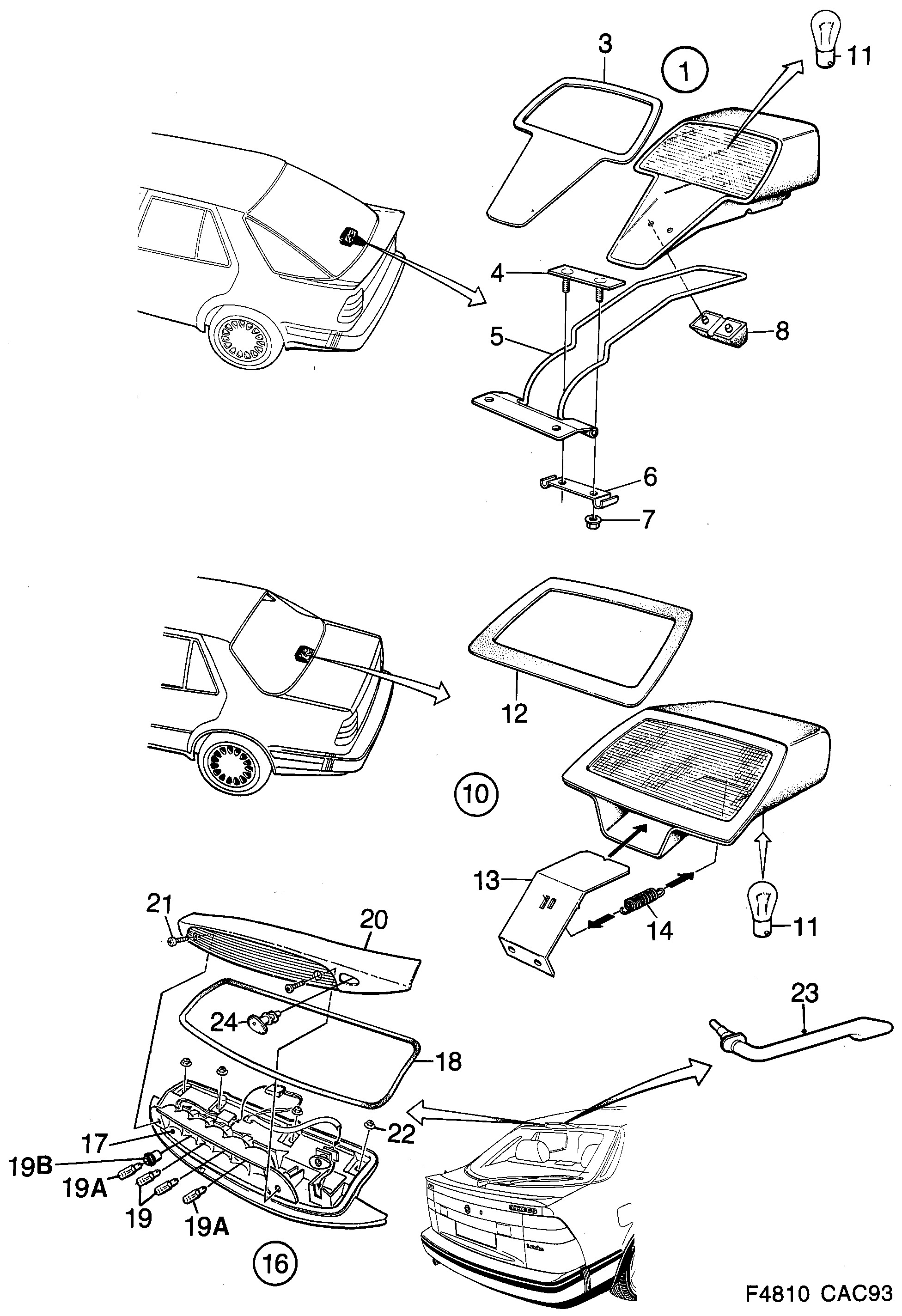

890: Electrical, general - Lighting - Stop light - High mounted
(1990 - 1993) | For 9000 (1990)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 95 67 223 Stop light | 1 | |
| 2 | 85 35 692 Bulb 40/238 304 000 | 1 | |
| 3 | 95 14 233 Seal | 1 | |
| 4 | 95 14 969 Attaching plate | 1 | |
| 5 | 95 18 267 Tensioner | 1 | |
| 6 | 95 14 951 Clamping-piece | 1 | |
| 7 | 81 51 227 Nut | 2 | |
| 8 | 96 59 301 Gasket | 1 | |
| 10 | 85 98 286 Stop light 1990-1990 | 1 | |
| 11 | 85 35 692 Bulb 40/238 304 000 | 1 | |
| 12 | 95 51 953 Seal | 1 | |
| 13 | 40 90 015 Bracket 1990-1990 | 1 | |
| 14 | 95 53 512 Spring | 1 | |
| 16 | 40 14 429 Stop light | 1 | |
| 16 | 43 44 834 Stop light | 1 | |
| 17 | 40 14 452 Socket, bulb | 1 | |
| 18 | 40 14 478 Sealing strip | 1 | |
| 19 | 95 12 880 93 190 471 Bulb | 2 | |
| 19 | 95 05 116 93 190 472 Bulb 40/238 288 005 | 2 | |
| 19A | 95 12 880 93 190 471 Bulb | 2 | |
| 19B | 44 48 999 Socket, bulb | 4 | |
| 20 | 43 20 255 46 73 273 Lens | 1 | |
| 20 | 40 14 460 46 73 281 Lens With rear window wiper. | 1 | |
| 21 | 79 74 025 Screw | 2 | |
| 22 | 73 98 423 Nut | 4 | |
| 23 | GrommetWiring and fuses 1990-1991 • Body Style: 5CS • high mounted brake light | ||
| 24 | NozzleWiring and fuses 1990-1991 • Body Style: 5CS |
