Question 1

Where to find the exploded diagram for 110-steering on my Saab 9000 1990?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for 110-steering on Saab 9000 1990. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section 110-steering?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section 110-steering?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section 110-steering, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section 110-steering suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

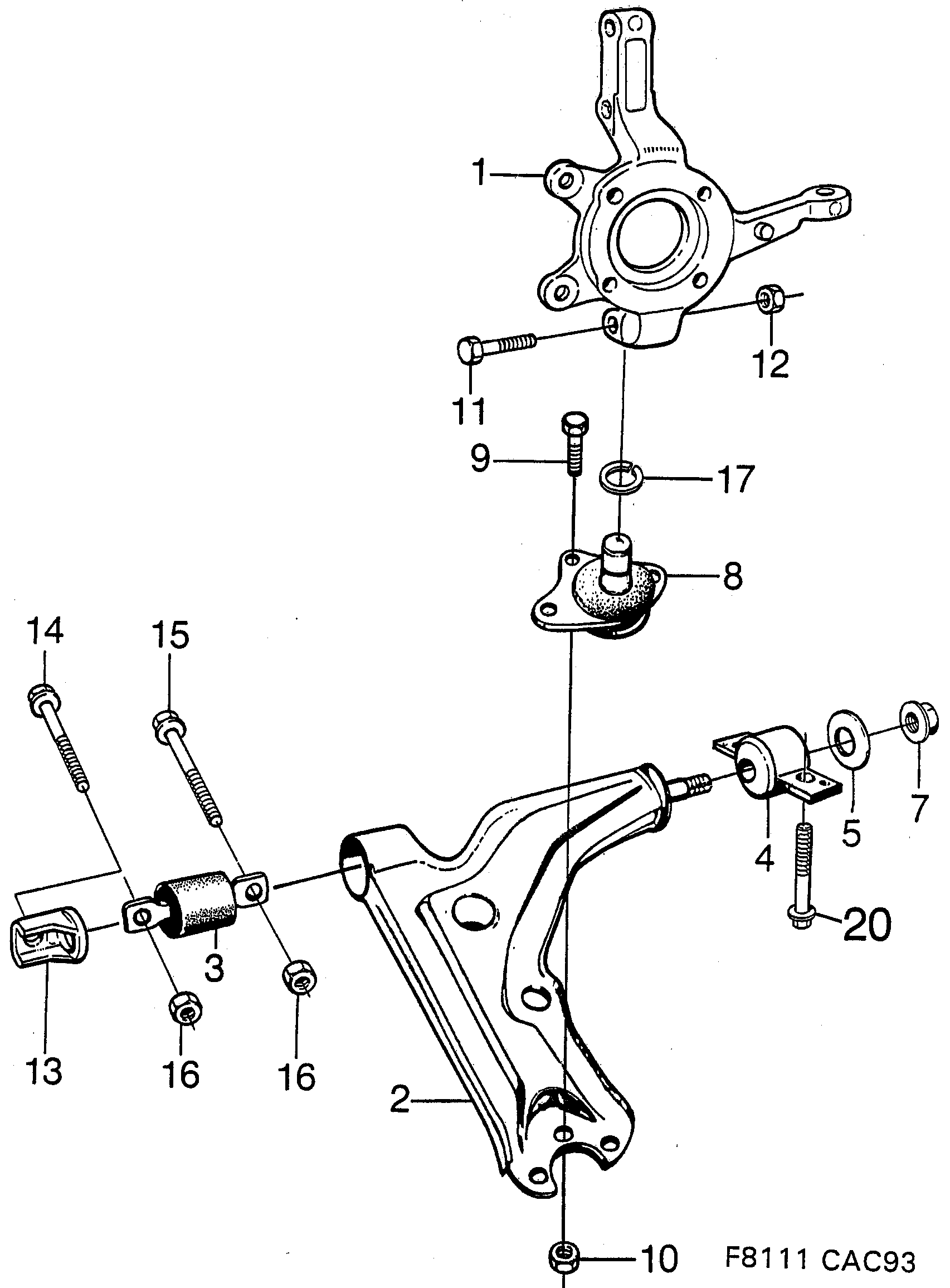

Pos.	Part No.	Description	Usage	Qty
1	89 73 190 Steering knuckle housing 1990-1992 • LH	Steering knuckle housing	1990-1992 LH	1
1	89 73 208 Steering knuckle housing 1990-1992 • RH	Steering knuckle housing	1990-1992 RH	1
1	89 73 216 Steering knuckle housing LH ABS	Steering knuckle housing	LH ABS	1
1	89 73 224 Steering knuckle housing RH ABS	Steering knuckle housing	RH ABS	1
2	89 58 365 Swivel arm LH	Swivel arm	LH	1
2	89 58 373 Swivel arm RH	Swivel arm	RH	1
3	89 61 476 Bushing	Bushing		2
4	89 65 253 Bearing anchorage	Bearing anchorage		2
5	89 58 779 Washer	Washer		2
7	79 71 765 92 153 201 Nut	Nut		2
8	89 94 212 Ball joint kit Kits	Ball joint kit Kits		2
9	79 77 382 79 82 986 Screw 1990-1990	Screw	1990-1990	6
10	79 75 501 11 066 386 Nut	Nut		6
11	89 65 121 Screw	Screw		2
12	79 77 309 Nut	Nut		2
13	89 69 669 44 26 003 Bearing support 1990-1992	Bearing support	1990-1992	4
14	79 79 248 Screw 1990-1990	Screw	1990-1990	2
15	40 01 111 Screw	Screw		2
16	79 73 464 11 900 437 Nut	Nut		4
17	79 63 168 Lock ring	Lock ring		2
20	ScrewBody shell	ScrewBody shell

Pos.	Part No.	Description	Usage	Qty
1	89 73 190 Steering knuckle housing 1990-1992 • LH	Steering knuckle housing	1990-1992 LH	1
1	89 73 208 Steering knuckle housing 1990-1992 • RH	Steering knuckle housing	1990-1992 RH	1
1	89 73 216 Steering knuckle housing LH ABS	Steering knuckle housing	LH ABS	1
1	89 73 224 Steering knuckle housing RH ABS	Steering knuckle housing	RH ABS	1
2	89 58 365 Swivel arm LH	Swivel arm	LH	1
2	89 58 373 Swivel arm RH	Swivel arm	RH	1
3	89 61 476 Bushing	Bushing		2
4	89 65 253 Bearing anchorage	Bearing anchorage		2
5	89 58 779 Washer	Washer		2
7	79 71 765 92 153 201 Nut	Nut		2
8	89 94 212 Ball joint kit Kits	Ball joint kit Kits		2
9	79 77 382 79 82 986 Screw 1990-1990	Screw	1990-1990	6
10	79 75 501 11 066 386 Nut	Nut		6
11	89 65 121 Screw	Screw		2
12	79 77 309 Nut	Nut		2
13	89 69 669 44 26 003 Bearing support 1990-1992	Bearing support	1990-1992	4
14	79 79 248 Screw 1990-1990	Screw	1990-1990	2
15	40 01 111 Screw	Screw		2
16	79 73 464 11 900 437 Nut	Nut		4
17	79 63 168 Lock ring	Lock ring		2
20	ScrewBody shell	ScrewBody shell
