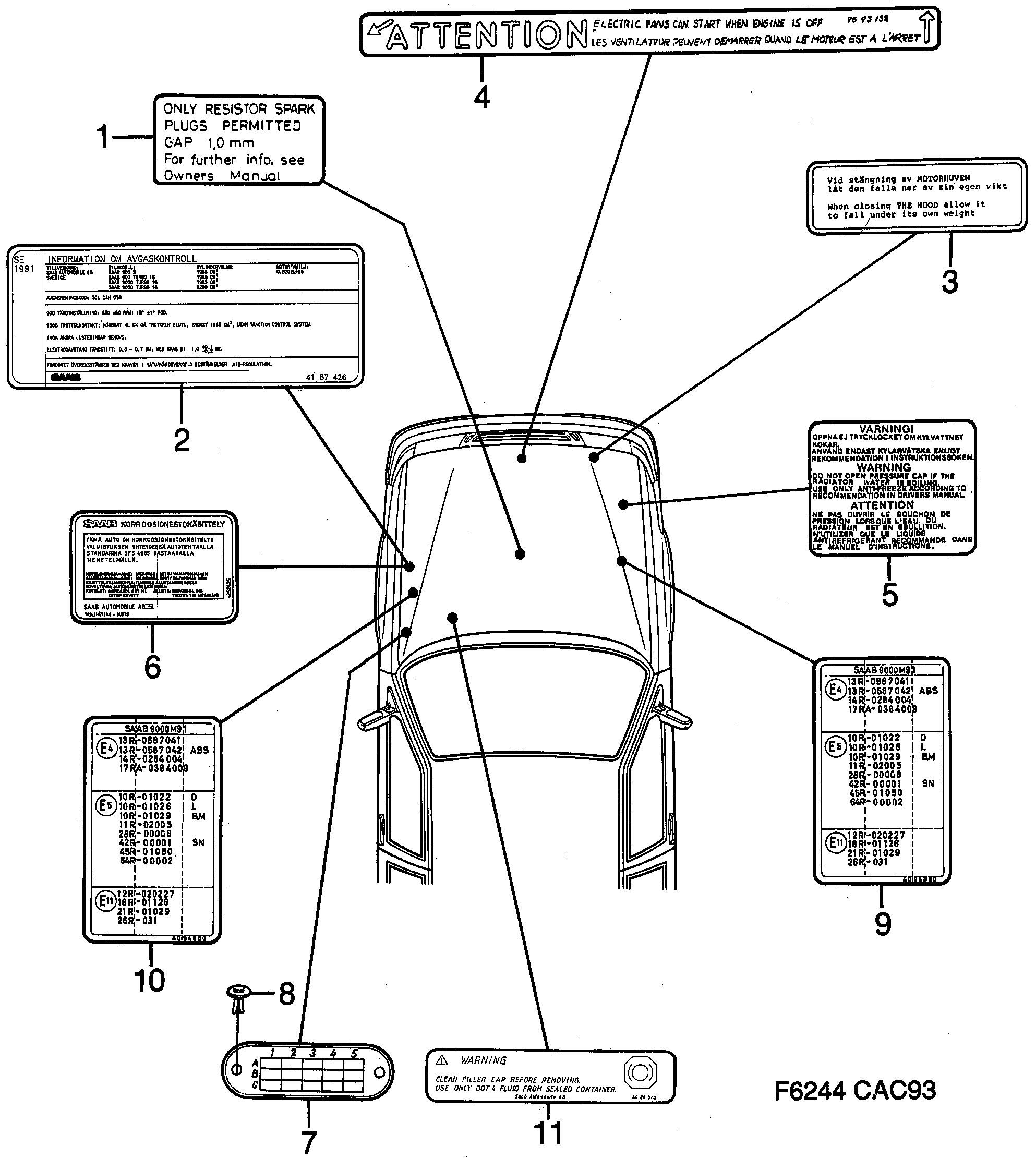

140: Tool, labels - Labels - Part 1

(1990 - 1993) | For 9000 (1990)

100%

(N°110)

Section 140

(N°170)

Pos.	Part No.	Description	Usage	Qty
1	74 87 937 Label SPARK PLUGS,DI	Label	SPARK PLUGS,DI	1
2	40 23 305 Label -1990 • TURBO • Exhaust emission control	Label	-1990 TURBO Exhaust emission control	1
2	41 60 958 Label 1990-1990 • TURBO • Exhaust emission control	Label	1990-1990 TURBO Exhaust emission control	1
2	40 19 162 Label -1990 • I • Exhaust emission control Also...	Label	-1990 I Exhaust emission control Also...	1
2	41 60 941 Label 1990-1990 • I • Exhaust emission control Also...	Label	1990-1990 I Exhaust emission control Also...	1
2	40 23 313 Label -1990 • TURBO • Exhaust emission control	Label	-1990 TURBO Exhaust emission control	1
2	41 61 063 Label 1990-1990 • TURBO • Exhaust emission control	Label	1990-1990 TURBO Exhaust emission control	1
2	40 18 750 Label -1990 • I • Exhaust emission control	Label	-1990 I Exhaust emission control	1
2	41 61 055 Label 1990-1990 • I • Exhaust emission control	Label	1990-1990 I Exhaust emission control	1
2	41 56 402 Label -1990 • B234I • Exhaust emission control	Label	-1990 B234I Exhaust emission control	1
2	41 61 071 Label 1990-1990 • B234I • Exhaust emission control	Label	1990-1990 B234I Exhaust emission control	1
2	40 23 339 Label -1990 • TURBO • Exhaust emission control	Label	-1990 TURBO Exhaust emission control	1
2	41 61 121 Label 1990-1990 • TURBO • Exhaust emission control	Label	1990-1990 TURBO Exhaust emission control	1
2	40 18 693 Label -1990 • I • Exhaust emission control	Label	-1990 I Exhaust emission control	1
2	41 61 113 Label 1990-1990 • I • Exhaust emission control	Label	1990-1990 I Exhaust emission control	1
2	41 56 394 Label -1990 • B234I • Exhaust emission control	Label	-1990 B234I Exhaust emission control	1
2	41 61 154 Label 1990-1990 • B234I • Exhaust emission control	Label	1990-1990 B234I Exhaust emission control	1
2	41 57 764 Label -1990 • TURBO • Exhaust emission control	Label	-1990 TURBO Exhaust emission control	1
2	41 61 147 Label 1990-1990 • TURBO • Exhaust emission control	Label	1990-1990 TURBO Exhaust emission control	1
2	41 57 756 Label -1990 • I • Exhaust emission control	Label	-1990 I Exhaust emission control	1
2	41 61 139 Label 1990-1990 • I • Exhaust emission control	Label	1990-1990 I Exhaust emission control	1
2	40 23 321 Label -1990 • TURBO • Exhaust emission control	Label	-1990 TURBO Exhaust emission control	1
2	41 61 097 Label 1990-1990 • TURBO • Exhaust emission control	Label	1990-1990 TURBO Exhaust emission control	1
2	40 18 792 Label -1990 • I • Exhaust emission control	Label	-1990 I Exhaust emission control	1
2	41 61 089 Label 1990-1990 • I • Exhaust emission control	Label	1990-1990 I Exhaust emission control	1
2	41 58 598 Label -1990 • B234I • Exhaust emission control	Label	-1990 B234I Exhaust emission control	1
2	41 61 105 Label 1990-1990 • B234I • Exhaust emission control	Label	1990-1990 B234I Exhaust emission control	1
3	92 70 547 Label ENGINE HOOD	Label	ENGINE HOOD	1
4	75 73 132 53 24 595 Label ELECTRIC FANS ATTENTION	Label	ELECTRIC FANS ATTENTION	1
4	41 62 749 Label ELECTRIC FANS ATENCAO,	Label	ELECTRIC FANS ATENCAO,	1
5	93 41 439 Label COOLING WATER	Label	COOLING WATER	1
5	40 17 596 Label COOLING WATER	Label	COOLING WATER	1
6	40 13 132 Label -1990 • CORR-PROTECTION	Label	-1990 CORR-PROTECTION	1
6	41 53 813 Label 1990-1990 • CORR-PROTECTION,	Label	1990-1990 CORR-PROTECTION,	1
6	42 52 425 Label 1990- • CORR-PROTEC	Label	1990- CORR-PROTEC	1
7	92 83 722 43 99 804 Sign CAMPAIGN	Sign	CAMPAIGN	1
8	79 73 258 Rivet	Rivet		2
9	40 89 082 Label 1990-1990 • ECE-APPROVALS	Label	1990-1990 ECE-APPROVALS	1
