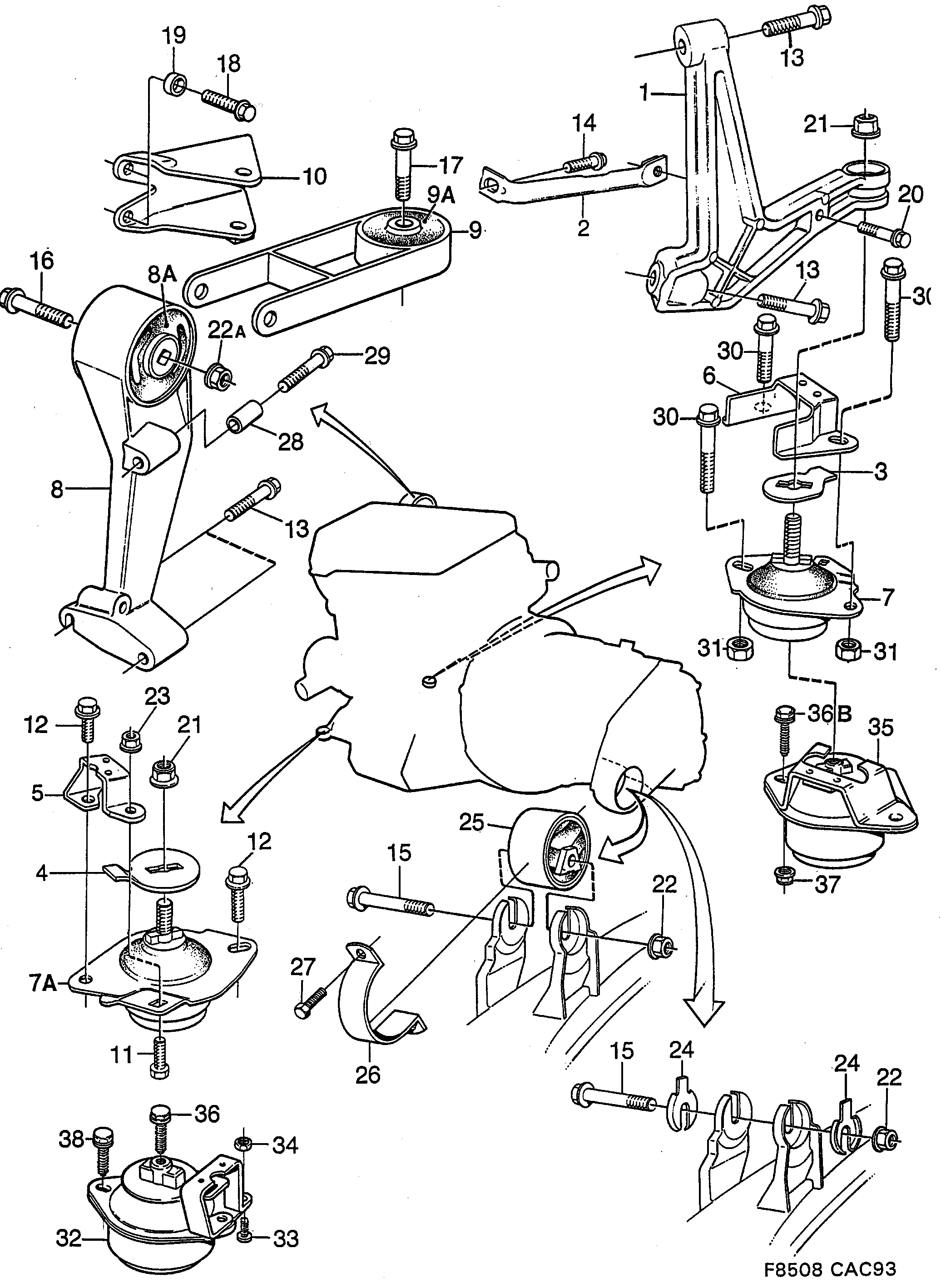

110: Engine - Short block - Engine mounting
(1990 - 1993) | For 9000 (1992)
100%
Section 110
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 77 695 Bracket B202 | 1 | |
| 1 | Bearing bracketGearbox, automatic B234 | ||
| 2 | 75 50 528 Brace | 1 | |
| 3 | 75 51 971 Limiter | 1 | |
| 4 | 75 51 963 Limiter B202TURBO | 1 | |
| 5 | 40 28 775 Stop B202TURBO | 1 | |
| 6 | 40 27 520 Stop | 1 | |
| 7 | 87 86 006 Vibration damper | 1 | |
| 7A | 87 86 006 Vibration damper B202TURBO | 1 | |
| 7A | 75 92 975 87 86 006 Vibration damper B202I | 1 | |
| 8 | 75 77 554 Engine anchorage B202 | 1 | |
| 8 | 75 96 521 32 026 107 Engine anchorage B234 | 1 | |
| 8A | 75 76 333 Rubber cushion | 1 | |
| 9 | 75 99 913 Torque rod | 1 | |
| 9A | 75 76 333 Rubber cushion | 1 | |
| 10 | 87 86 071 Bracket B202 | 1 | |
| 10 | 75 73 413 Bracket B234 | 1 | |
| 11 | 75 51 385 Screw | 1 | |
| 12 | 79 82 143 79 82 721 Screw | 2 | |
| 13 | 79 72 292 Screw | 4 | |
| 14 | 79 73 779 Screw | 1 | |
| 15 | 79 73 571 Screw | 1 | |
| 16 | 79 77 267 Screw | 1 | |
| 17 | 79 74 777 Screw | 1 | |
| 18 | 80 82 943 Screw | 3 | |
| 19 | 75 77 893 Spacer | 3 | |
| 20 | 79 72 292 Screw | 1 | |
| 21 | 79 79 552 92 153 201 Nut 1992-1993 | 2 | |
| 22 | 79 67 979 Nut | 2 | |
| 23 | 79 71 658 11 900 428 Nut | 1 | |
| 24 | 93 19 294 Washer | 2 | |
| 25 | Vibration damperGear box, manual Gearbox: M | 1 | |
| 25 | 75 51 831 41 65 312 Vibration damper | 1 | |
| 26 | 75 51 328 Cap | 1 | |
| 27 | 79 70 288 Screw | 2 | |
| 28 | 75 36 857 Spacer For cars with parted... | 1 | |
| 29 | 79 72 292 Screw | 1 | |
| 29 | 79 73 803 80 84 030 Screw For cars with parted... | 1 | |
| 29 | 79 78 257 92 150 019 Screw B234 | 1 | |
| 30 | 79 82 127 Screw | 3 | |
| 31 | 79 69 306 Lock nut | 3 | |
| 32 | 75 99 848 41 65 494 Vibration damper B234 | 1 | |
| 33 | 75 51 385 Screw | 1 | |
| 34 | 79 71 658 11 900 428 Nut | 1 | |
| 35 | 75 99 855 41 65 510 Vibration damper B234 | 1 | |
| 36 | 79 82 127 Screw B234 | 2 | |
| 36B | 79 82 721 Screw 1991- • B234 | 3 | |
| 37 | 79 69 306 Lock nut B234 | 3 | |
| 38 | 79 82 721 Screw 1991- • B234 | 3 |
