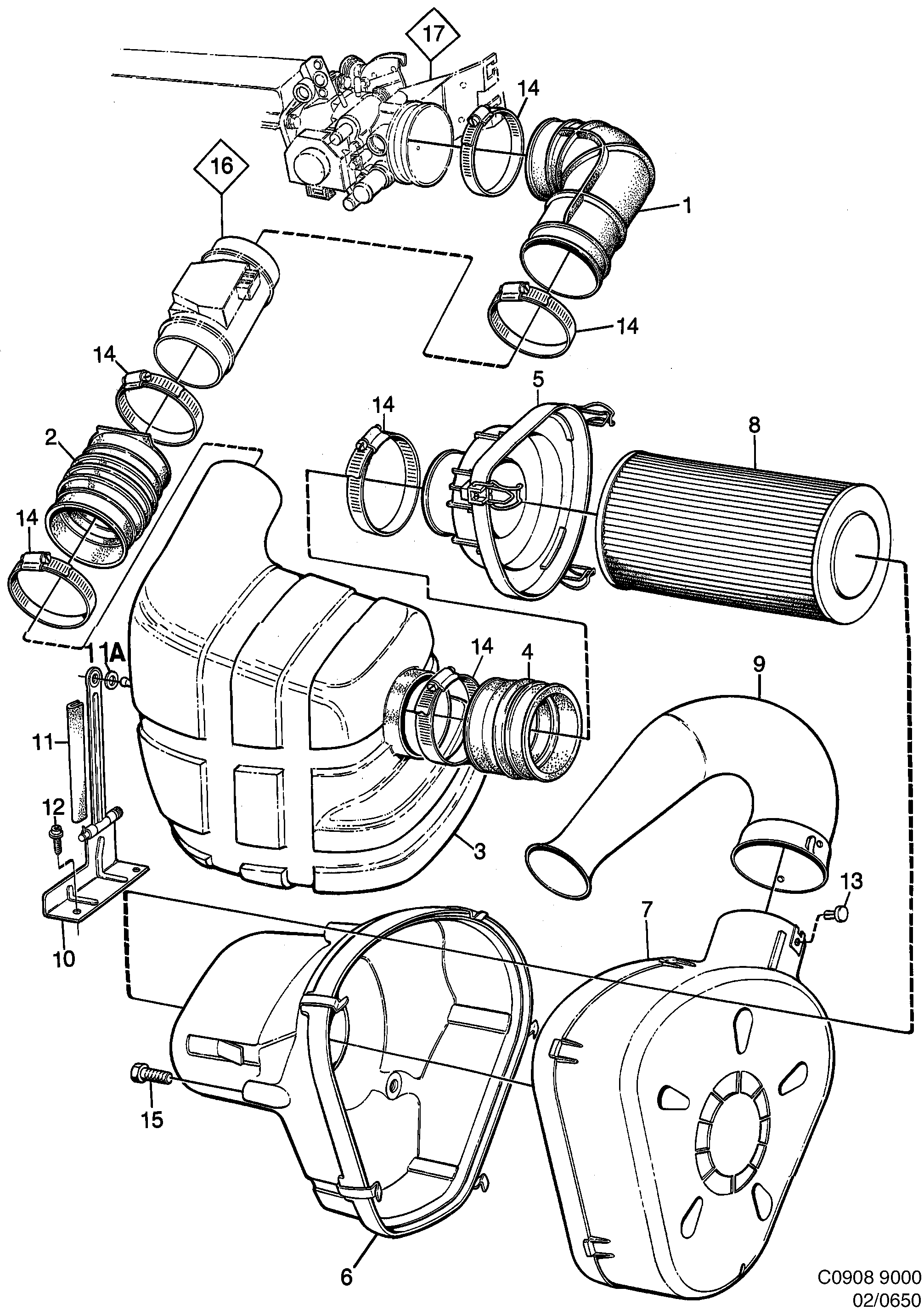

650: Engine - Fuel system - Air cleaner
(1992 - 1993) | For 9000 (1992)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 88 968 Hose 06 | 1 | |
| 2 | 43 91 686 Hose 06 | 1 | |
| 3 | 41 58 234 Silencer 06 | 1 | |
| 4 | 40 15 947 Hose 06 | 1 | |
| 5 | 40 16 861 Cover 06 | 1 | |
| 6 | 93 90 170 Air cleaner housing 06 | 1 | |
| 7 | 93 91 616 Air cleaner housing 06 | 1 | |
| 8 | 93 90 907 Air filter 06 | 1 | |
| 9 | 93 90 915 Pipe 06 | 1 | |
| 10 | 41 58 168 Bracket 06 | 1 | |
| 11 | 95 28 910 Protection 06 | 1 | |
| 11A | 79 33 500 Bushing 06 | 1 | |
| 12 | 79 72 938 92 151 992 Screw 06 | 4 | |
| 13 | 95 65 417 Rivet 06 | 1 | |
| 14 | 79 70 155 92 153 080 Hose clamp 06 | 6 | |
| 15 | 79 77 788 Screw 06 | 3 | |
| 16 | Mass air flow sensorFuel system 06 | ||
| 17 | Throttle bodyIntake and exhaust system 06 |
