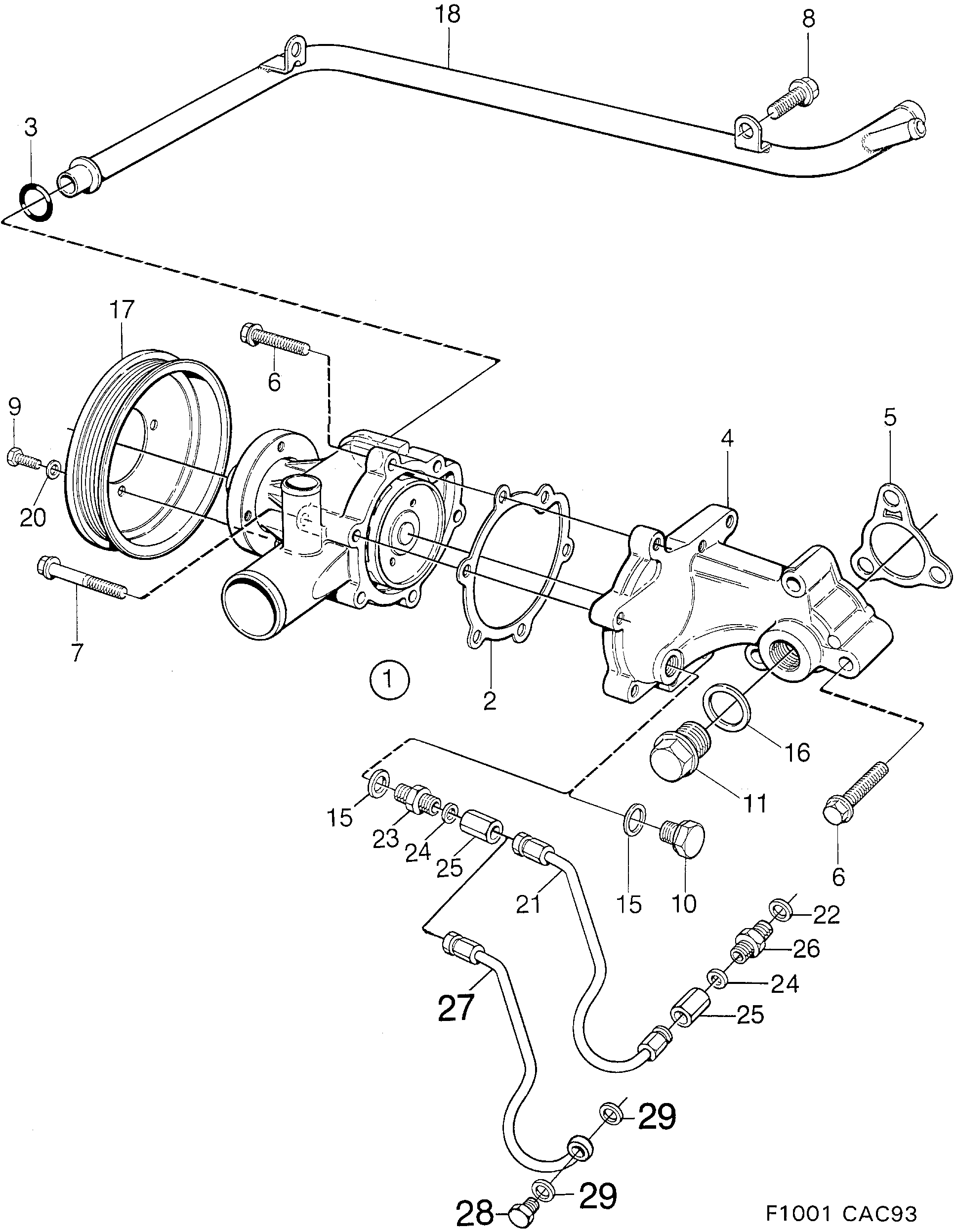

2000: Engine - Cooling system - Coolant pump
(1990 - 1993) | For 9000 (1993)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 21 670 | 1 | |
| 2 | 75 66 581 Gasket 05 | 1 | |
| 3 | 79 72 698 91 46 598 O-ring 05 | 1 | |
| 4 | 75 07 247 Bracket 05 | 1 | |
| 5 | 75 23 897 Gasket 05 | 1 | |
| 6 | 81 25 197 Screw 05 | 6 | |
| 7 | 81 25 239 Screw 05 | 5 | |
| 8 | 81 25 148 Screw 05 | 1 | |
| 9 | 80 19 903 79 85 930 Screw 05 | 4 | |
| 10 | 81 23 721 75 63 042 Plug 05 | 1 | |
| 11 | 81 23 788 Plug 05 | 1 | |
| 15 | 81 24 141 92 150 435 Gasket 05 | 1 | |
| 16 | 81 24 208 91 16 856 Gasket 05 | 1 | |
| 17 | 93 59 985 Pulley 05 | 1 | |
| 18 | 75 85 565 Tube 05 | 1 | |
| 20 | 91 66 380 Washer 1993-1993 • 05 | 4 | |
| 27 | 91 28 018 Tube 1991-1993 • TURBO • T25 | 1 | |
| 28 | 81 23 903 92 150 977 Banjo screw TURBO • T25 | 1 | |
| 29 | 81 24 141 92 150 435 Gasket TURBO • T25 | 2 |
