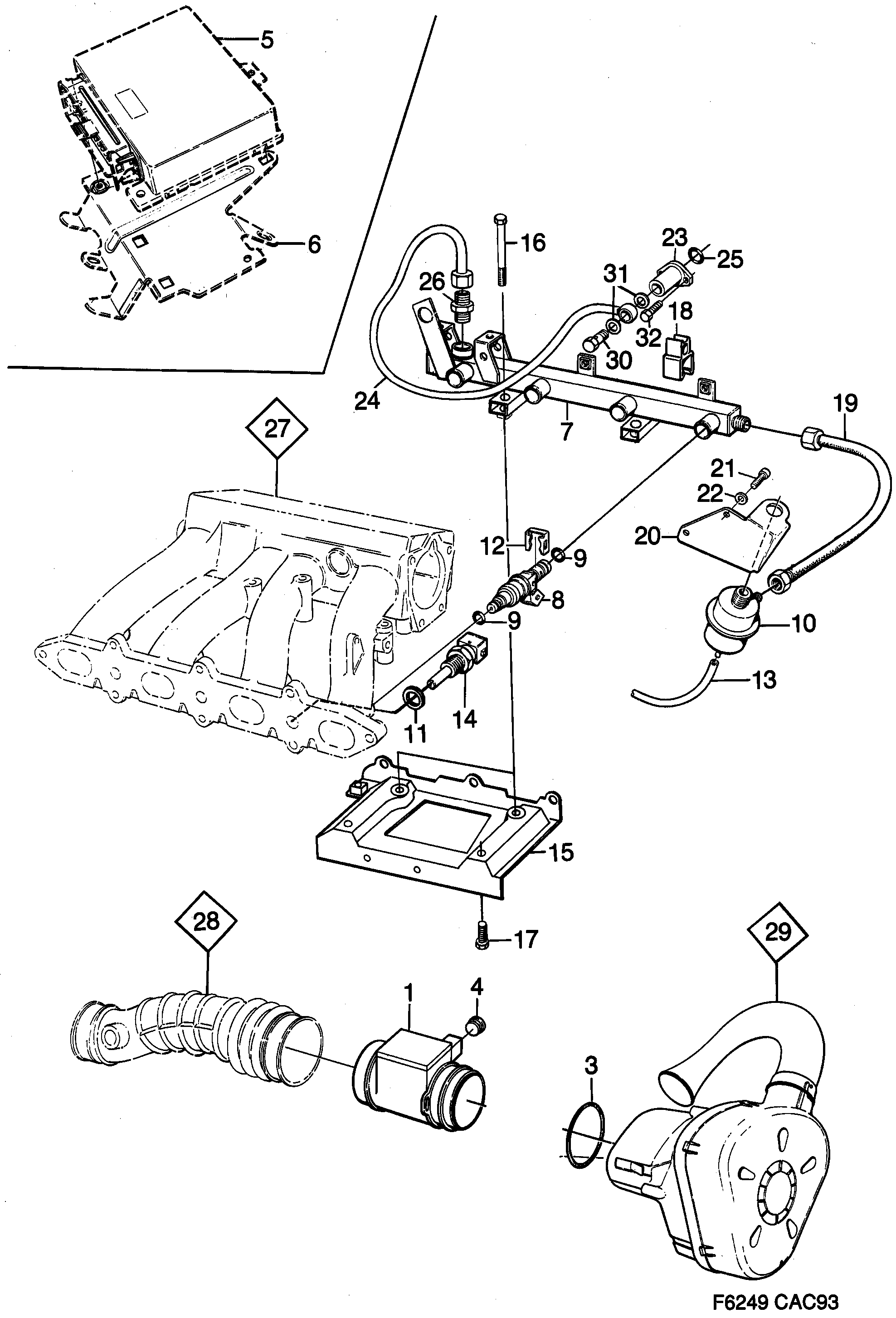

860: Engine - Fuel system - Distribution pipe
(1990 - 1993) | For 9000 (1993)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 78 72 393 Mass air flow sensor 1991-1993 • TURBO • Without catalytic converter. Also... | 1 | |
| 1 | 75 38 655 Mass air flow sensor TURBO • With catalytic converter. Also... | 1 | |
| 1 | 78 72 385 Mass air flow sensor 1991-1993 • I • Without catalytic converter. Also... | 1 | |
| 1 | 75 38 663 Mass air flow sensor I • With catalytic converter. Also... | 1 | |
| 3 | 79 74 306 O-ring 05 | 1 | |
| 4 | 75 25 710 Plug 05 | 1 | |
| 4 | 93 83 076 Plug I • With catalytic converter. | 1 | |
| 5 | Electronic unitFuel system 05 | 1 | |
| 6 | BracketFuel system 05 | 1 | |
| 7 | 78 72 922 Tube 05 | 1 | |
| 8 | 75 60 170 Injection valve TURBO | 4 | |
| 8 | 75 60 162 Injection valve I | 4 | |
| 9 | 75 61 210 O-ring 05 | 9 | |
| 10 | 74 86 913 Regulator TURBO • Without catalytic converter. | 1 | |
| 10 | 74 86 905 Regulator TURBO • With catalytic converter. | 1 | |
| 10 | 74 86 921 Regulator TURBO, I • (137KW) | With catalytic... | 1 | |
| 11 | 83 26 704 Seal 05 | 1 | |
| 12 | 93 56 486 Clamp 05 | 4 | |
| 13 | 91 36 243 Vacuum hose 05 • L=530 MM | Sold... | 1 | |
| 14 | 93 57 021 Temperature sensor B202I, B202S, B202R • For cars without ETS. | 1 | |
| 15 | 74 81 336 Bracket 05 | 1 | |
| 16 | 75 66 730 Screw 05 | 2 | |
| 17 | 81 25 148 Screw 05 | 2 | |
| 18 | 75 39 950 Clamp 05 | 1 | |
| 19 | 74 86 954 Fuel pipe 05 | 1 | |
| 20 | 87 87 665 Bracket 1991-1993 • 05 | 1 | |
| 21 | 93 50 653 Screw 05 | 2 | |
| 22 | 91 66 364 Washer 1993-1993 • 05 | 2 | |
| 23 | 74 86 129 Starter valve I | 1 | |
| 24 | 89 81 417 Fuel pipe I | 1 | |
| 25 | 80 46 542 O-ring I | 1 | |
| 26 | 89 81 581 Nipple I | 1 | |
| 27 | Intake manifoldIntake and exhaust system 05 | ||
| 27 | Intake manifoldIntake and exhaust system 05 | ||
| 28 | HoseKits 05 | ||
| 28 | HoseFuel system 1993-1993 • 05 | ||
| 29 | Air cleaner housingFuel system 05 | ||
| 29 | Air cleaner housingFuel system 1993-1993 • 05 | ||
| 30 | 83 20 319 Banjo bolt 05 | 1 | |
| 31 | 89 81 987 Seal 05 | 2 | |
| 32 | 75 07 072 Screw 05 | 2 | |
91 36 243 Vacuum hose 05 • L=5000 MM | Sold... | X |
