Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1993?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1993. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

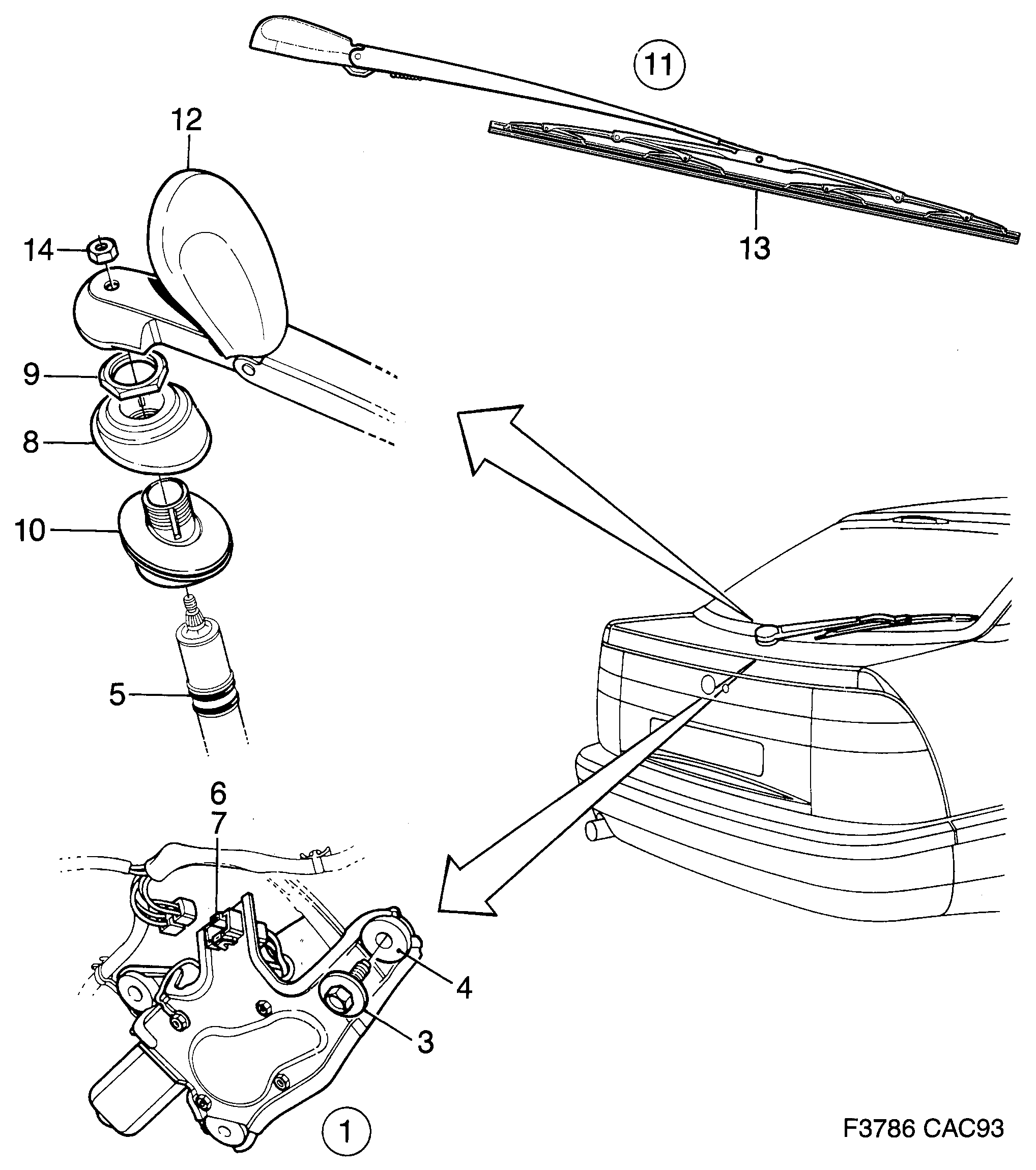

Pos.	Part No.	Description	Usage	Qty
1	90 86 869 Wiper motor	Wiper motor		1
3	90 86 935 Screw	Screw		3
4	90 86 943 Rubber bushing	Rubber bushing		3
5	90 86 950 O-ring	O-ring		2
6	95 18 739 Contact housing 4-pin, male	Contact housing	4-pin, male	1
7	95 52 100 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	4
8	90 86 885 Steering knuckle retainer	Steering knuckle retainer		1
9	90 86 901 Nut	Nut		1
10	90 86 877 Steering knuckle retainer	Steering knuckle retainer		1
11	90 83 684 Wiper arm	Wiper arm		1
12	43 20 453 Cover	Cover		1
13	95 29 488 Wiper blade	Wiper blade		1
14	79 77 929 11 900 451 Nut	Nut		1

Pos.	Part No.	Description	Usage	Qty
1	90 86 869 Wiper motor	Wiper motor		1
3	90 86 935 Screw	Screw		3
4	90 86 943 Rubber bushing	Rubber bushing		3
5	90 86 950 O-ring	O-ring		2
6	95 18 739 Contact housing 4-pin, male	Contact housing	4-pin, male	1
7	95 52 100 Cable terminal AREA,0,75-1,5 MM2	Cable terminal	AREA,0,75-1,5 MM2	4
8	90 86 885 Steering knuckle retainer	Steering knuckle retainer		1
9	90 86 901 Nut	Nut		1
10	90 86 877 Steering knuckle retainer	Steering knuckle retainer		1
11	90 83 684 Wiper arm	Wiper arm		1
12	43 20 453 Cover	Cover		1
13	95 29 488 Wiper blade	Wiper blade		1
14	79 77 929 11 900 451 Nut	Nut		1

1010: Electrical, general - Electric equipment, other - Rear window wiper
