Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1993?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1993. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	40 94 942 Electric motor 1991-1993 • LH	Electric motor	1991-1993 LH	1
1	40 94 926 Electric motor 1991-1993 • RH	Electric motor	1991-1993 RH	1
1	91 23 233 Electric motor LHD • LH	Electric motor	LHD LH	1
1	91 23 241 Electric motor LHD • RH	Electric motor	LHD RH	1
3	42 50 197 Wiper arm 1992-1993 • LH	Wiper arm	1992-1993 LH	1
3	42 50 205 Wiper arm 1992-1993 • RH	Wiper arm	1992-1993 RH	1
3	42 51 476 Wiper arm 1992-1993, LHD • LH	Wiper arm	1992-1993, LHD LH	1
3	42 51 484 Wiper arm 1992-1993, LHD • RH	Wiper arm	1992-1993, LHD RH	1
4A	91 23 217 Adapter LHD • LH	Adapter	LHD LH	1
4A	91 23 225 Adapter LHD • RH	Adapter	LHD RH	1
6	40 95 063 Wiper blade 1991-1993	Wiper blade	1991-1993	2
7	79 77 911 32 026 207 Nut 1993-1993	Nut	1993-1993	2
9	95 01 495 Bracket	Bracket		2
10	81 51 227 Nut	Nut		2
11	91 24 124 Shield For cars with oil...	Shield	For cars with oil...	1
12	79 22 420 Screw	Screw		2
	85 48 042 Wiper blade kit Kits 1991-1993	Wiper blade kit Kits	1991-1993	X

Pos.	Part No.	Description	Usage	Qty
1	40 94 942 Electric motor 1991-1993 • LH	Electric motor	1991-1993 LH	1
1	40 94 926 Electric motor 1991-1993 • RH	Electric motor	1991-1993 RH	1
1	91 23 233 Electric motor LHD • LH	Electric motor	LHD LH	1
1	91 23 241 Electric motor LHD • RH	Electric motor	LHD RH	1
3	42 50 197 Wiper arm 1992-1993 • LH	Wiper arm	1992-1993 LH	1
3	42 50 205 Wiper arm 1992-1993 • RH	Wiper arm	1992-1993 RH	1
3	42 51 476 Wiper arm 1992-1993, LHD • LH	Wiper arm	1992-1993, LHD LH	1
3	42 51 484 Wiper arm 1992-1993, LHD • RH	Wiper arm	1992-1993, LHD RH	1
4A	91 23 217 Adapter LHD • LH	Adapter	LHD LH	1
4A	91 23 225 Adapter LHD • RH	Adapter	LHD RH	1
6	40 95 063 Wiper blade 1991-1993	Wiper blade	1991-1993	2
7	79 77 911 32 026 207 Nut 1993-1993	Nut	1993-1993	2
9	95 01 495 Bracket	Bracket		2
10	81 51 227 Nut	Nut		2
11	91 24 124 Shield For cars with oil...	Shield	For cars with oil...	1
12	79 22 420 Screw	Screw		2
	85 48 042 Wiper blade kit Kits 1991-1993	Wiper blade kit Kits	1991-1993	X

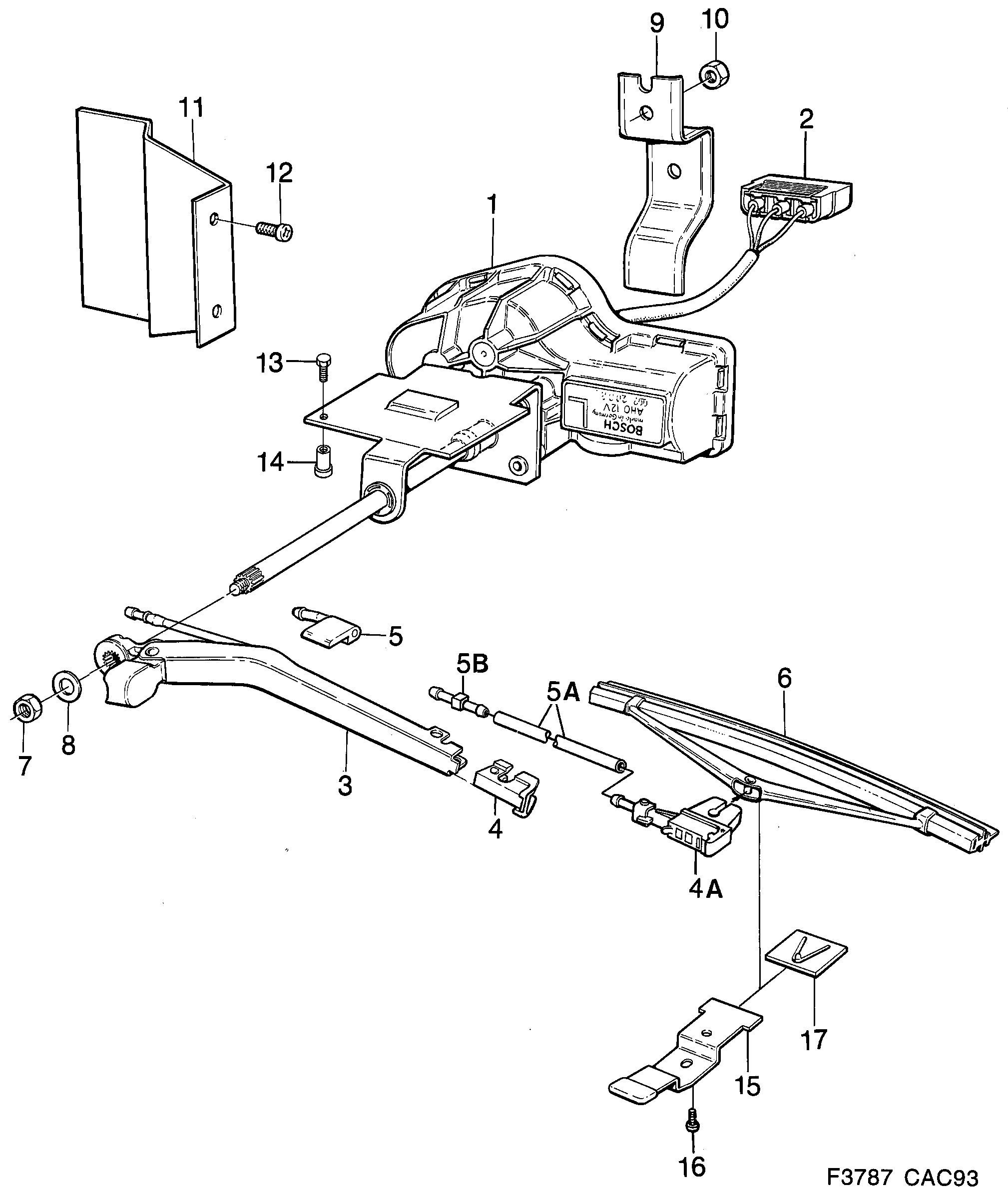

1040: Electrical, general - Electric equipment, other - Headlamp wiper
