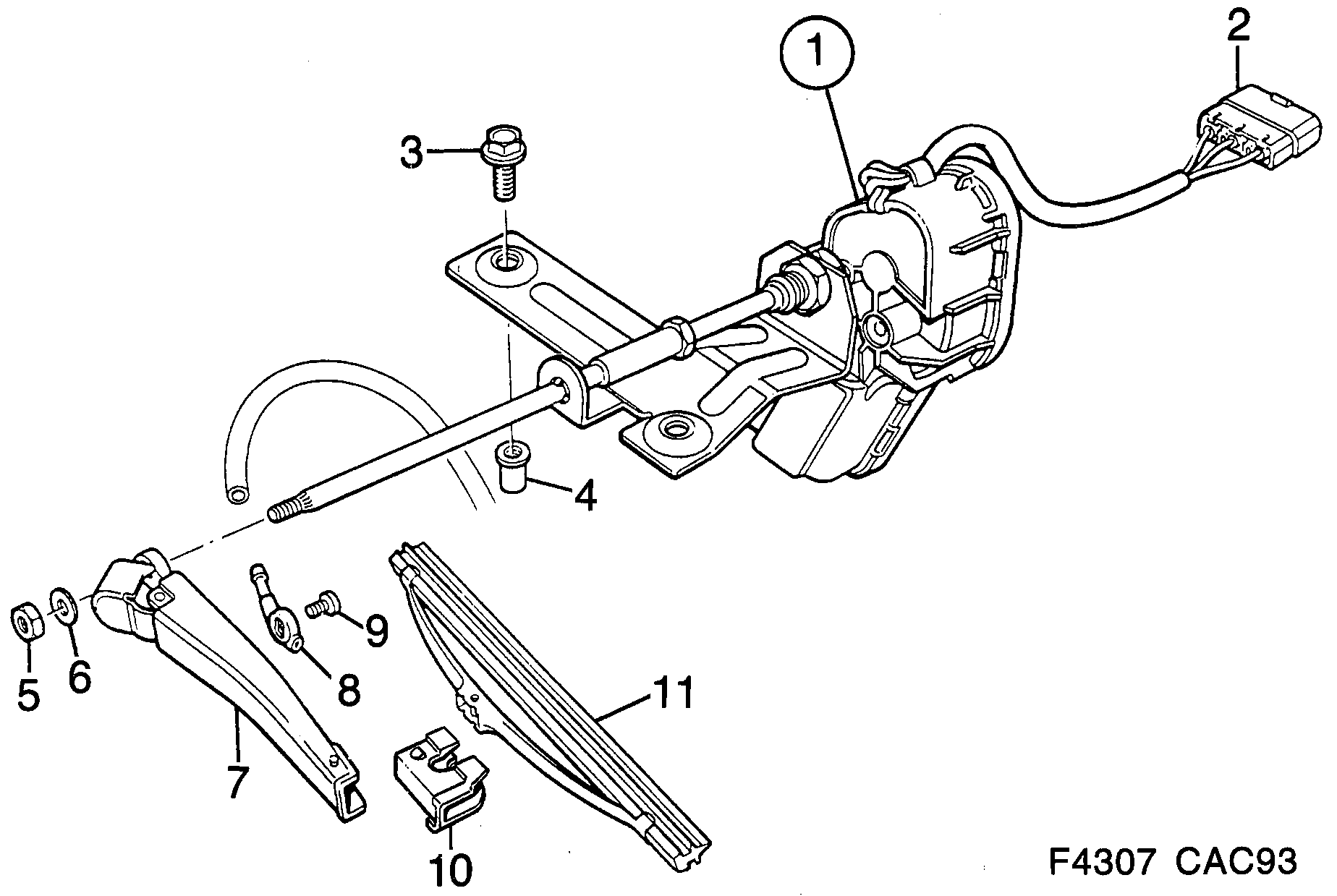

1070: Electrical, general - Electric equipment, other - Headlamp wiper
(1992 - 1993 | 5CS) | For 9000 (1993)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 90 82 470 Electric motor LH | 1 | |
| 1 | 90 82 488 Electric motor RH | 1 | |
| 2 | 95 03 327 Contact housing 3-pin, male | 1 | |
| 3 | 79 78 117 11 900 355 Screw | 4 | |
| 4 | 73 99 454 91 30 829 Rivet nut | 4 | |
| 5 | 80 29 548 Nut | 2 | |
| 6 | 79 72 284 Washer | 2 | |
| 7 | 90 82 553 Wiper arm LH | 1 | |
| 7 | 90 82 561 Wiper arm RH | 1 | |
| 8 | 90 89 129 Nozzle LH | 1 | |
| 8 | 90 89 111 Nozzle RH | 1 | |
| 9 | 42 51 021 Screw | 1 | |
| 10 | 95 58 149 Adapter | 1 | |
| 11 | 90 82 587 Wiper blade | 2 | |
| 11 | 90 88 238 Wiper blade LHD | 2 | |
| X | |||
| X |
