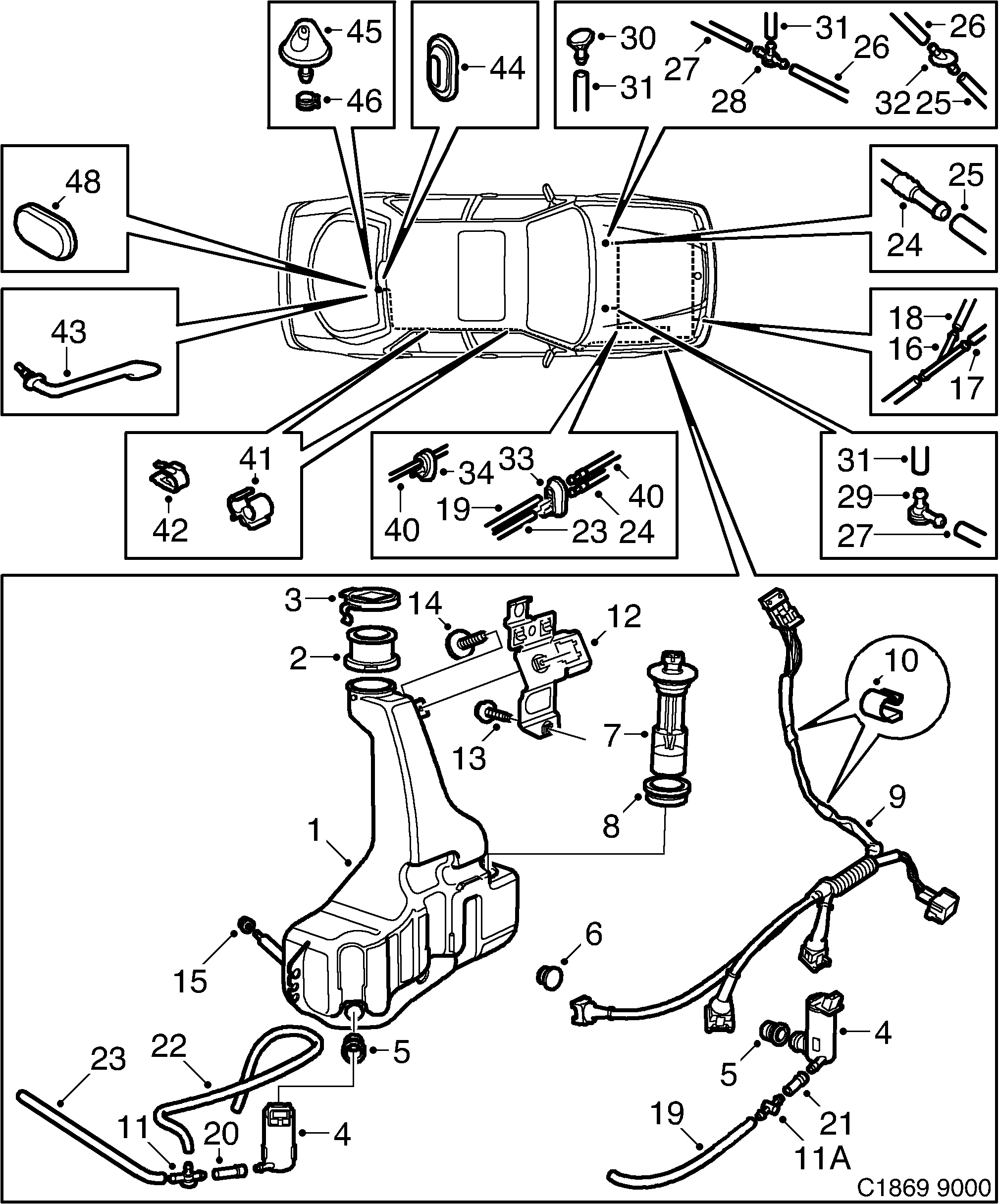

1130: Electrical, general - Electric equipment, other - Washer unit
(1992 - 1993) | For 9000 (1993)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 40 92 342 Washer fluid reservoir | 1 | |
| 2 | 43 41 145 Filler pipe | 1 | |
| 3 | 40 92 359 Cover | 1 | |
| 4 | 43 20 123 Pump, washer-reservoir | 1 | |
| 5 | 95 07 617 Bushing | 2 | |
| 6 | 43 41 111 Bushing Without rear window wiper. | 1 | |
| 7 | 41 71 146 12 788 696 Level guard | 1 | |
| 7 | Level guardKits Kit | ||
| 8 | 41 71 153 12 787 615 Bushing | 1 | |
| 9 | 41 71 161 Cable harness | 1 | |
| 9 | 41 71 179 Cable harness With rear window wiper. | 1 | |
| 10 | 71 08 491 Clamp | X | |
| 11A | 85 73 651 51 42 765 Valve | 1 | |
| 11 | 41 71 112 53 36 979 Valve With rear window wiper. | 1 | |
| 12 | 41 71 203 Bracket | 1 | |
| 13 | 79 78 091 11 900 353 Screw | 1 | |
| 14 | 73 99 900 Hexagon screw | 1 | |
| 15 | 79 77 929 11 900 451 Nut | 2 | |
| 16 | 85 09 002 Tube | 1 | |
| 17 | 85 48 273 Hose L=1150 MM | 1 | |
| 18 | 85 48 273 Hose L=60 MM | 1 | |
| 19 | 85 48 273 Hose L=150 MM | 1 | |
| 20 | 85 48 273 Hose L=30 MM | 1 | |
| 21 | 85 48 273 Hose L=30 MM | 1 | |
| 22 | 85 48 273 Hose L=500 MM | 1 | |
| 23 | 85 48 273 Hose L=220 MM | 1 | |
| 24 | 42 52 458 Hose | 1 | |
| 25 | 85 48 273 Hose L=245 MM | 1 | |
| 26 | 85 48 273 Hose L=200 MM | 1 | |
| 27 | 85 48 273 Hose L=600 MM | 1 | |
| 28 | 95 69 013 51 42 765 Valve LH | 1 | |
| 29 | 85 73 669 51 42 757 Valve RH | 1 | |
| 30 | 42 54 645 85 04 144 Nozzle | 2 | |
| 31 | 85 48 273 Hose L=30 MM | 2 | |
| 32 | ConnectorBody shell | ||
| 33 | 40 96 012 Grommet | 1 | |
| 34 | 42 54 611 Grommet | 1 | |
| 40 | 40 96 020 Hose rear window wiper | 1 | |
| 41 | 40 96 038 Clamp | X | |
| 42 | 42 51 997 Clamp | X | |
| 43 | 41 71 245 45 21 456 Grommet High mounted stop light.... | 1 | |
Cable harness Not as separate spare... | 1 | ||
| 43 | 43 80 515 Grommet 1992- • With rear window wiper.... | 1 | |
| 43 | 41 71 260 45 21 456 Grommet High mounted stop light.... | 1 | |
Cable harness Not as separate spare... | 1 | ||
| 44 | 41 71 278 Sealing plug | 1 | |
| 45 | 40 92 144 Nozzle With rear window wiper.... | 1 | |
| 45 | 41 72 441 Nozzle High mounted stop light.... | 1 | |
| 46 | 79 84 768 Clamp High mounted stop light.... | X | |
| 47 | 82 72 494 Plug Without high mounted stop... | 1 | |
49 59 714 Bracket For tropical market; ME,... | X | ||
85 48 273 Hose L=5000 MM | X |
