Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1993?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1993. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	41 02 851 Electronic unit 1993-1993	Electronic unit	1993-1993	1
	Door lockBody shell	Door lockBody shell
2	85 65 855 Clip	Clip		1
3	85 91 224 Electric motor 1993-1993	Electric motor	1993-1993	1
4	85 91 224 Electric motor	Electric motor		3
5	40 12 639 Electric motor	Electric motor		1
5	LockBonnet, front, wings Body Style: 4D	LockBonnet, front, wings Body Style: 4D
5	LockBonnet, front, wings Body Style: 5CS	LockBonnet, front, wings Body Style: 5CS
6	43 04 911 Electric motor 1993-1993	Electric motor	1993-1993	1
6A	41 17 560 Connector housing	Connector housing		1
6B	48 59 450 Opening handle	Opening handle		1
6C	Cable Not as separate spare...	Cable	Not as separate spare...
6C	Cable Not as separate spare...	Cable	Not as separate spare...	1
7	95 03 079 30 525 830 Bracket LH	Bracket	LH	2
7	95 03 061 30 525 829 Bracket RH	Bracket	RH	2
8	43 04 929 Bracket 1993-1993	Bracket	1993-1993	1
8	90 87 552 Bracket 1993-1993	Bracket	1993-1993	1
10	95 64 881 Pull rod	Pull rod		4
11	95 05 058 30 525 872 Bushing	Bushing		4
12	95 02 741 Pull rod	Pull rod		1
14	95 08 094 30 525 968 Rivet	Rivet		8
18	79 69 223 Screw	Screw		2
19	92 55 845 Plastic rivet	Plastic rivet		2
20	79 61 634 Rivet 1993-1993	Rivet	1993-1993	2
	SwitchWiring and fuses door	SwitchWiring and fuses door

Pos.	Part No.	Description	Usage	Qty
1	41 02 851 Electronic unit 1993-1993	Electronic unit	1993-1993	1
	Door lockBody shell	Door lockBody shell
2	85 65 855 Clip	Clip		1
3	85 91 224 Electric motor 1993-1993	Electric motor	1993-1993	1
4	85 91 224 Electric motor	Electric motor		3
5	40 12 639 Electric motor	Electric motor		1
5	LockBonnet, front, wings Body Style: 4D	LockBonnet, front, wings Body Style: 4D
5	LockBonnet, front, wings Body Style: 5CS	LockBonnet, front, wings Body Style: 5CS
6	43 04 911 Electric motor 1993-1993	Electric motor	1993-1993	1
6A	41 17 560 Connector housing	Connector housing		1
6B	48 59 450 Opening handle	Opening handle		1
6C	Cable Not as separate spare...	Cable	Not as separate spare...
6C	Cable Not as separate spare...	Cable	Not as separate spare...	1
7	95 03 079 30 525 830 Bracket LH	Bracket	LH	2
7	95 03 061 30 525 829 Bracket RH	Bracket	RH	2
8	43 04 929 Bracket 1993-1993	Bracket	1993-1993	1
8	90 87 552 Bracket 1993-1993	Bracket	1993-1993	1
10	95 64 881 Pull rod	Pull rod		4
11	95 05 058 30 525 872 Bushing	Bushing		4
12	95 02 741 Pull rod	Pull rod		1
14	95 08 094 30 525 968 Rivet	Rivet		8
18	79 69 223 Screw	Screw		2
19	92 55 845 Plastic rivet	Plastic rivet		2
20	79 61 634 Rivet 1993-1993	Rivet	1993-1993	2
	SwitchWiring and fuses door	SwitchWiring and fuses door

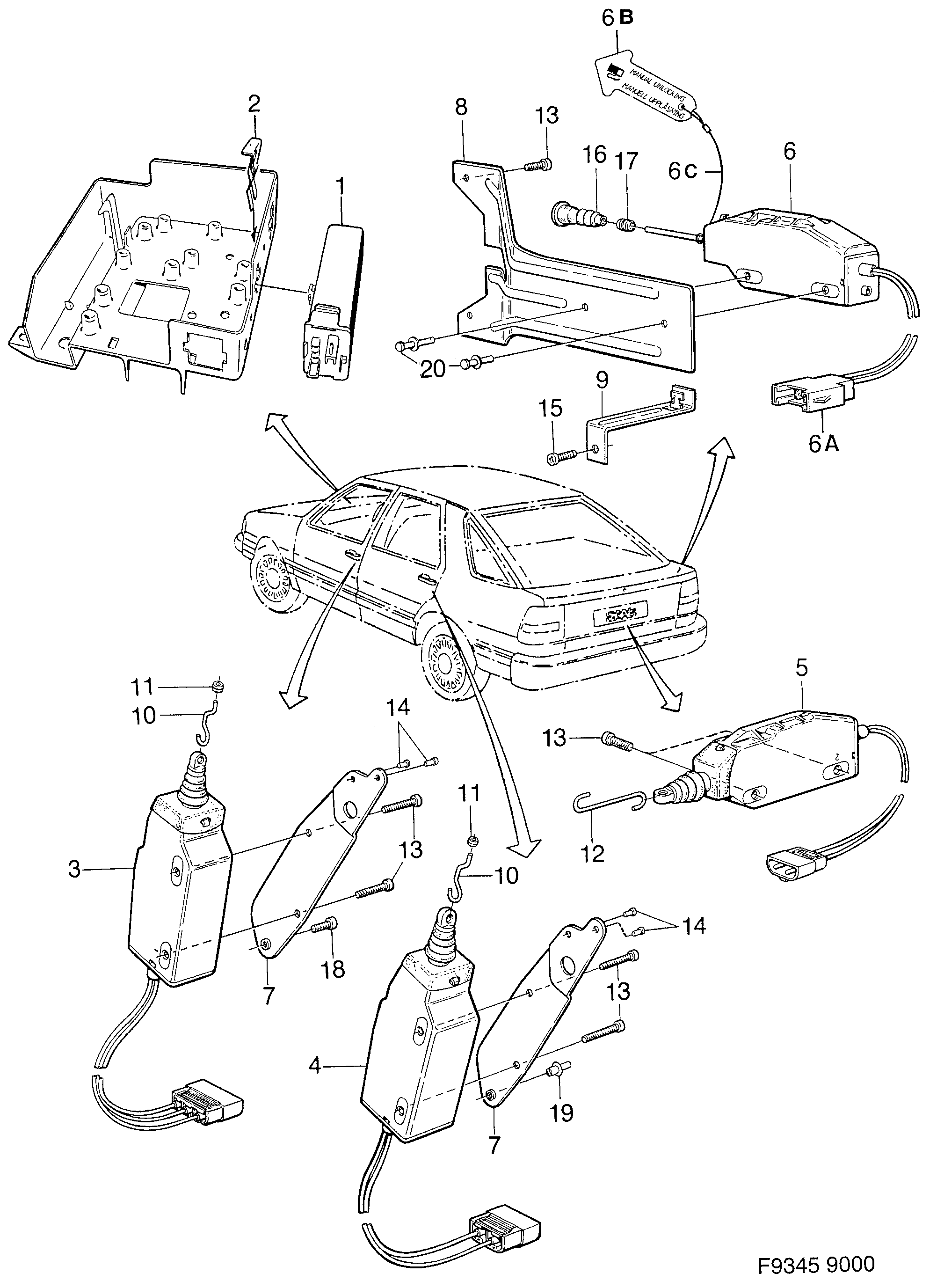

1160: Electrical, general - Electric equipment, other - Central lock
