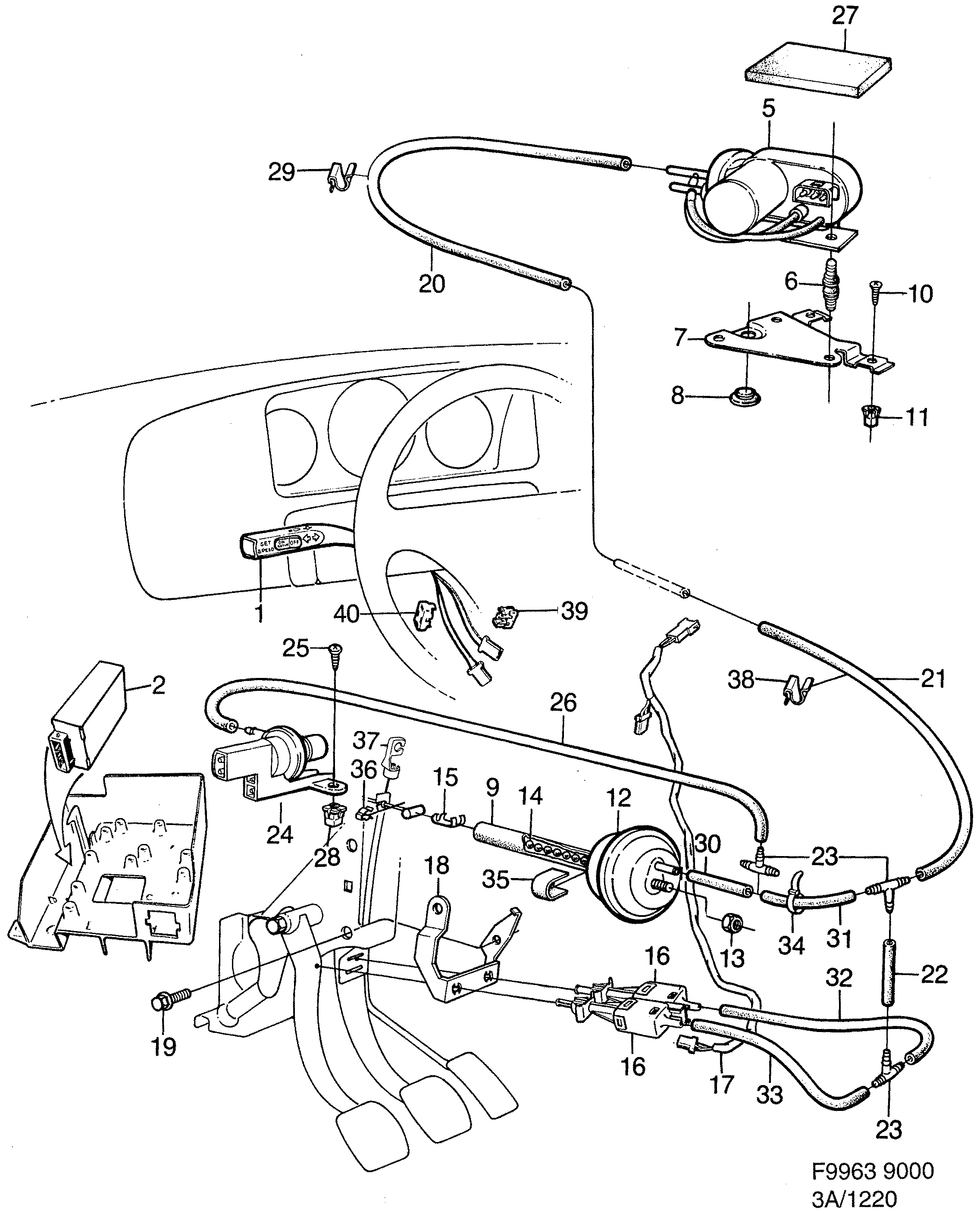

1220: Electrical, general - Electric equipment, other - Speed control system

(1990 - 1993) | For 9000 (1993)

100%

(N°1190)

Section 1220

(N°1250)

Pos.	Part No.	Description	Usage	Qty
1	SwitchWiring and fuses	SwitchWiring and fuses
2	41 08 650 Electronic unit 1992-1993	Electronic unit	1992-1993	1
5	85 87 024 Vacuum pump	Vacuum pump		1
6	95 55 194 Suspension	Suspension		3
7	95 17 798 Bracket	Bracket		1
8	82 06 096 Plug	Plug		1
9	91 24 223 Hose	Hose		1
10	79 22 891 Screw	Screw		2
11	79 75 261 Nut	Nut		2
12	95 12 302 Vacuum regulator	Vacuum regulator		1
13	91 66 406 11 900 440 Nut 1993-1993	Nut	1993-1993	1
14	40 61 917 Chain	Chain		1
15	85 87 099 Clamp -1993	Clamp	-1993	1
15	44 33 827 Clamp 1993-	Clamp	1993-	1
16	43 50 443 Contact 1991-1993	Contact	1991-1993	2
17	95 19 612 Cable harness 1991-1993, RHD	Cable harness	1991-1993, RHD	1
17	95 19 604 Cable harness 1991-1993, RHD • TURBO • TCS	Cable harness	1991-1993, RHD TURBO TCS	1
18	95 29 637 Bracket	Bracket		1
18	40 67 468 Bracket	Bracket		1
19	79 71 757 75 28 953 Screw	Screw		1
20	41 08 734 Hose L=1000 MM	Hose	L=1000 MM	1
21	95 66 423 Hose L=310 MM \| Without...	Hose	L=310 MM \| Without...	1
21	41 08 726 Hose L=310 MM	Hose	L=310 MM	1
21	41 08 718 Hose RHD • L=210 MM	Hose	RHD L=210 MM	1
22	85 90 689 95 66 423 Hose L=210 MM	Hose	L=210 MM	1
23	85 09 002 Tube	Tube		3
24	91 24 884 Vacuum switch	Vacuum switch		1
25	79 22 826 Screw	Screw		2
26	95 16 329 Hose LHD • L=340 MM	Hose	LHD L=340 MM	1
26	85 90 689 95 66 423 Hose RHD • L=210 MM	Hose	RHD L=210 MM	1
27	96 56 901 Spacer	Spacer		1
28	79 75 261 Nut	Nut		2
29	71 21 239 Clamp	Clamp		1
30	85 87 354 Hose L=45 MM	Hose	L=45 MM	1
30	95 66 381 Hose TURBO • L=45 MM	Hose	TURBO L=45 MM	1
31	85 87 354 Hose L=45 MM	Hose	L=45 MM	1
31	95 19 646 Hose RHD • L=650 MM	Hose	RHD L=650 MM	1
31	95 66 381 Hose RHD • TURBO • L=45 MM	Hose	RHD TURBO L=45 MM	1
31	95 66 464 Hose RHD • I • L=725 MM	Hose	RHD I L=725 MM	1
32	85 87 347 Hose L=75 MM	Hose	L=75 MM	1
32	95 66 399 Hose L=75 MM	Hose	L=75 MM	1
32	95 66 423 Hose L=310 MM	Hose	L=310 MM	1
32	95 19 638 Hose RHD • L=520 MM	Hose	RHD L=520 MM	1
32	95 66 472 Hose RHD • I • L=800 MM	Hose	RHD I L=800 MM	1
32	95 66 449 Hose RHD • L=520 MM	Hose	RHD L=520 MM	1
33	85 87 347 Hose L=75 MM	Hose	L=75 MM	1
33	95 66 407 Hose I, TURBO • L=120 MM	Hose	I, TURBO L=120 MM	1
33	95 66 399 Hose L=75 MM	Hose	L=75 MM	1
33	95 66 423 Hose L=310 MM	Hose	L=310 MM	1
34	73 98 944 Tensioning band	Tensioning band		1
34	73 98 977 Tensioning band RHD	Tensioning band	RHD	1
35	40 63 384 Chain coupling	Chain coupling		1
36	79 22 826 Screw	Screw		1
37	40 61 362 Protection	Protection		1
38	71 08 491 Clamp	Clamp		1
39	95 59 998 95 60 012 Manifold	Manifold		1
40	95 60 004 95 60 012 Manifold	Manifold		1
