Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1993?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1993. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	91 23 688 Spindle frame LHD	Spindle frame	LHD	1
1	40 60 497 Spindle frame RHD	Spindle frame	RHD	1
2	91 23 837 Retaining ring	Retaining ring		2
3	91 23 845 Washer	Washer		2
4	91 23 852 O-ring	O-ring		2
6	91 23 894 Washer	Washer		2
7	91 23 662 Electric motor LHD	Electric motor	LHD	1
7	40 60 489 Electric motor RHD	Electric motor	RHD	1
8	95 01 685 Contact housing 2-pin	Contact housing	2-pin	1
9	95 03 327 Contact housing 3-pin	Contact housing	3-pin	1
10	85 47 770 Connector	Connector		5
11	91 23 696 Crank arm LHD • LH	Crank arm	LHD LH	1
12	91 23 704 Crank arm LHD • RH	Crank arm	LHD RH	1
13	40 60 513 Crank arm RHD • LH	Crank arm	RHD LH	1
14	40 60 505 Crank arm RHD • RH	Crank arm	RHD RH	1
15	40 63 574 Bracket RHD	Bracket	RHD	1
16	73 99 900 Hexagon screw	Hexagon screw		4
17	40 63 814 Screw	Screw		3
18	79 77 929 11 900 451 Nut RHD	Nut	RHD	2
19	91 24 751 Bracket	Bracket		1
20	79 69 223 Screw	Screw		2
21	91 23 589 Rubber bushing LHD	Rubber bushing	LHD	2
22	91 23 639 Plug	Plug		1
23	91 23 597 Cover LHD • LH	Cover	LHD LH	1
23	91 23 605 Cover LHD • RH	Cover	LHD RH	1
23	91 23 613 Cover RHD	Cover	RHD	2
24	91 23 753 Bushing LHD	Bushing	LHD	2
25	91 23 761 Sleeve LHD	Sleeve	LHD	2
26	40 95 626 Wiper arm 1992-1993, LHD • LH	Wiper arm	1992-1993, LHD LH	1
26	40 95 634 Wiper arm 1992-1993, LHD • RH	Wiper arm	1992-1993, LHD RH	1
26	40 95 659 Wiper arm 1992-1993, RHD • LH	Wiper arm	1992-1993, RHD LH	1
26	40 95 642 Wiper arm 1992-1993, RHD • RH	Wiper arm	1992-1993, RHD RH	1
27	95 65 912 Cap nut	Cap nut		2
28	43 81 844 93 195 936 Wiper blade 1992-1993, LHD	Wiper blade	1992-1993, LHD	2
28	43 81 851 55 82 556 Wiper blade 1992-1993, RHD	Wiper blade	1992-1993, RHD	2
28	44 48 049 Wiper blade LHD • Synthetic rubber.	Wiper blade	LHD Synthetic rubber.	2
28	44 48 056 Wiper blade RHD • Synthetic rubber.	Wiper blade	RHD Synthetic rubber.	2
29	Profile Not as separate spare...	Profile	Not as separate spare...	2
30	40 92 748 Spoiler 1990-, LHD	Spoiler	1990-, LHD	1
30	40 93 035 Spoiler 1990-, RHD	Spoiler	1990-, RHD	1
31	40 92 755 Screw 1990-	Screw	1990-	2
32	40 92 763 Nut 1990-	Nut	1990-	2
	Profiled rubber kitKits	Profiled rubber kitKits			X
	Wiper blade kitKits LHD	Wiper blade kitKits LHD			X

Pos.	Part No.	Description	Usage	Qty
1	91 23 688 Spindle frame LHD	Spindle frame	LHD	1
1	40 60 497 Spindle frame RHD	Spindle frame	RHD	1
2	91 23 837 Retaining ring	Retaining ring		2
3	91 23 845 Washer	Washer		2
4	91 23 852 O-ring	O-ring		2
6	91 23 894 Washer	Washer		2
7	91 23 662 Electric motor LHD	Electric motor	LHD	1
7	40 60 489 Electric motor RHD	Electric motor	RHD	1
8	95 01 685 Contact housing 2-pin	Contact housing	2-pin	1
9	95 03 327 Contact housing 3-pin	Contact housing	3-pin	1
10	85 47 770 Connector	Connector		5
11	91 23 696 Crank arm LHD • LH	Crank arm	LHD LH	1
12	91 23 704 Crank arm LHD • RH	Crank arm	LHD RH	1
13	40 60 513 Crank arm RHD • LH	Crank arm	RHD LH	1
14	40 60 505 Crank arm RHD • RH	Crank arm	RHD RH	1
15	40 63 574 Bracket RHD	Bracket	RHD	1
16	73 99 900 Hexagon screw	Hexagon screw		4
17	40 63 814 Screw	Screw		3
18	79 77 929 11 900 451 Nut RHD	Nut	RHD	2
19	91 24 751 Bracket	Bracket		1
20	79 69 223 Screw	Screw		2
21	91 23 589 Rubber bushing LHD	Rubber bushing	LHD	2
22	91 23 639 Plug	Plug		1
23	91 23 597 Cover LHD • LH	Cover	LHD LH	1
23	91 23 605 Cover LHD • RH	Cover	LHD RH	1
23	91 23 613 Cover RHD	Cover	RHD	2
24	91 23 753 Bushing LHD	Bushing	LHD	2
25	91 23 761 Sleeve LHD	Sleeve	LHD	2
26	40 95 626 Wiper arm 1992-1993, LHD • LH	Wiper arm	1992-1993, LHD LH	1
26	40 95 634 Wiper arm 1992-1993, LHD • RH	Wiper arm	1992-1993, LHD RH	1
26	40 95 659 Wiper arm 1992-1993, RHD • LH	Wiper arm	1992-1993, RHD LH	1
26	40 95 642 Wiper arm 1992-1993, RHD • RH	Wiper arm	1992-1993, RHD RH	1
27	95 65 912 Cap nut	Cap nut		2
28	43 81 844 93 195 936 Wiper blade 1992-1993, LHD	Wiper blade	1992-1993, LHD	2
28	43 81 851 55 82 556 Wiper blade 1992-1993, RHD	Wiper blade	1992-1993, RHD	2
28	44 48 049 Wiper blade LHD • Synthetic rubber.	Wiper blade	LHD Synthetic rubber.	2
28	44 48 056 Wiper blade RHD • Synthetic rubber.	Wiper blade	RHD Synthetic rubber.	2
29	Profile Not as separate spare...	Profile	Not as separate spare...	2
30	40 92 748 Spoiler 1990-, LHD	Spoiler	1990-, LHD	1
30	40 93 035 Spoiler 1990-, RHD	Spoiler	1990-, RHD	1
31	40 92 755 Screw 1990-	Screw	1990-	2
32	40 92 763 Nut 1990-	Nut	1990-	2
	Profiled rubber kitKits	Profiled rubber kitKits			X
	Wiper blade kitKits LHD	Wiper blade kitKits LHD			X

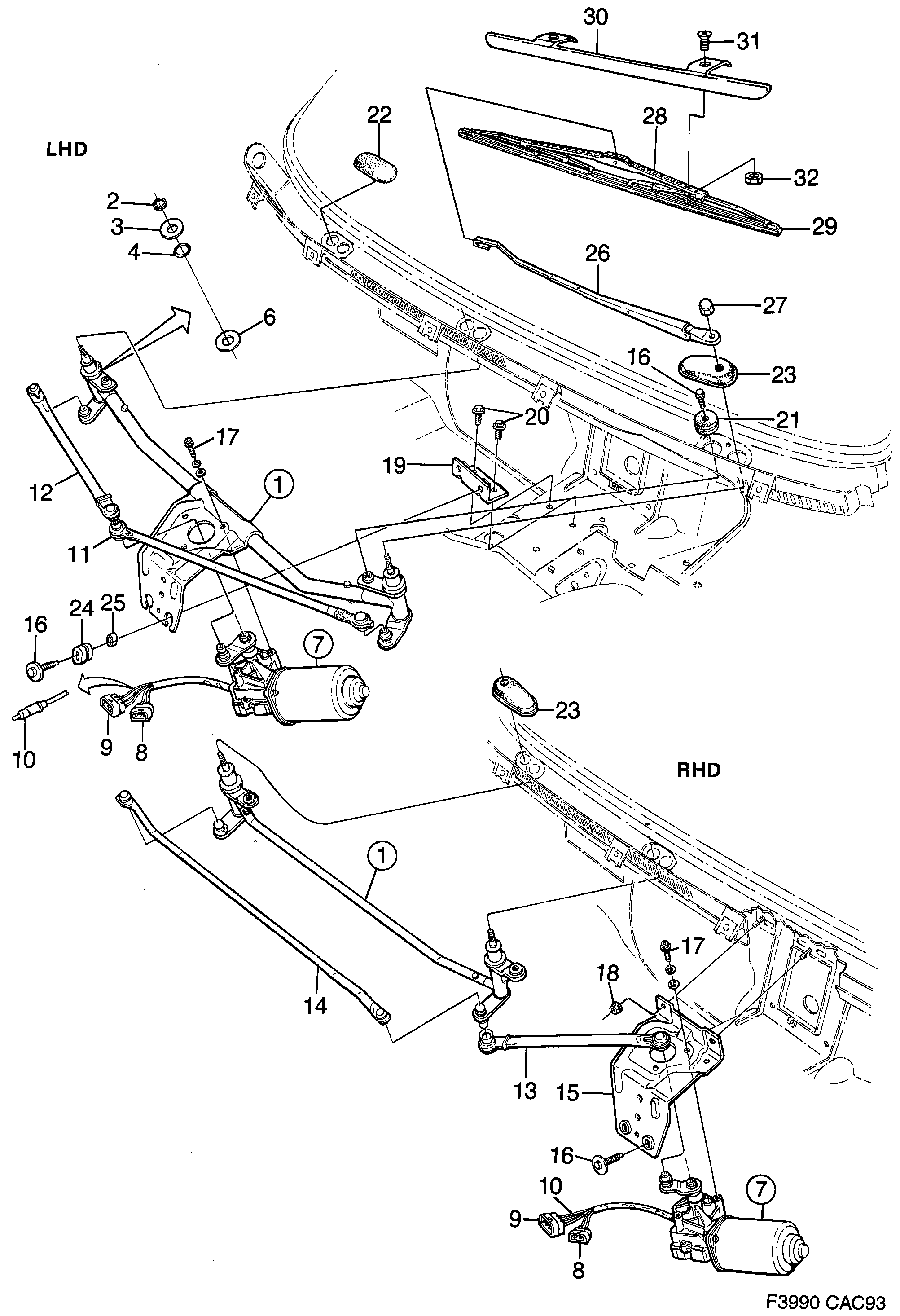

980: Electrical, general - Electric equipment, other - Windscreen wiper
