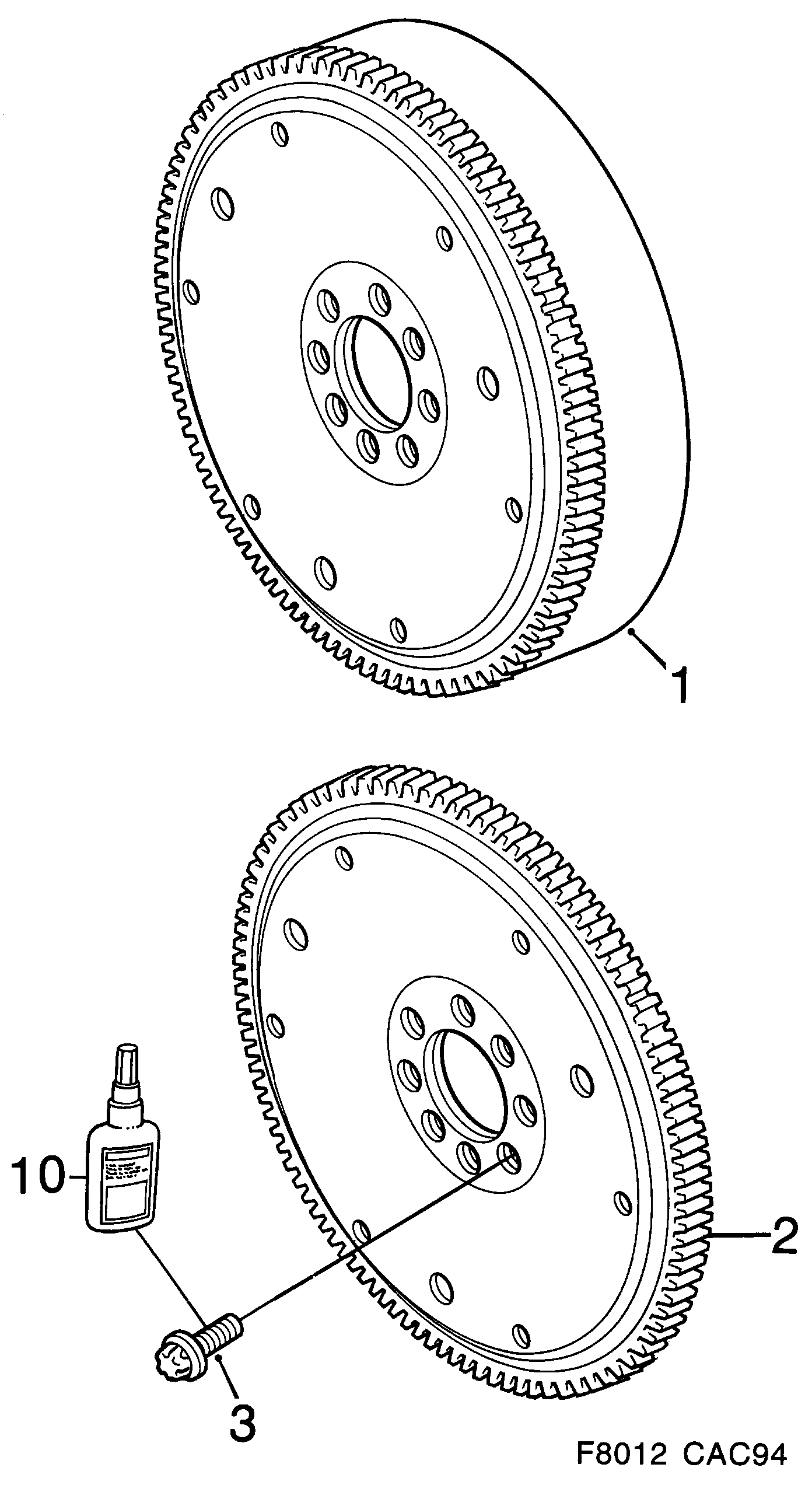

Pos.	Part No.	Description	Usage	Qty
1	44 40 210 Flywheel 41	Flywheel	41	1
2	43 84 244 53 36 367 Companion flange 41	Companion flange	41	1
3	44 40 251 91 26 505 Screw 41	Screw	41	8
10	74 96 292 Nut lock 41 • 50 ML \| strong...	Nut lock	41 50 ML \| strong...	X

Pos.	Part No.	Description	Usage	Qty
1	44 40 210 Flywheel 41	Flywheel	41	1
2	43 84 244 53 36 367 Companion flange 41	Companion flange	41	1
3	44 40 251 91 26 505 Screw 41	Screw	41	8
10	74 96 292 Nut lock 41 • 50 ML \| strong...	Nut lock	41 50 ML \| strong...	X

570: Engine - Short block - Flywheel - Universal joint driver
