Question 1

Where to find the exploded diagram for Engine control on my Saab 9000 1995?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Engine control on Saab 9000 1995. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Engine control?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Engine control?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Engine control, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Engine control suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

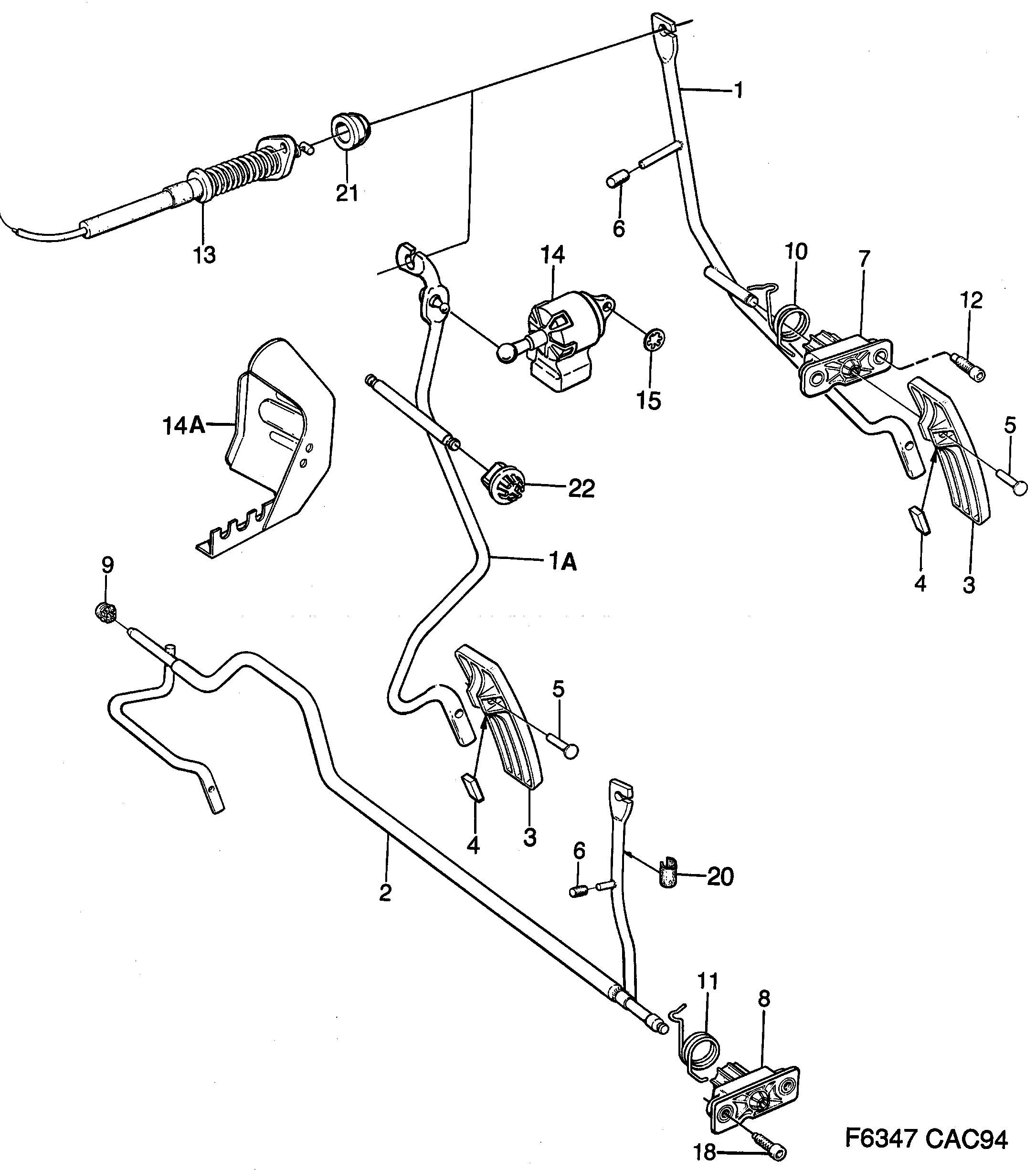

Pos.	Part No.	Description	Usage	Qty
1	89 67 903 Pedal LHD	Pedal	LHD	1
1A	40 00 386 Accelerator arm LHD • TCS	Accelerator arm	LHD TCS	1
2	89 72 176 Pedal RHD	Pedal	RHD	1
2	41 05 276 Accelerator arm RHD • TCS	Accelerator arm	RHD TCS	1
3	46 45 586 Pedal plate 1994-	Pedal plate	1994-	1
4	71 83 973 Spacer	Spacer		1
5	79 58 770 Rivet	Rivet		1
6	89 50 396 Damper	Damper		1
7	89 60 924 Bearing centre	Bearing centre		1
8	89 60 924 Bearing centre RHD	Bearing centre	RHD	1
9	89 57 565 Plastic bushing RHD	Plastic bushing	RHD	1
10	89 60 080 Spring	Spring		1
10	89 65 949 Spring	Spring		1
11	89 60 080 Spring RHD • WITHOUT TCS	Spring	RHD WITHOUT TCS	1
12	89 61 195 Screw	Screw		2
13	Throttle control cableEngine control 4-CYL	Throttle control cableEngine control 4-CYL			1
13	Throttle control cableEngine control 6-CYL	Throttle control cableEngine control 6-CYL			1
14	43 01 685 Pedal sensor 1994-1995 • TCS	Pedal sensor	1994-1995 TCS	1
14A	44 26 532 Protection RHD • TCS	Protection	RHD TCS	1
15	40 15 574 Lock ring 1994-1995 • TCS	Lock ring	1994-1995 TCS	1
18	89 61 195 Screw RHD	Screw	RHD	2
20	41 90 021 Damper RHD • TCS	Damper	RHD TCS	1
21	75 36 501 Bushing	Bushing		1
22	89 33 392 Plastic bushing TCS	Plastic bushing	TCS	2

Pos.	Part No.	Description	Usage	Qty
1	89 67 903 Pedal LHD	Pedal	LHD	1
1A	40 00 386 Accelerator arm LHD • TCS	Accelerator arm	LHD TCS	1
2	89 72 176 Pedal RHD	Pedal	RHD	1
2	41 05 276 Accelerator arm RHD • TCS	Accelerator arm	RHD TCS	1
3	46 45 586 Pedal plate 1994-	Pedal plate	1994-	1
4	71 83 973 Spacer	Spacer		1
5	79 58 770 Rivet	Rivet		1
6	89 50 396 Damper	Damper		1
7	89 60 924 Bearing centre	Bearing centre		1
8	89 60 924 Bearing centre RHD	Bearing centre	RHD	1
9	89 57 565 Plastic bushing RHD	Plastic bushing	RHD	1
10	89 60 080 Spring	Spring		1
10	89 65 949 Spring	Spring		1
11	89 60 080 Spring RHD • WITHOUT TCS	Spring	RHD WITHOUT TCS	1
12	89 61 195 Screw	Screw		2
13	Throttle control cableEngine control 4-CYL	Throttle control cableEngine control 4-CYL			1
13	Throttle control cableEngine control 6-CYL	Throttle control cableEngine control 6-CYL			1
14	43 01 685 Pedal sensor 1994-1995 • TCS	Pedal sensor	1994-1995 TCS	1
14A	44 26 532 Protection RHD • TCS	Protection	RHD TCS	1
15	40 15 574 Lock ring 1994-1995 • TCS	Lock ring	1994-1995 TCS	1
18	89 61 195 Screw RHD	Screw	RHD	2
20	41 90 021 Damper RHD • TCS	Damper	RHD TCS	1
21	75 36 501 Bushing	Bushing		1
22	89 33 392 Plastic bushing TCS	Plastic bushing	TCS	2

2160: Engine - Engine control - Accelerator arm
