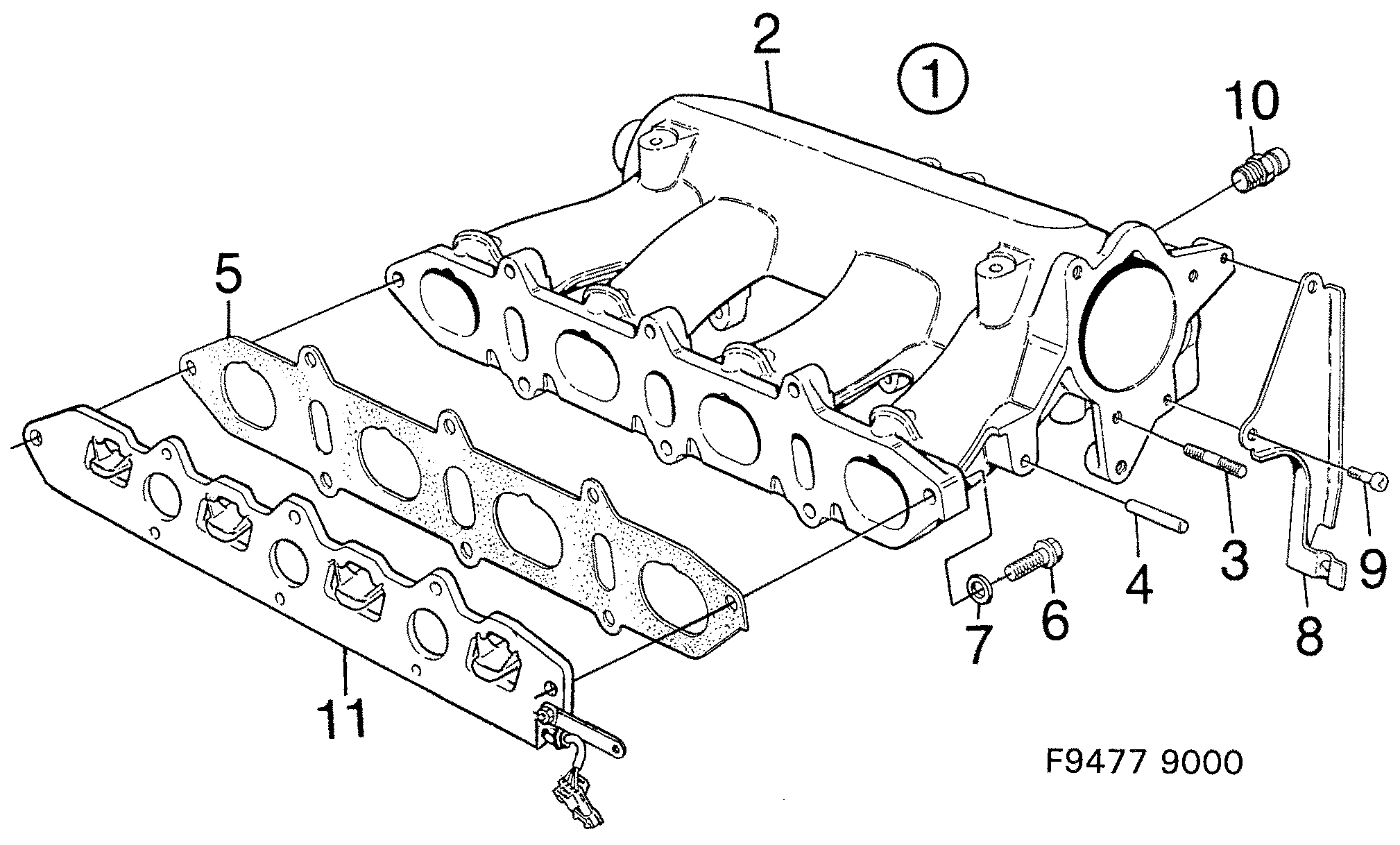

1170: Engine - Intake and exhaust system - Intake manifold
(1994 - 1998 | TURBO) | For 9000 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 77 148 Intake manifold 44 | 1 | |
| 2 | 91 77 924 Intake manifold 44 | 1 | |
| 3 | 80 05 910 Stud 44 | 3 | |
| 4 | 80 49 827 Spring pin 44 | 1 | |
| 5 | 91 38 884 Gasket 44 | 1 | |
| 6 | 40 87 805 11 900 368 Screw -1997 • 44 | 8 | |
| 6 | 79 78 224 11 900 368 Screw 1997- • 44 | 8 | |
| 7 | 80 29 985 92 153 033 Washer -1997 • 44 | 8 | |
| 8 | 91 68 915 Bracket -1997 • 44 | 1 | |
| 8 | 91 81 926 Bracket 1997- • 44 | 1 | |
| 9 | 79 78 091 11 900 353 Screw 44 | 2 | |
| 10 | 43 46 508 Nipple 44 | 1 | |
| 11 | 91 66 000 30 556 715 Intake air heat plate -1997 • 44 • For cars with intake... | 1 |
