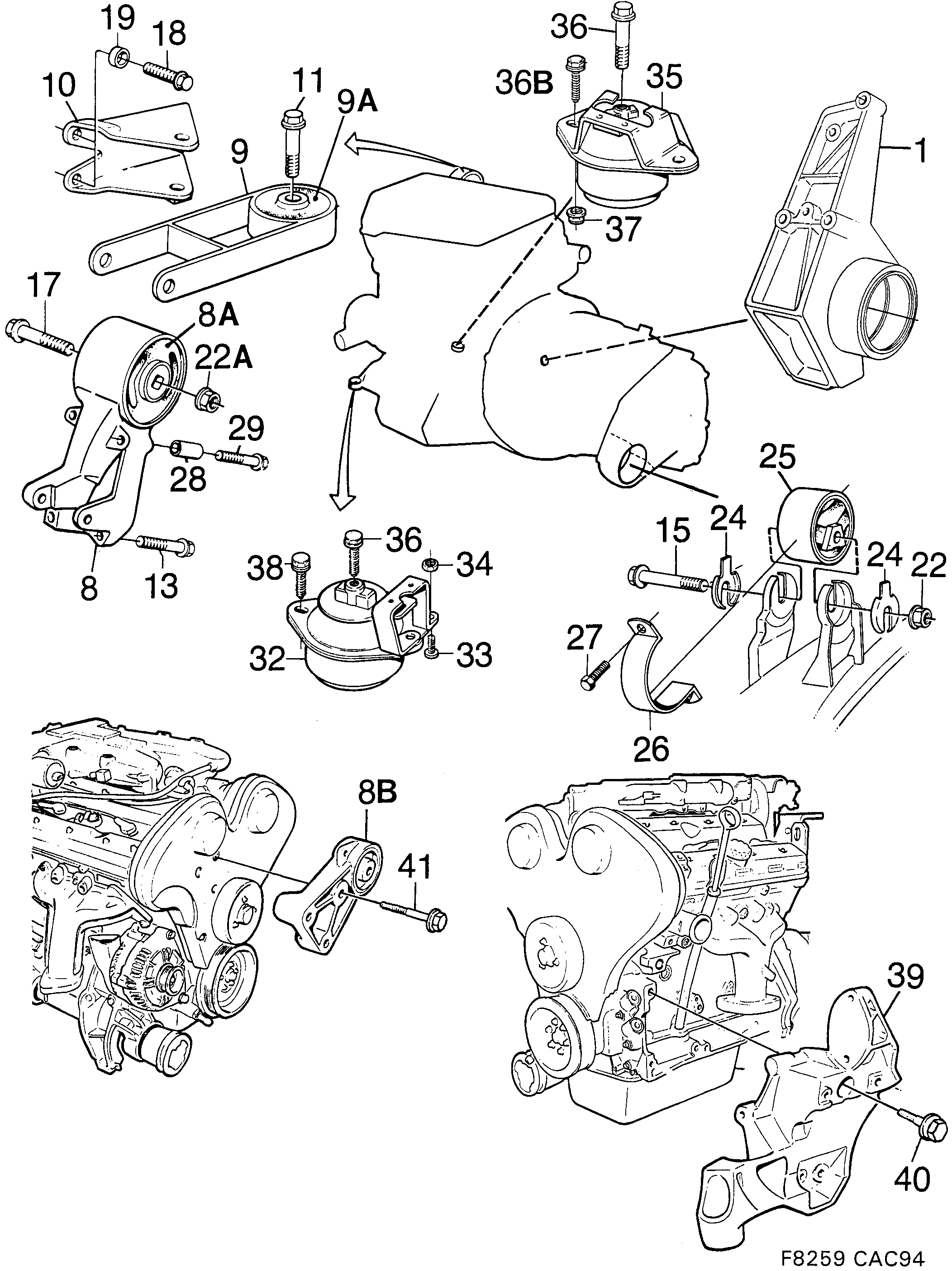

120: Engine - Engine mounting
(1994 - 1998) | For 9000 (1997)
100%
Section 120
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | Bearing bracketGearbox control, manual | ||
| 8 | 43 58 818 Engine anchorage 4-CYL | 1 | |
| 8A | 75 76 333 Rubber cushion 4-CYL | 1 | |
| 8B | 43 58 313 Engine anchorage 6-CYL | 1 | |
| 9 | 75 99 913 Torque rod 4-CYL | 1 | |
| 9 | 41 65 478 Torque rod 6-CYL | 1 | |
| 9A | 75 76 333 Rubber cushion 4-CYL | 1 | |
| 10 | 75 73 413 Bracket 4-CYL | 1 | |
| 10 | 41 65 411 Body bracket 6-CYL | 1 | |
| 11 | 79 82 572 92 150 036 Screw | 1 | |
| 13 | 79 78 216 11 900 367 Hexagon screw | 4 | |
| 15 | 79 73 571 Screw | 1 | |
| 17 | 79 74 777 Screw | 1 | |
| 18 | 80 82 943 Screw | 3 | |
| 19 | 75 77 893 Spacer | 3 | |
| 22 | 79 67 979 Nut | 2 | |
| 22A | 79 84 776 92 150 135 Flange nut | 1 | |
| 24 | 93 19 294 Washer | 2 | |
| 25 | 41 65 312 Vibration damper 1995-1998 | 1 | |
| 26 | 75 51 328 Cap | 1 | |
| 27 | 79 78 208 92 150 014 Screw 1994- | 2 | |
| 28 | 75 36 857 Spacer For cars with parted... | 1 | |
| 29 | 79 78 257 92 150 019 Screw | 1 | |
| 32 | 41 65 494 Vibration damper 1995-1998 | 1 | |
| 33 | 75 51 385 Screw | 1 | |
| 34 | 79 71 658 11 900 428 Nut | 1 | |
| 35 | 41 65 510 Vibration damper 1995-1998 | 1 | |
| 36 | 79 82 127 Screw | 2 | |
| 36B | 79 82 721 Screw | 3 | |
| 37 | 79 69 306 Lock nut | 3 | |
| 38 | 79 82 721 Screw | 2 | |
| 39 | 41 65 254 Motor bracket 6-CYL | 1 | |
| 40 | 79 82 549 92 151 521 Screw 6-CYL | 3 | |
| 41 | 79 82 598 Hexagon screw 6-CYL | 3 |
