Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9000 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9000 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	44 42 190 Intake manifold 41	Intake manifold	41	1
2	43 46 508 Nipple 41	Nipple	41	1
2A	46 21 181 Nipple 41	Nipple	41	1
3	47 73 495 91 18 135 O-ring kit 41	O-ring kit	41	1
3	46 21 256 91 18 135 O-ring 41	O-ring	41	6
4	46 21 124 Intake manifold 41	Intake manifold	41	1
5	46 21 272 90 467 004 Flange 41	Flange	41	1
6	45 25 580 Cover plate 41	Cover plate	41	1
7	46 21 231 Gasket 41	Gasket	41	1
8	79 78 091 11 900 353 Screw 41	Screw	41	3
9	41 64 893 Stud 41	Stud	41	4
10	43 47 340 11 093 792 Screw 41	Screw	41	4
11	46 21 264 90 467 617 Cover 41	Cover	41	4
12	46 20 530 Flap 41	Flap	41	1
13	45 02 274 11 093 872 Screw 41	Screw	41	2
14	43 94 078 90 466 214 Secondary air injection control valve 41	Secondary air injection control valve	41	1
15	45 03 405 11 093 881 Screw 41	Screw	41	2
16	43 47 282 93 175 509 Screw 41	Screw	41	12
17	46 21 223 Hose 41	Hose	41	1
18	45 03 439 Hose clamp 41 • Ø 20-32 MM	Hose clamp	41 Ø 20-32 MM	2
20	41 64 935 Pipe 41	Pipe	41	1
21	44 40 939 Throttle valve, shutter 41	Throttle valve, shutter	41	1
22	79 78 109 11 900 354 Screw 41	Screw	41	6
23	43 74 245 Vacuum box 41	Vacuum box	41	1
24	43 94 078 90 466 214 Secondary air injection control valve 41	Secondary air injection control valve	41	1
25	79 78 372 11 900 378 Screw 41	Screw	41	2
26	79 79 610 92 153 215 Screw 41	Screw	41	2
27	91 36 243 Vacuum hose 41 • L=175MM \| Sold in...	Vacuum hose	41 L=175MM \| Sold in...
28	91 36 243 Vacuum hose 41 • L=90MM \| Sold in...	Vacuum hose	41 L=90MM \| Sold in...
29	91 36 243 Vacuum hose 41 • L=30MM \| Sold in...	Vacuum hose	41 L=30MM \| Sold in...
30	83 66 791 12 791 937 Pipe 41	Pipe	41	2
31	43 91 314 Hose 41	Hose	41	2
32	43 47 019 Hose clamp 41	Hose clamp	41	4
33	45 25 952 90 490 068 Adapter 41	Adapter	41	1
34	44 42 240 90 490 068 Adapter 41	Adapter	41	1
35	46 21 215 90 500 983 O-ring 41	O-ring	41	2
36	46 21 199 90 467 543 Seal 41	Seal	41	1
37	47 70 426 90 501 653 Gasket 41	Gasket	41	3
38	47 70 418 90 501 652 Gasket 41	Gasket	41	2
40	74 96 268 Nut lock 41 • 50 ML \| normal...	Nut lock	41 50 ML \| normal...	X
	91 36 243 Vacuum hose 41 • L=5000 MM \| Sold...	Vacuum hose	41 L=5000 MM \| Sold...	X

Pos.	Part No.	Description	Usage	Qty
1	44 42 190 Intake manifold 41	Intake manifold	41	1
2	43 46 508 Nipple 41	Nipple	41	1
2A	46 21 181 Nipple 41	Nipple	41	1
3	47 73 495 91 18 135 O-ring kit 41	O-ring kit	41	1
3	46 21 256 91 18 135 O-ring 41	O-ring	41	6
4	46 21 124 Intake manifold 41	Intake manifold	41	1
5	46 21 272 90 467 004 Flange 41	Flange	41	1
6	45 25 580 Cover plate 41	Cover plate	41	1
7	46 21 231 Gasket 41	Gasket	41	1
8	79 78 091 11 900 353 Screw 41	Screw	41	3
9	41 64 893 Stud 41	Stud	41	4
10	43 47 340 11 093 792 Screw 41	Screw	41	4
11	46 21 264 90 467 617 Cover 41	Cover	41	4
12	46 20 530 Flap 41	Flap	41	1
13	45 02 274 11 093 872 Screw 41	Screw	41	2
14	43 94 078 90 466 214 Secondary air injection control valve 41	Secondary air injection control valve	41	1
15	45 03 405 11 093 881 Screw 41	Screw	41	2
16	43 47 282 93 175 509 Screw 41	Screw	41	12
17	46 21 223 Hose 41	Hose	41	1
18	45 03 439 Hose clamp 41 • Ø 20-32 MM	Hose clamp	41 Ø 20-32 MM	2
20	41 64 935 Pipe 41	Pipe	41	1
21	44 40 939 Throttle valve, shutter 41	Throttle valve, shutter	41	1
22	79 78 109 11 900 354 Screw 41	Screw	41	6
23	43 74 245 Vacuum box 41	Vacuum box	41	1
24	43 94 078 90 466 214 Secondary air injection control valve 41	Secondary air injection control valve	41	1
25	79 78 372 11 900 378 Screw 41	Screw	41	2
26	79 79 610 92 153 215 Screw 41	Screw	41	2
27	91 36 243 Vacuum hose 41 • L=175MM \| Sold in...	Vacuum hose	41 L=175MM \| Sold in...
28	91 36 243 Vacuum hose 41 • L=90MM \| Sold in...	Vacuum hose	41 L=90MM \| Sold in...
29	91 36 243 Vacuum hose 41 • L=30MM \| Sold in...	Vacuum hose	41 L=30MM \| Sold in...
30	83 66 791 12 791 937 Pipe 41	Pipe	41	2
31	43 91 314 Hose 41	Hose	41	2
32	43 47 019 Hose clamp 41	Hose clamp	41	4
33	45 25 952 90 490 068 Adapter 41	Adapter	41	1
34	44 42 240 90 490 068 Adapter 41	Adapter	41	1
35	46 21 215 90 500 983 O-ring 41	O-ring	41	2
36	46 21 199 90 467 543 Seal 41	Seal	41	1
37	47 70 426 90 501 653 Gasket 41	Gasket	41	3
38	47 70 418 90 501 652 Gasket 41	Gasket	41	2
40	74 96 268 Nut lock 41 • 50 ML \| normal...	Nut lock	41 50 ML \| normal...	X
	91 36 243 Vacuum hose 41 • L=5000 MM \| Sold...	Vacuum hose	41 L=5000 MM \| Sold...	X

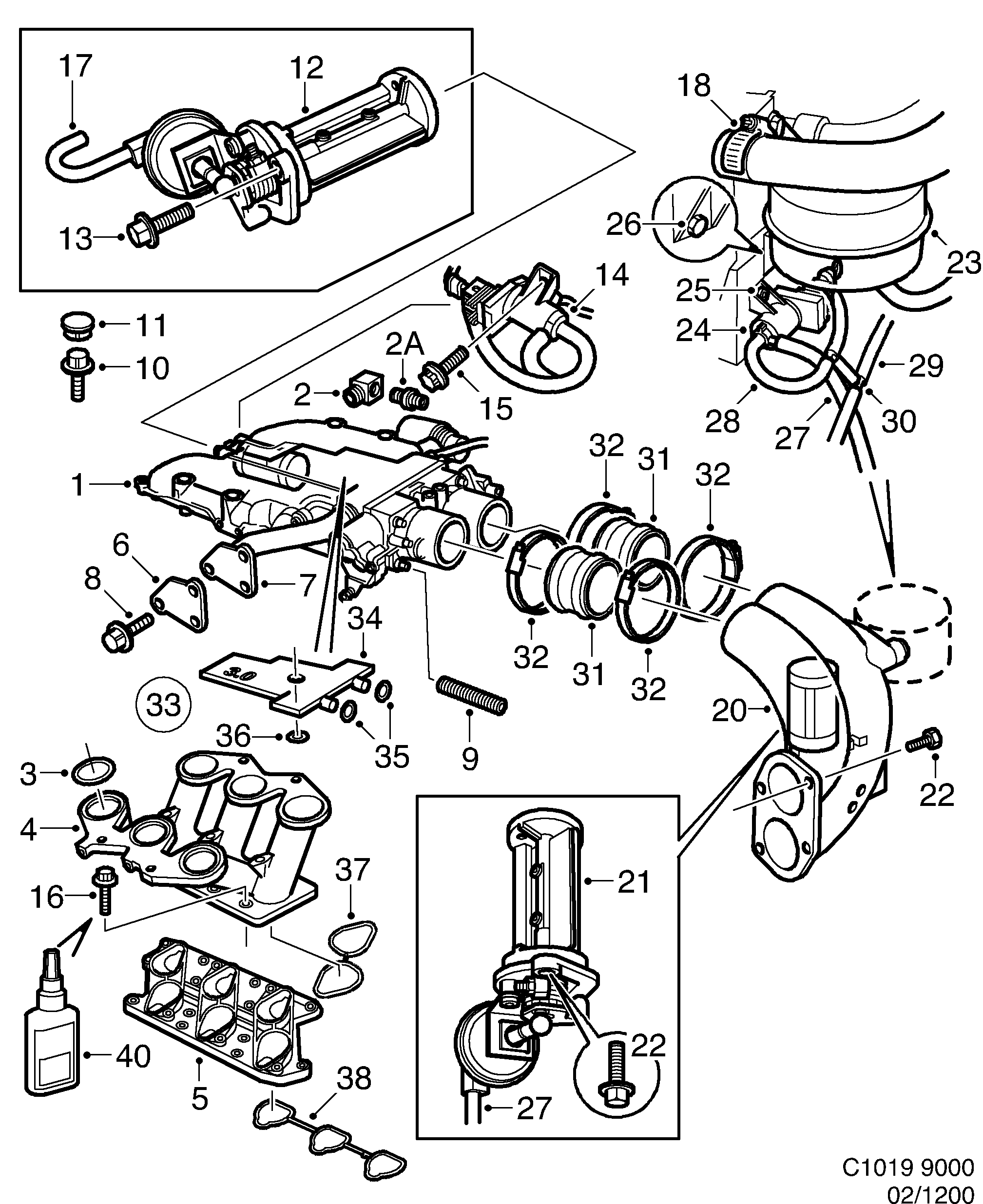

1200: Engine - Intake and exhaust system - Intake manifold - 6-cylinder
