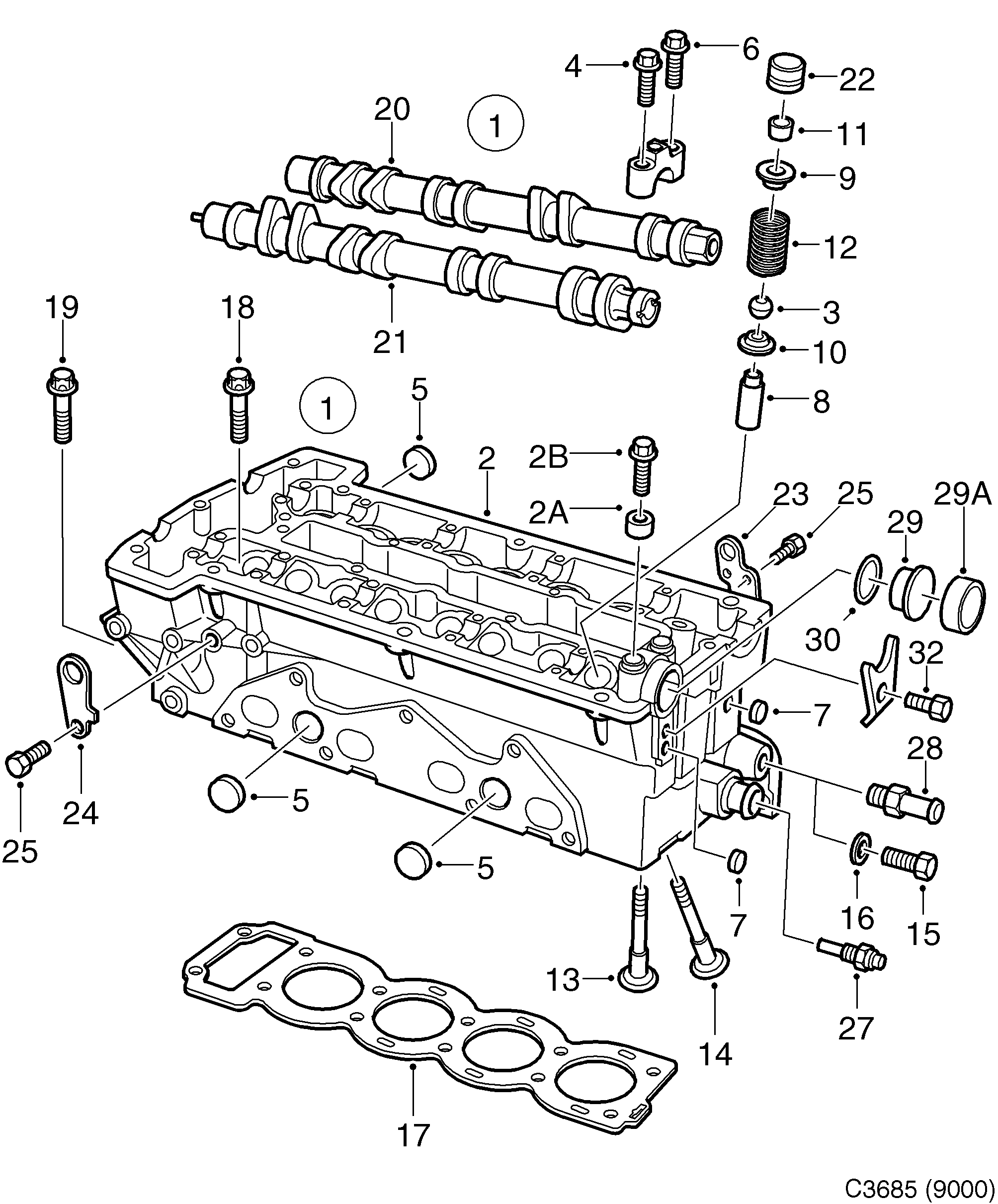

150: Engine - Short block - Cylinder head
(1994 - 1998 | PETROL) | For 9000 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 48 693 91 85 471 Cylinder head 1995-1998 • PETROL • Also available as exchange... | 1 | |
| 1 | 91 82 304 91 85 471 Cylinder head 1997- • PETROL | 1 | |
| 2 | 91 47 927 Cylinder head -1997 • PETROL | 1 | |
| 2 | 91 85 208 95 49 379 Cylinder head 1997- • PETROL | 1 | |
| 2A | 75 04 566 Guide sleeve PETROL | 2 | |
| 2B | 75 04 178 92 151 833 Screw PETROL | 2 | |
| 3 | 75 00 713 Seal PETROL | 16 | |
| 4 | 75 85 847 55 559 477 Screw PETROL | 8 | |
| 5 | 75 88 320 Sealing washer PETROL | 2 | |
| 6 | 40 87 805 11 900 368 Screw 1995-1998 • PETROL | 12 | |
| 7 | 81 23 143 49 40 466 Plug 1994-1997 • PETROL | 3 | |
| 8 | 91 85 612 Valve guide 1997-1998 • PETROL | 16 | |
| 9 | 75 01 349 Washer PETROL | 16 | |
| 10 | 75 05 134 Washer PETROL | 16 | |
| 11 | 75 15 547 Valve cone PETROL | 32 | |
| 12 | 91 29 651 Spring PETROL | 16 | |
| 13 | 91 65 598 Exhaust valve PETROL • Exhaust. | 8 | |
| 14 | 91 65 580 30 546 916 Inlet valve PETROL • Intake. | 8 | |
| 15 | 81 23 721 75 63 042 Plug PETROL | 1 | |
| 16 | 83 26 712 41 61 162 Seal PETROL | 1 | |
| 17 | 91 79 235 91 85 695 Gasket 1994-1997 • PETROL | 1 | |
| 18 | 59 55 794 Screw PETROL | 10 | |
| 19 | 79 70 015 Screw PETROL | 2 | |
| 20 | 30 551 897 Camshaft PETROL • Intake. | 1 | |
| 20 | 91 45 657 30 551 899 Camshaft B234I • Intake. | 1 | |
| 21 | 91 45 640 Camshaft PETROL • Exhaust. | 1 | |
| 21 | 91 45 665 30 551 900 Camshaft B234I • Exhaust. | 1 | |
| 22 | 91 69 566 55 557 388 Tappet 1997-1997 • PETROL | 16 | |
| 23 | 74 81 757 Lifting eye PETROL | 1 | |
| 24 | 91 37 472 Lifting eye PETROL | 1 | |
| 25 | 79 78 190 55 566 034 Screw 1996-1998 • PETROL | 3 | |
| 27 | 91 82 270 90 490 477 Engine coolant temperature sensor 1996-1998 • PETROL • 1/8'' | 1 | |
| 27 | 91 82 205 Engine coolant temperature sensor 1997- • PETROL • M12 | 1 | |
| 28 | 74 86 806 Nipple I | 1 | |
| 29A | 91 35 211 Sealing plug 1996-1998 • PETROL | 1 | |
| 30 | 91 76 470 Sealing ring 1995-1998 • PETROL | 1 | |
88 22 033 | X | ||
88 22 587 | X |
