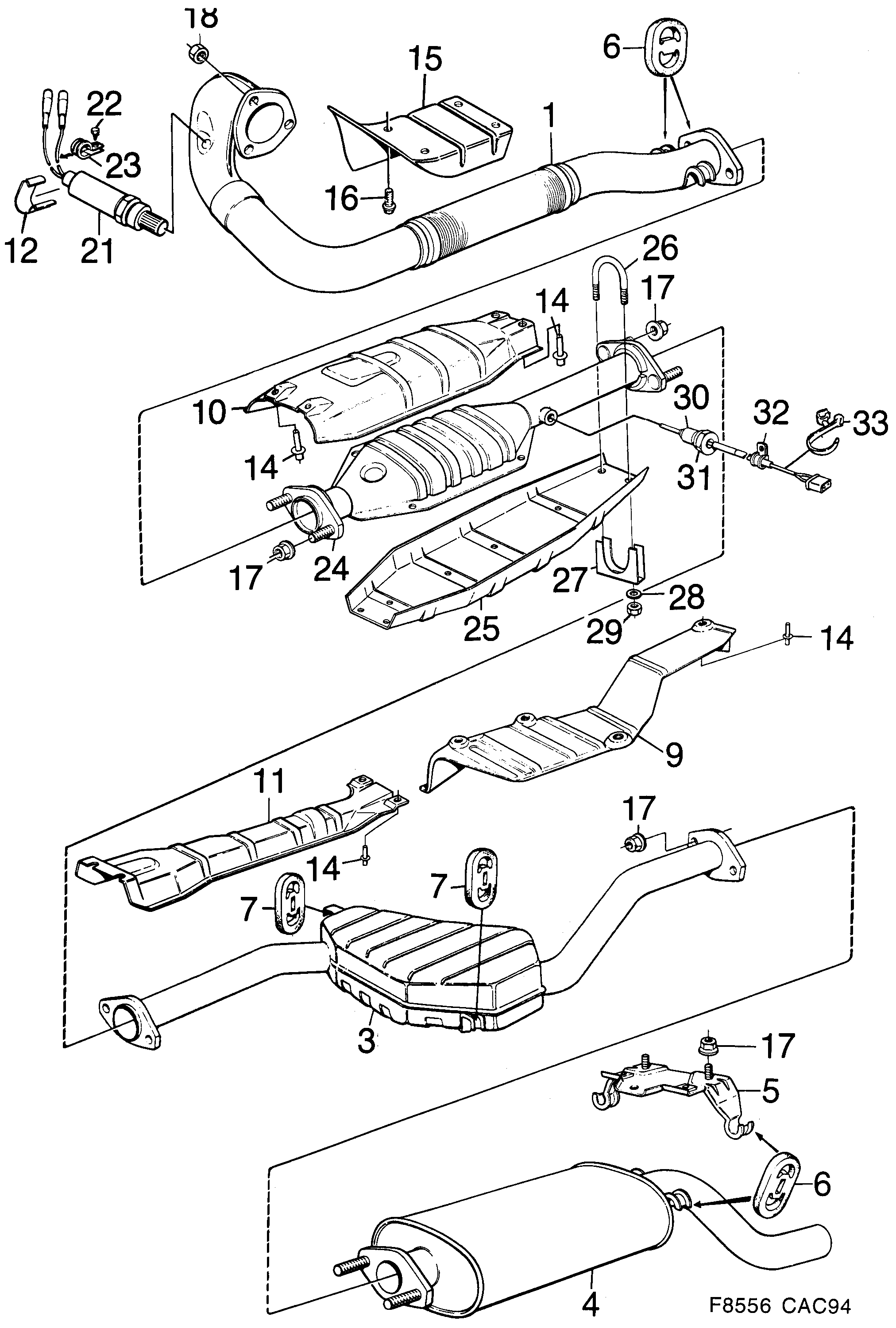

1590: Engine - Intake and exhaust system - Exhaust system
(1994 - 1997 | TURBO) | For 9000 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
Exhaust systemIntake and exhaust system B234 • Market: SE, US | |||
| 1 | 41 63 945 54 66 826 Exhaust pipe 44 | 1 | |
| 1 | 45 27 545 54 66 834 Exhaust pipe 44 | 1 | |
| 3 | 40 18 867 Silencer 44 | 1 | |
| 3 | 43 93 898 54 66 867 Silencer 44 | 1 | |
| 4 | 45 28 600 54 66 883 Silencer 1997-1997 • 44 | 1 | |
| 4 | 45 28 618 54 67 121 Silencer 1997-1997 • 44 | 1 | |
| 4 | 45 28 626 54 67 154 Silencer 1997-1997 • 44 | 1 | |
| 5 | 89 77 936 Hook 44 | 1 | |
| 6 | 93 92 465 Rubber mounting 44 | 4 | |
| 7 | 93 92 465 Rubber mounting 44 | 2 | |
| 9 | 40 22 505 Heat shield 44 | 1 | |
| 10 | 40 22 588 Heat shield 44 | 1 | |
| 11 | 40 22 596 Heat shield 44 | 1 | |
| 12 | 41 58 762 Clip B234 | 1 | |
| 12 | 79 33 443 Clip 1996-1997 • B234 | 2 | |
| 14 | 93 93 968 Rivet 44 | 12 | |
| 14 | 75 91 480 Rivet 44 • Alternative to 93 93... | 12 | |
| 15 | 75 64 321 Heat shield B204 | 1 | |
| 15 | 91 12 780 30 520 365 Heat shield B234 | 1 | |
| 16 | 81 25 130 Screw 44 | 4 | |
| 17 | 79 67 953 11 900 429 Nut 44 | 8 | |
| 18 | 75 19 432 92 152 032 Nut 44 | 3 | |
| 21 | 46 60 494 Front heated oxygen sensor 1996-1997 • B234 | 1 | |
| 21 | 46 60 445 Heated oxygen sensor 1996-1997 • B234 • Lead resistant | 1 | |
| 22 | 79 71 757 75 28 953 Screw 44 | 2 | |
| 23 | 73 98 803 Clamp 1996-1997 • 44 | 1 | |
| 24 | 47 50 030 Three way catalytic converter 1996-1997 • 44 | 1 | |
| 24 | 47 50 048 Three way catalytic converter 1996-1997 • 44 • With heat shield mounted... | 1 | |
| 25 | 40 24 279 Heat shield 44 | 1 | |
| 26 | 40 24 295 Brace 44 | 2 | |
| 27 | 40 24 303 Yoke bracket 44 | 2 | |
| 28 | 91 66 372 32 000 432 Washer 44 | 4 | |
| 29 | 79 65 767 55 557 005 Lock nut 44 | 4 | |
| 30 | 48 12 871 Sensor 1997-1997 • 44 | 1 | |
| 31 | 40 62 329 Nut 44 | 1 | |
| 32 | 79 69 348 Clamp 44 | 1 | |
| 33 | 73 99 652 Clamp 1996-1997 • 44 | 1 | |
| 33 | 73 98 977 Tensioning band 1997- • 44 | 1 |
