Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 9000 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9000 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	47 50 600 Three way catalytic converter 45	Three way catalytic converter	45	1
1	47 50 402 Three way catalytic converter 1994-1997 • 45	Three way catalytic converter	1994-1997 45	1
2	41 62 632 Brace 45	Brace	45	1
3	79 84 511 Screw 45	Screw	45	1
5	89 80 328 Gasket 45	Gasket	45	2
6	79 79 503 Nut 45	Nut	45	4
7	91 46 937 30 551 925 Front heated oxygen sensor 45	Front heated oxygen sensor	45	1
8	73 98 415 Clamp 45	Clamp	45	1
9	43 93 583 Intermediate pipe 45	Intermediate pipe	45	1
10	79 67 953 11 900 429 Nut 45	Nut	45	4
11	40 18 875 54 66 867 Silencer 45	Silencer	45	1
12	93 92 465 Rubber mounting 45	Rubber mounting	45	2
14	40 22 505 Heat shield 45	Heat shield	45	1
15	93 93 968 Rivet 45	Rivet	45	8
15	75 91 480 Rivet 45 • Alternative to 93 93...	Rivet	45 Alternative to 93 93...	8
16	79 67 953 11 900 429 Nut 45	Nut	45	2
17	88 22 231 54 66 818 Silencer 45	Silencer	45	1
17	45 25 382 54 67 113 Silencer 1995-1997 • 45	Silencer	1995-1997 45	1
17	41 62 061 54 66 818 Silencer 45	Silencer	45	1
18	93 92 465 Rubber mounting 45	Rubber mounting	45	2
19	89 77 936 Hook 45	Hook	45	1
20	79 67 953 11 900 429 Nut 45	Nut	45	2
21	73 98 746 Clamp 45	Clamp	45	3
30	53 31 327 Brace 45	Brace	45	1
31	93 92 465 Rubber mounting 45	Rubber mounting	45	2

Pos.	Part No.	Description	Usage	Qty
1	47 50 600 Three way catalytic converter 45	Three way catalytic converter	45	1
1	47 50 402 Three way catalytic converter 1994-1997 • 45	Three way catalytic converter	1994-1997 45	1
2	41 62 632 Brace 45	Brace	45	1
3	79 84 511 Screw 45	Screw	45	1
5	89 80 328 Gasket 45	Gasket	45	2
6	79 79 503 Nut 45	Nut	45	4
7	91 46 937 30 551 925 Front heated oxygen sensor 45	Front heated oxygen sensor	45	1
8	73 98 415 Clamp 45	Clamp	45	1
9	43 93 583 Intermediate pipe 45	Intermediate pipe	45	1
10	79 67 953 11 900 429 Nut 45	Nut	45	4
11	40 18 875 54 66 867 Silencer 45	Silencer	45	1
12	93 92 465 Rubber mounting 45	Rubber mounting	45	2
14	40 22 505 Heat shield 45	Heat shield	45	1
15	93 93 968 Rivet 45	Rivet	45	8
15	75 91 480 Rivet 45 • Alternative to 93 93...	Rivet	45 Alternative to 93 93...	8
16	79 67 953 11 900 429 Nut 45	Nut	45	2
17	88 22 231 54 66 818 Silencer 45	Silencer	45	1
17	45 25 382 54 67 113 Silencer 1995-1997 • 45	Silencer	1995-1997 45	1
17	41 62 061 54 66 818 Silencer 45	Silencer	45	1
18	93 92 465 Rubber mounting 45	Rubber mounting	45	2
19	89 77 936 Hook 45	Hook	45	1
20	79 67 953 11 900 429 Nut 45	Nut	45	2
21	73 98 746 Clamp 45	Clamp	45	3
30	53 31 327 Brace 45	Brace	45	1
31	93 92 465 Rubber mounting 45	Rubber mounting	45	2

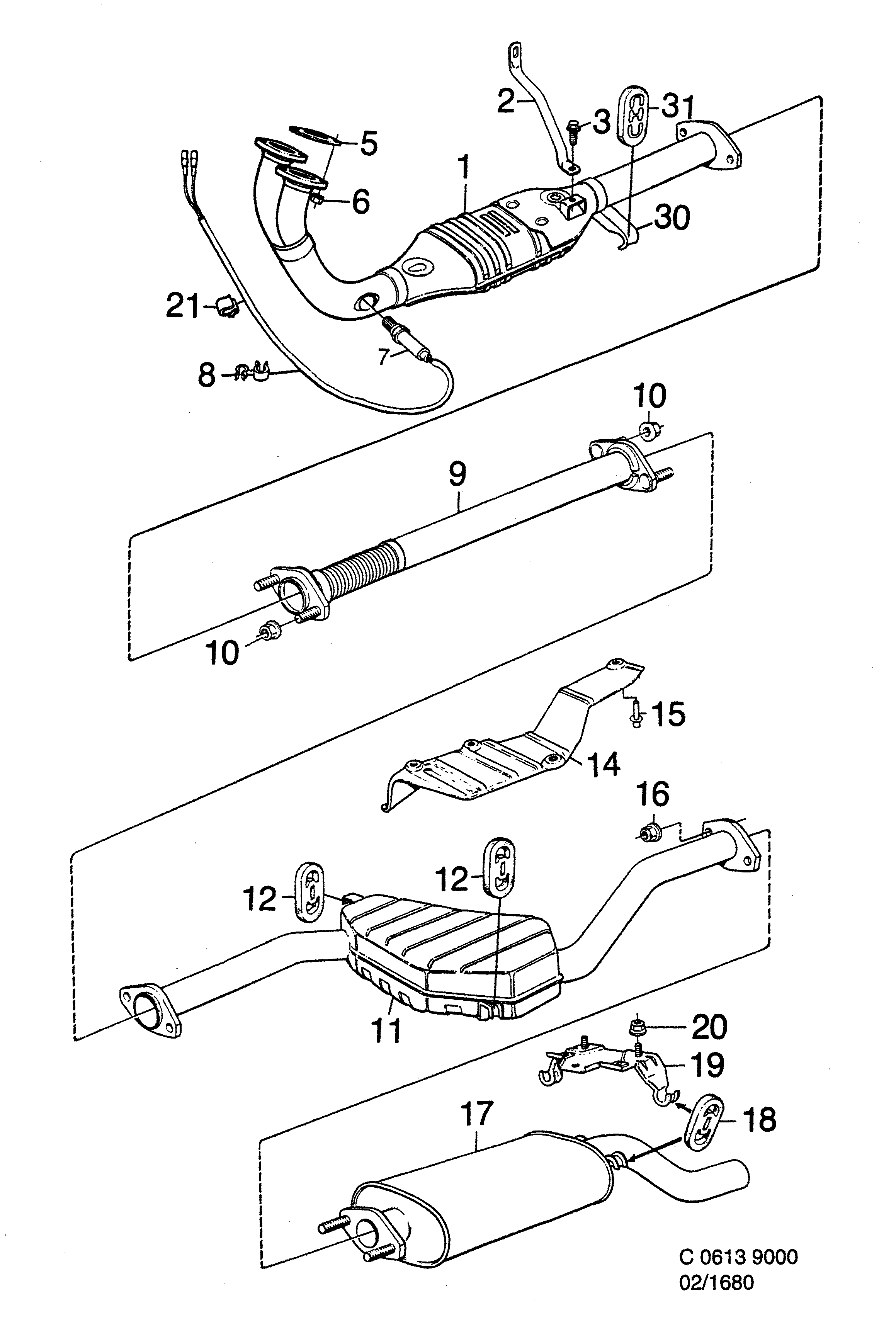

1680: Engine - Intake and exhaust system - Exhaust system - Front placed catalytic converter
