Question 1

Where to find the exploded diagram for Cooling system on my Saab 9000 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Cooling system on Saab 9000 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Cooling system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Cooling system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Cooling system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Cooling system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1A	43 59 899 Fan shroud 1995-	Fan shroud	1995-	1
2A	43 96 248 Fan unit 1996- • Fan motor and blade...	Fan unit	1996- Fan motor and blade...	1
3	75 77 885 Fan shroud	Fan shroud		1
4	75 98 980 Fan unit AC	Fan unit	AC	1
6	79 75 576 92 153 043 Nut	Nut		3
7	79 74 298 92 153 044 Nut 1996-1998	Nut	1996-1998	1
8	79 74 298 92 153 044 Nut	Nut		3
9	79 71 823 Screw	Screw		1
10	79 22 800 Screw	Screw		2
11	79 75 071 92 151 849 Clip nut 1995-1998	Clip nut	1995-1998	2
12	79 72 607 92 153 146 Screw	Screw		2
13C	88 22 777 Fan kit 1996-1997 • Two-speed. Fan motor and...	Fan kit	1996-1997 Two-speed. Fan motor and...	1
13B	48 77 015 Fan unit 1997-	Fan unit	1997-	1
13D	43 59 899 Fan shroud	Fan shroud		1
14	79 72 896 80 73 090 Screw 1995-1998	Screw	1995-1998	2
15	41 76 095 Clip	Clip		1

Pos.	Part No.	Description	Usage	Qty
1A	43 59 899 Fan shroud 1995-	Fan shroud	1995-	1
2A	43 96 248 Fan unit 1996- • Fan motor and blade...	Fan unit	1996- Fan motor and blade...	1
3	75 77 885 Fan shroud	Fan shroud		1
4	75 98 980 Fan unit AC	Fan unit	AC	1
6	79 75 576 92 153 043 Nut	Nut		3
7	79 74 298 92 153 044 Nut 1996-1998	Nut	1996-1998	1
8	79 74 298 92 153 044 Nut	Nut		3
9	79 71 823 Screw	Screw		1
10	79 22 800 Screw	Screw		2
11	79 75 071 92 151 849 Clip nut 1995-1998	Clip nut	1995-1998	2
12	79 72 607 92 153 146 Screw	Screw		2
13C	88 22 777 Fan kit 1996-1997 • Two-speed. Fan motor and...	Fan kit	1996-1997 Two-speed. Fan motor and...	1
13B	48 77 015 Fan unit 1997-	Fan unit	1997-	1
13D	43 59 899 Fan shroud	Fan shroud		1
14	79 72 896 80 73 090 Screw 1995-1998	Screw	1995-1998	2
15	41 76 095 Clip	Clip		1

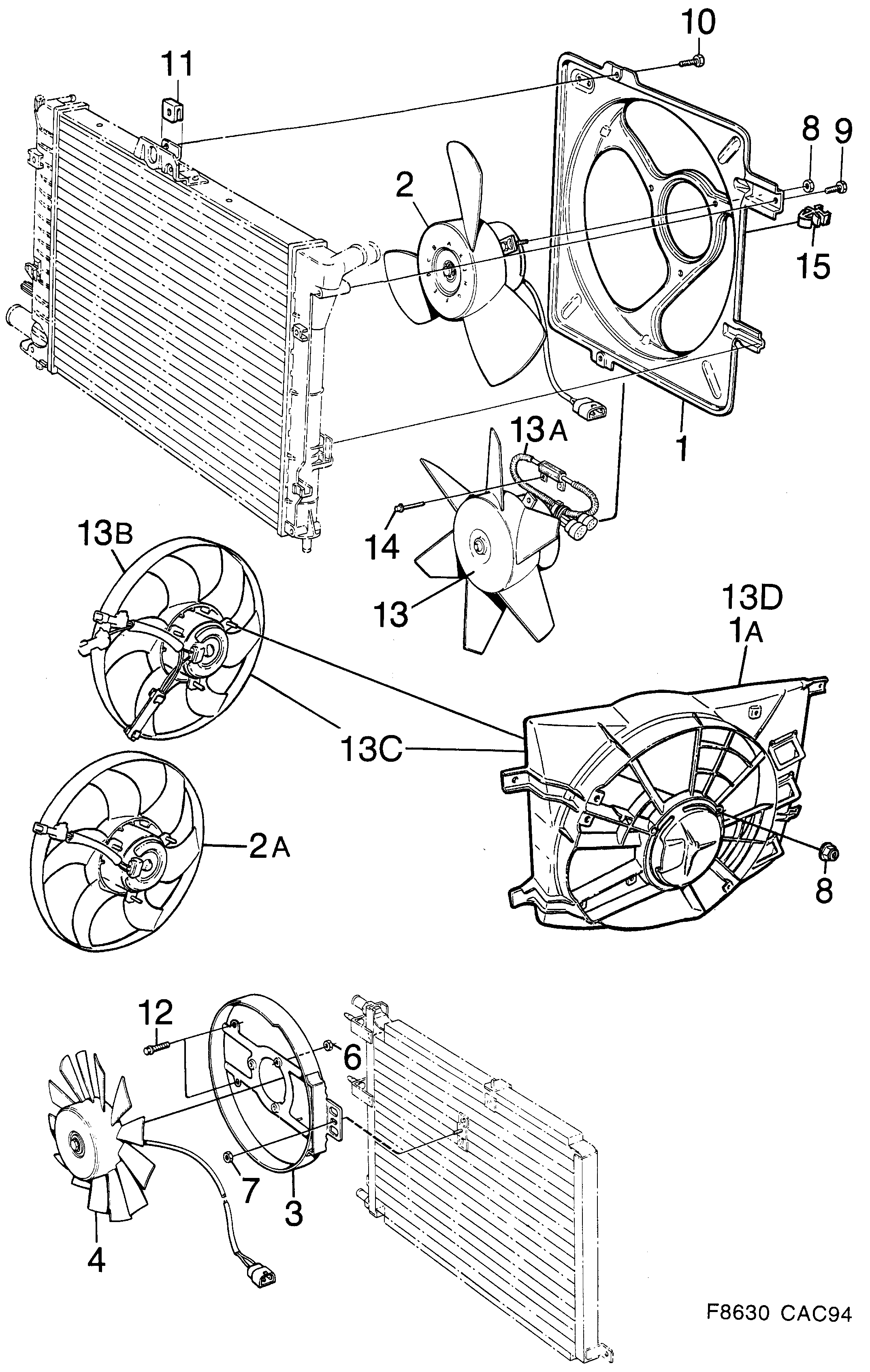

1830: Engine - Cooling system - Fan, etc
