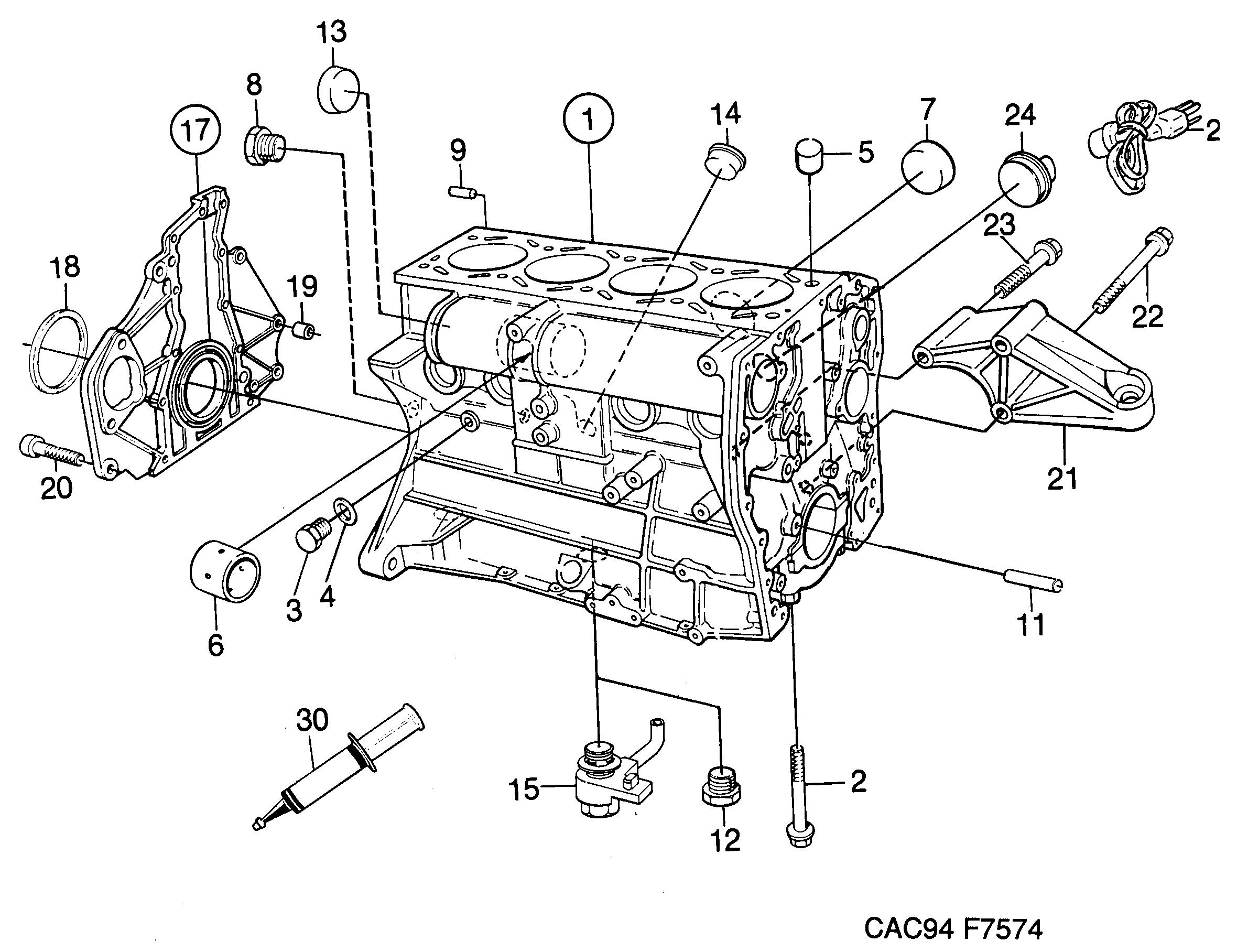

210: Engine - Short block - Cylinder block - 4-cylinder
(1994 - 1998 | PETROL) | For 9000 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 39 320 Cylinder block -1998 • I • Not as separate spare... | 1 | |
| 1 | 91 39 338 Cylinder block -1998 • TURBO • Not as separate spare... | 1 | |
| 2 | 91 28 687 Screw PETROL | 10 | |
| 3 | 75 63 042 Plug PETROL | 2 | |
| 4 | 81 24 141 92 150 435 Gasket PETROL | 2 | |
| 5 | 83 46 470 Guide PETROL | 8 | |
| 6 | 75 88 684 Bushing -1998 • PETROL | 2 | |
| 7 | 79 85 120 Sealing washer PETROL | 7 | |
| 8 | 83 48 047 Plug PETROL | 1 | |
| 9 | 75 85 052 Guide PETROL | 4 | |
| 11 | 79 50 066 Pin PETROL | 1 | |
| 12 | 91 15 049 30 520 417 Plug PETROL | 4 | |
| 13 | 81 23 259 92 151 501 Sealing washer PETROL | 2 | |
| 14 | 81 23 218 Sealing washer PETROL | 1 | |
| 15 | 91 67 677 Piston cooling jet TURBO, B234I | 4 | |
| 17 | 91 74 194 55 557 715 Plate 1997-1998 • PETROL | 1 | |
| 18 | 91 74 202 55 557 240 Seal 1997-1998 • PETROL • crankshaft rear | 1 | |
| 19 | 91 29 800 Guide sleeve PETROL | 2 | |
| 20 | 79 78 109 11 900 354 Screw 1997-1998 • PETROL | 12 | |
| 21 | 91 17 557 Bracket PETROL | 1 | |
| 22 | 79 82 564 92 151 523 Screw PETROL | 2 | |
| 23 | 79 82 598 Hexagon screw PETROL | 1 | |
| 24 | 47 25 883 Engine heater PETROL | 1 | |
| 25 | 43 97 311 Extension cable PETROL | 1 | |
| 30 | 90 297 970 Flange sealant PETROL • 50 ML | X |
