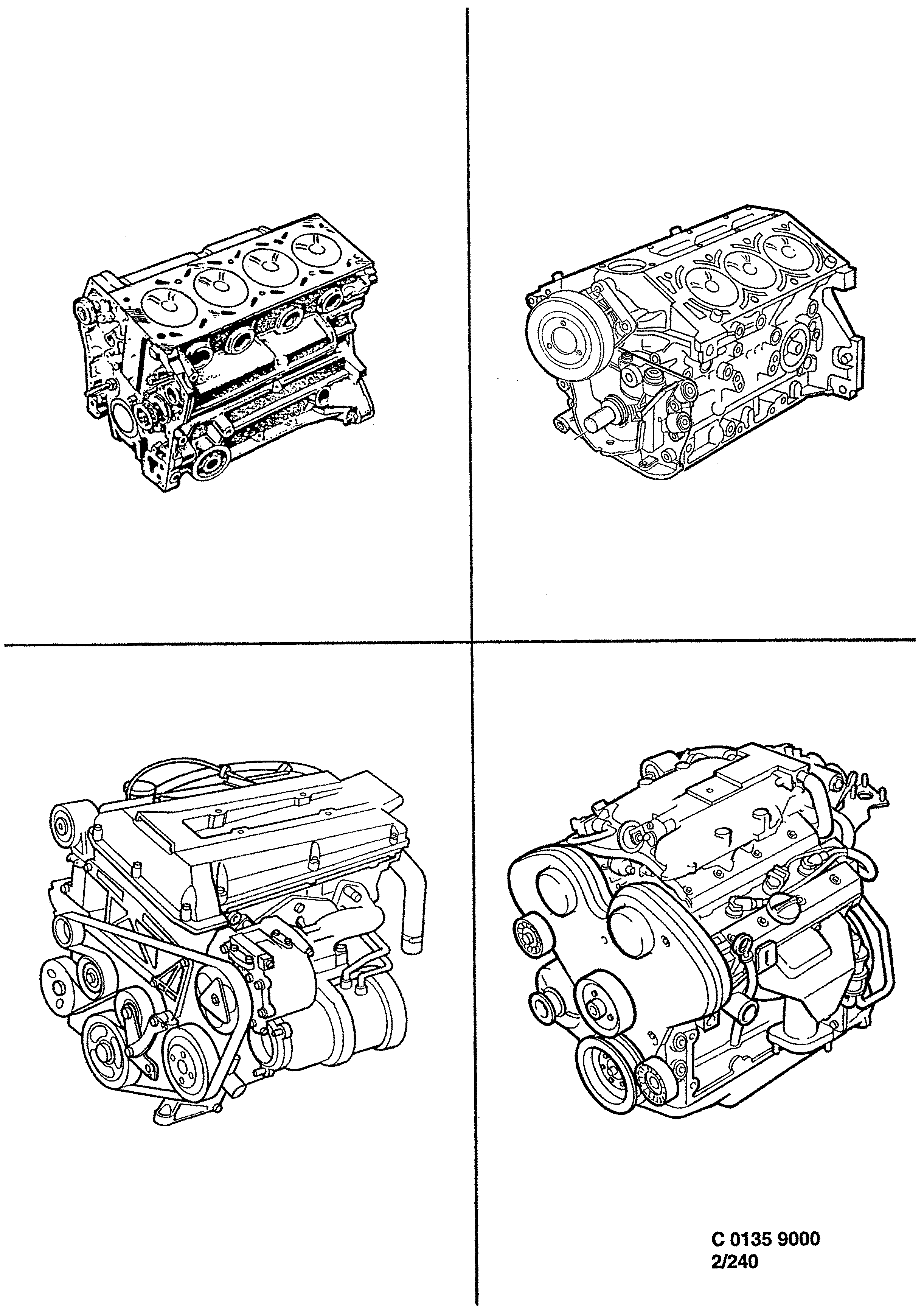

240: Engine - Short block - Short engine - Engine

(1994 - 1998) | For 9000 (1997)

100%

(N°210)

Section 240

(N°245)

Part No.	Description	Usage	Qty
91 69 376 Basic engine 1994-1997 • B204I • Also available as exchange...	Basic engine	1994-1997 B204I Also available as exchange...	1
91 69 384 Basic engine 1994-1997 • B204S • Also available as exchange...	Basic engine	1994-1997 B204S Also available as exchange...	1
91 69 392 Basic engine 1994-1997 • B204L, B204E • Also available as exchange...	Basic engine	1994-1997 B204L, B204E Also available as exchange...	1
91 69 400 Basic engine 1994-1997 • B234I • Also available as exchange...	Basic engine	1994-1997 B234I Also available as exchange...	1
91 69 418 Basic engine 1994-1997 • B234E, B234L, B234R • Also available as exchange...	Basic engine	1994-1997 B234E, B234L, B234R Also available as exchange...	1
47 70 244 91 95 794 Basic engine B308 • (8822397) \| Also available...	Basic engine	B308 (8822397) \| Also available...	1
Cylinder block 4-CYL, 6-CYL	Cylinder block	4-CYL, 6-CYL
Crankshaft 4-CYL, 6-CYL	Crankshaft	4-CYL, 6-CYL
Connecting rod 4-CYL, 6-CYL	Connecting rod	4-CYL, 6-CYL
Piston 4-CYL, 6-CYL	Piston	4-CYL, 6-CYL
Timing gear casing 4-CYL	Timing gear casing	4-CYL
Transmission 4-CYL	Transmission	4-CYL
End plate 4-CYL	End plate	4-CYL
Oil pump 4-CYL	Oil pump	4-CYL
Coolant pump 4-CYL	Coolant pump	4-CYL
91 80 852 Engine 1997-1997 • B204I	Engine	1997-1997 B204I	X
91 80 860 Engine 1997-1997 • B204E	Engine	1997-1997 B204E	X
91 80 878 Engine 1997-1997 • B204E	Engine	1997-1997 B204E	X
91 80 886 Engine 1997-1997 • B234E	Engine	1997-1997 B234E	X
91 80 902 Engine 1997-1997, LHD • B234E	Engine	1997-1997, LHD B234E	X
91 80 894 Engine 1997-1997 • B234E	Engine	1997-1997 B234E	X
91 80 910 Engine 1997-1997, LHD • B234E	Engine	1997-1997, LHD B234E	X
91 80 928 Engine 1997-1997 • B234L	Engine	1997-1997 B234L	X
91 80 944 Engine 1997-1997, LHD • B234L	Engine	1997-1997, LHD B234L	X
91 80 936 Engine 1997-1997 • B234L	Engine	1997-1997 B234L	X
91 80 951 Engine 1997-1997, LHD • B234L	Engine	1997-1997, LHD B234L	X
91 80 969 Engine 1997-1997 • B234R	Engine	1997-1997 B234R	X
91 80 977 Engine 1997-1997, LHD • B234R	Engine	1997-1997, LHD B234R	X
46 21 553 Engine 1996-1998 • B308I	Engine	1996-1998 B308I	X
47 50 170 Engine 1997-1997 • B308I	Engine	1997-1997 B308I	X
47 50 188 Engine 1997-1997, LHD • B308I	Engine	1997-1997, LHD B308I	X
Cylinder block 1995-1998	Cylinder block	1995-1998
Crankshaft 1995-1998	Crankshaft	1995-1998
Connecting rod 1995-1998	Connecting rod	1995-1998
Piston 1995-1998	Piston	1995-1998
Timing gear casing 1995-1998	Timing gear casing	1995-1998
Transmission 1995-1998	Transmission	1995-1998
Coolant pump 1995-1998	Coolant pump	1995-1998
Flywheel housing 1995-1998	Flywheel housing	1995-1998
Cylinder head 1995-1998	Cylinder head	1995-1998
Valve cover 1995-1998	Valve cover	1995-1998
Sump 1995-1998	Sump	1995-1998
Flywheel 1995-1998	Flywheel	1995-1998
Vibration damper 1995-1998	Vibration damper	1995-1998
Camshaft 1995-1998	Camshaft	1995-1998
Intake manifold 1995-1998	Intake manifold	1995-1998
Exhaust manifold 1995-1998	Exhaust manifold	1995-1998
Oil filter 1995-1998	Oil filter	1995-1998
Oil filler pipe 1995-1998	Oil filler pipe	1995-1998
Crank case ventilation 1995-1998	Crank case ventilation	1995-1998
Thermostat housing 1995-1998	Thermostat housing	1995-1998
Multiport fuel injection 1995-1998	Multiport fuel injection	1995-1998
Ignition system 1995-1998	Ignition system	1995-1998
Clutch 1995-1998	Clutch	1995-1998
