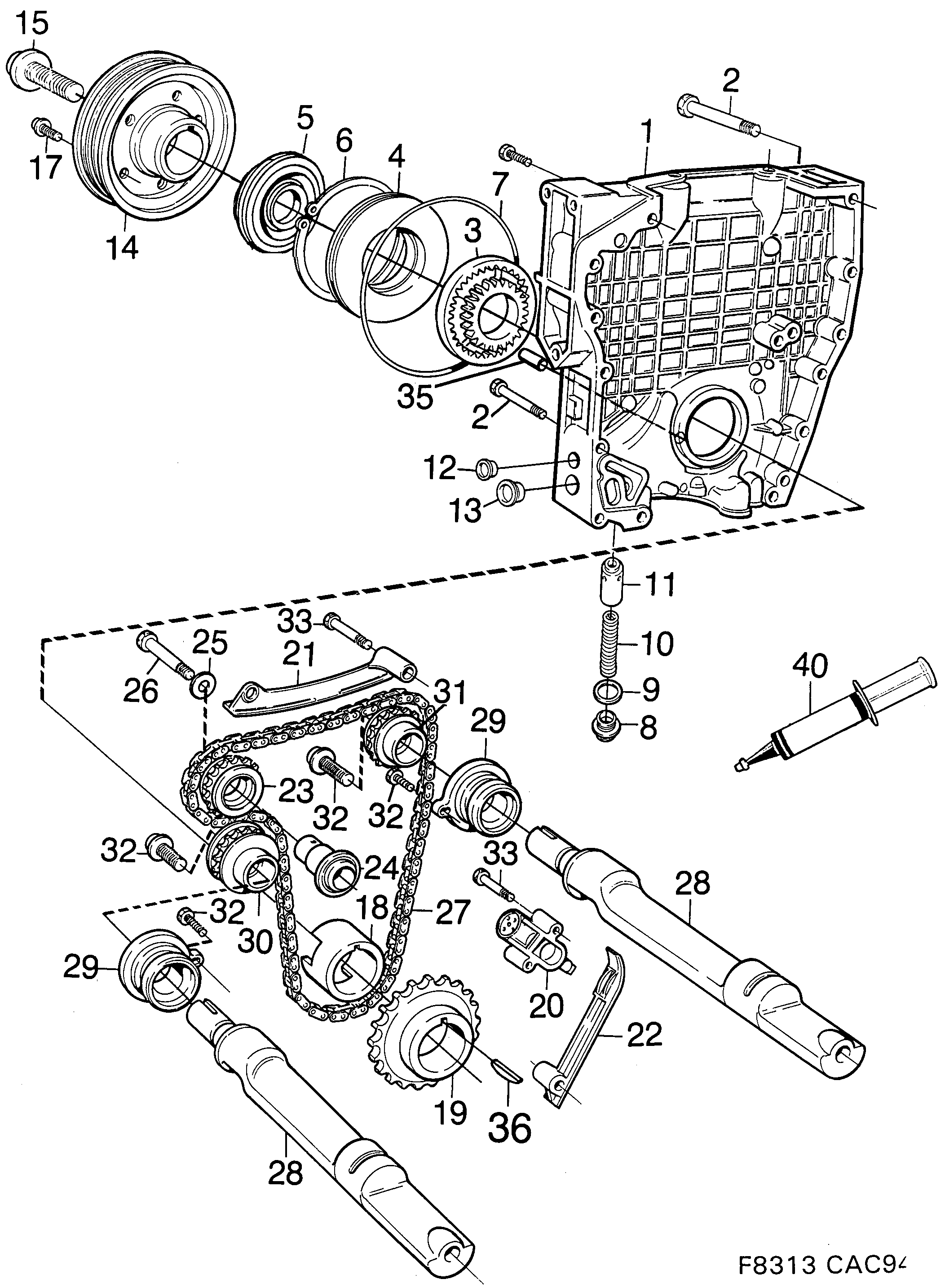

300: Engine - Short block - Transmission - Balancer shaft
(1994 - 1998 | PETROL) | For 9000 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 91 43 652 30 551 852 Cover PETROL | 1 | |
| 2 | 79 84 891 92 151 834 Screw PETROL | 15 | |
| 3 | Pump kitLubricating system PETROL | 1 | |
| 3 | Pump kitKits PETROL | 1 | |
| 4 | 91 38 934 Oil pump housing PETROL | 1 | |
| 5 | 91 73 576 55 557 231 Seal 1996- • PETROL • crankshaft front | 1 | |
| 6 | 91 29 719 30 551 798 Lock ring PETROL | 1 | |
| 7 | 91 30 600 Seal PETROL | 1 | |
| 8 | 75 08 955 Plug PETROL | 1 | |
| 9 | 93 55 389 Gasket PETROL | 1 | |
| 10 | 93 09 998 Spring PETROL | 1 | |
| 11 | 91 67 784 Piston PETROL | 1 | |
| 12 | 81 23 168 Plug PETROL | 1 | |
| 13 | 81 23 192 Plug PETROL | 1 | |
| 14 | 91 44 841 Pulley PETROL | 1 | |
| 15 | 91 16 443 Screw PETROL | 1 | |
| 18 | 91 29 727 30 551 799 Companion flange PETROL | 1 | |
| 19 | 91 38 264 Chain gear PETROL | 1 | |
| 20 | 91 39 130 Chain tensioner PETROL | 1 | |
| 21 | 91 45 368 55 557 272 Chain control PETROL | 1 | |
| 22 | 91 45 384 55 557 271 Chain control PETROL | 1 | |
| 23 | 91 40 658 Chain gear PETROL | 1 | |
| 24 | 91 45 392 55 557 376 Shaft PETROL | 1 | |
| 25 | 91 30 535 Thrust washer PETROL | 1 | |
| 26 | 79 84 735 92 153 157 Screw PETROL | 1 | |
| 27 | 74 85 105 Chain PETROL | 1 | |
| 28 | 91 74 533 Balance shaft 1995-1998 • PETROL | 2 | |
| 29 | 91 15 288 Bearing housing -1998 • PETROL | 2 | |
| 30 | 91 42 068 93 167 190 Chain gear -1998 • PETROL • outlet | 1 | |
| 31 | 91 42 035 93 167 191 Chain gear -1998 • PETROL • inlet | 1 | |
| 32 | 80 59 982 Screw -1998 • PETROL | 2 | |
| 33 | 79 78 141 92 150 006 Hexagon screw 1997-1998 • PETROL | 4 | |
| 34 | 79 78 109 11 900 354 Screw 1997-1998 • PETROL | 2 | |
| 35 | 81 17 608 Roll pin PETROL | 1 | |
| 36 | KeyShort block PETROL | ||
| 40 | 90 297 970 Flange sealant PETROL • 50 ML | X |
