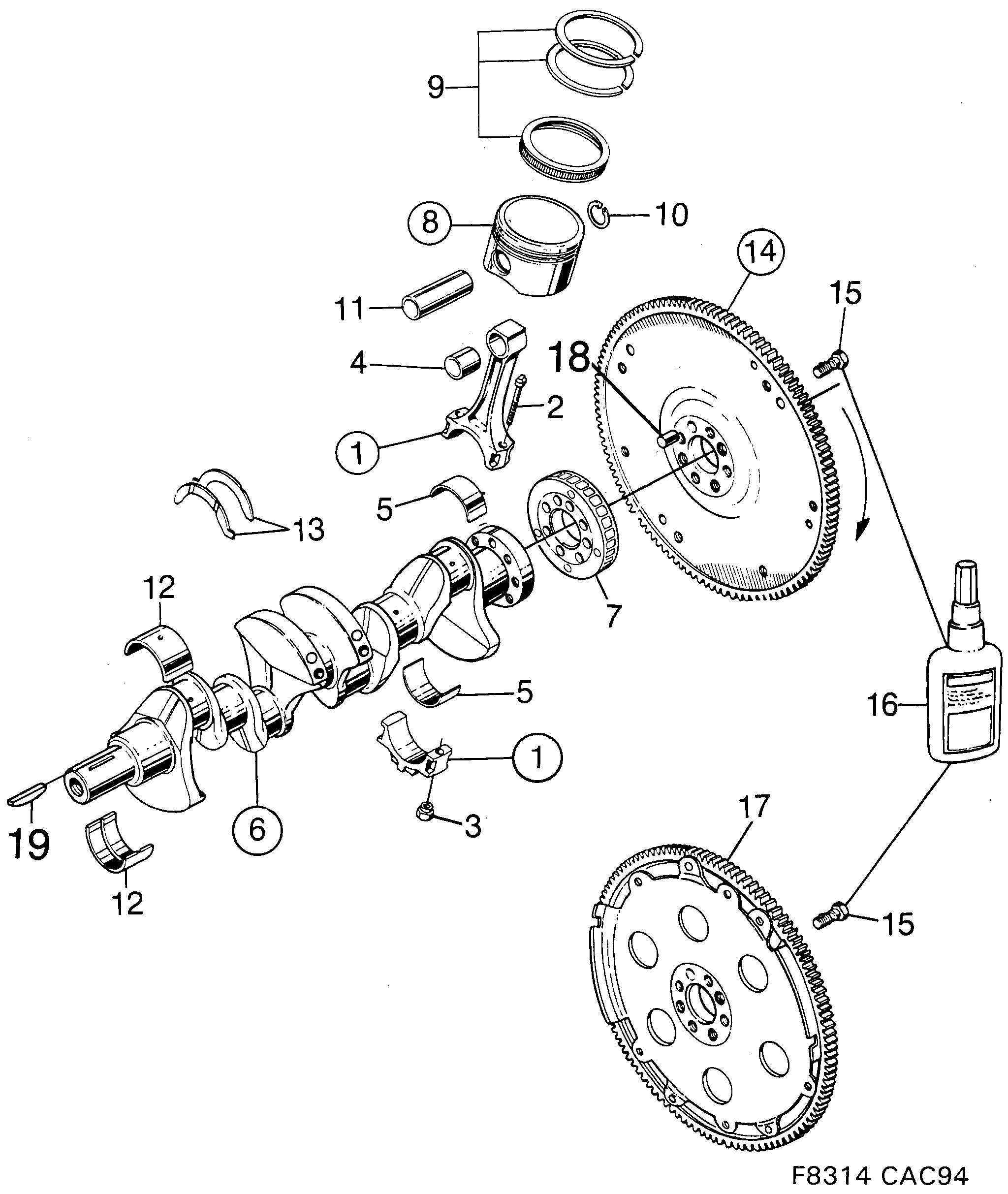

330: Engine - Short block - Crankshaft - Piston
(1994 - 1998 | PETROL) | For 9000 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 59 59 028 Connecting rod kit PETROL • (74 81 740) | 1 | |
| 2 | 74 80 643 Screw PETROL | 8 | |
| 3 | 74 80 684 Nut PETROL | 8 | |
| 4 | 91 36 946 Bushing PETROL | 4 | |
| 5 | 91 45 459 55 557 370 Connecting rod bearing PETROL • STD | 8 | |
| 5 | 91 45 467 30 551 894 Connecting rod bearing PETROL • 0,25 MM | Undersize. | 8 | |
| 5 | 91 45 475 30 551 895 Connecting rod bearing PETROL • 0,50 MM | Undersize. | 8 | |
| 6 | 91 39 403 Crankshaft PETROL | 1 | |
| 7 | Aperture discLighting PETROL | 1 | |
| 8 | 91 49 154 Piston B204I • CLASS AB | 4 | |
| 8 | 91 49 162 Piston B204I • CLASS B | 4 | |
| 8 | 91 49 170 Piston B204I • CLASS C | 4 | |
| 8 | 91 49 188 Piston B204I • 0,50 MM | Oversize. | 4 | |
| 8 | 91 49 196 Piston B204I • 1,0 MM | Oversize. | 4 | |
| 9 | 91 49 105 Piston rings, set 1994- • I, TURBO • STD | 4 | |
| 9 | 91 49 113 Piston rings, set 1994- • I, TURBO • 0,5MM | Oversize. | 4 | |
| 9 | 91 49 121 Piston rings, set 1994- • I, TURBO • 1,0 MM | Oversize. | 4 | |
| 10 | 88 59 514 55 557 265 Lock ring 1994-1997 • PETROL | 8 | |
| 11 | 75 68 934 Gudgeon pin I • L=60MM | 4 | |
| 11 | 93 166 808 Gudgeon pin TURBO • L=68MM (75 68 942) | 4 | |
| 12 | 91 45 418 55 557 369 Main bearing PETROL • STD | 10 | |
| 12 | 91 45 426 30 551 891 Main bearing PETROL • 0,25 MM | Undersize. | 10 | |
| 12 | 91 45 434 30 551 892 Main bearing PETROL • 0,50 MM | Undersize. | 10 | |
| 13 | 75 88 783 Thrust washer PETROL | 2 | |
| 14 | 91 79 136 Flywheel 1996- • B204I, B204S, B204E • 9MM | 1 | |
| 14 | 91 77 007 Flywheel 1996- • PETROL • 14MM | 1 | |
| 15 | 91 31 160 30 551 806 Screw PETROL | 8 | |
| 16 | 74 96 292 Nut lock PETROL • 50ML | strong red | X | |
| 17 | 91 46 788 30 551 919 Companion flange PETROL | 1 | |
| 19 | KeyShort block PETROL |
