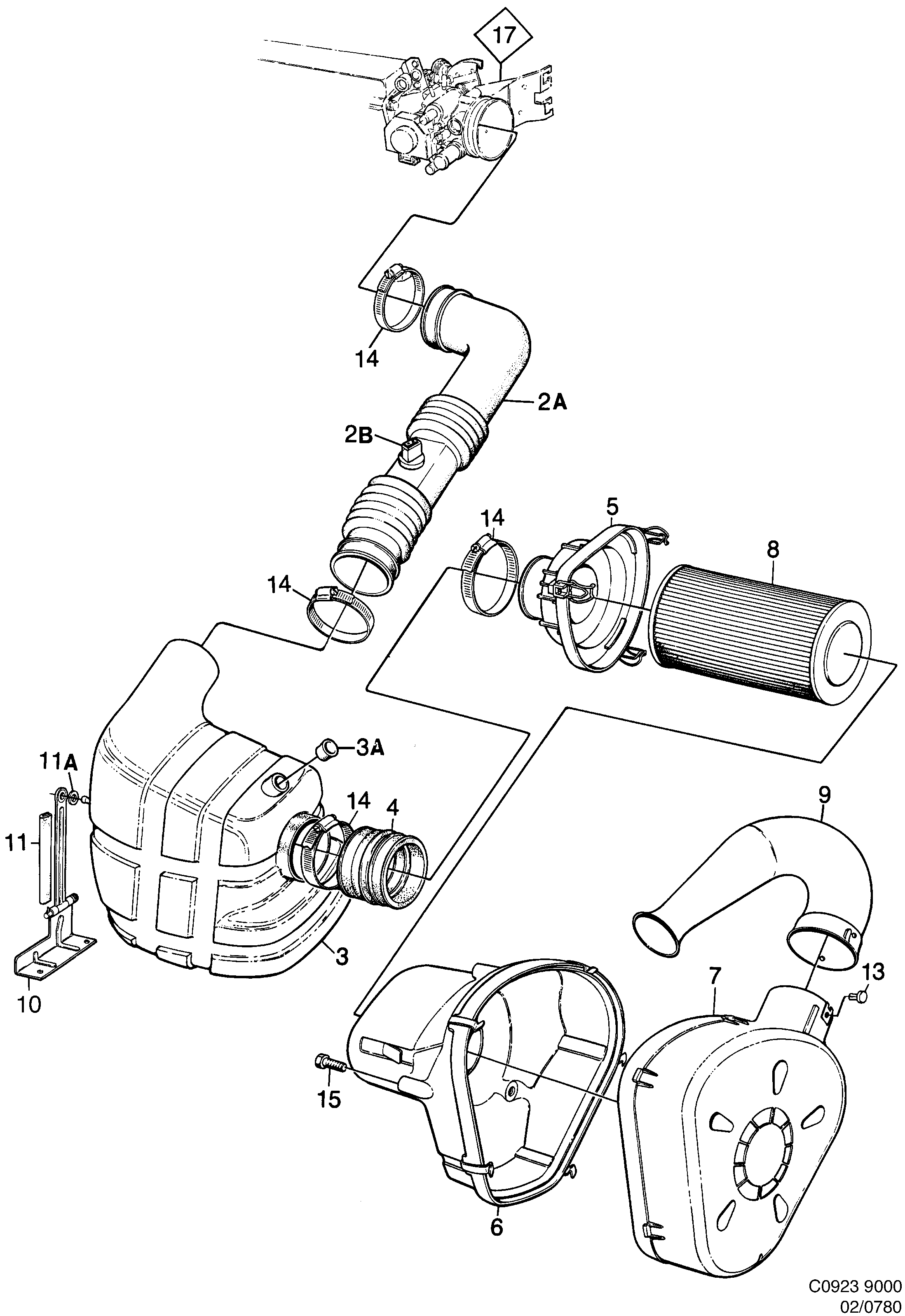

780: Engine - Fuel system - Air cleaner
(1994 - 1998 | PETROL) | For 9000 (1997)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2A | 43 90 308 Hose PETROL | 1 | |
| 2B | Temperature sensorCooling system PETROL | 1 | |
| 3 | 41 58 234 Silencer PETROL | 1 | |
| 3A | 45 25 028 Plug PETROL | 1 | |
| 4 | 40 15 947 Hose PETROL | 1 | |
| 5 | 40 16 861 Cover PETROL | 1 | |
| 6 | 93 90 170 Air cleaner housing PETROL | 1 | |
| 7 | 93 91 616 Air cleaner housing PETROL | 1 | |
| 8 | 93 90 907 Air filter PETROL | 1 | |
| 9 | 89 78 488 Pipe PETROL | 1 | |
| 10 | 41 58 168 Bracket PETROL | 1 | |
| 11A | 79 33 500 Bushing PETROL | 1 | |
| 13 | 95 65 417 Rivet PETROL | 1 | |
| 14 | 79 70 155 92 153 080 Hose clamp PETROL | 6 | |
| 15 | 79 77 788 Screw PETROL | 3 | |
| 17 | Throttle bodyIntake and exhaust system PETROL |
