Question 1

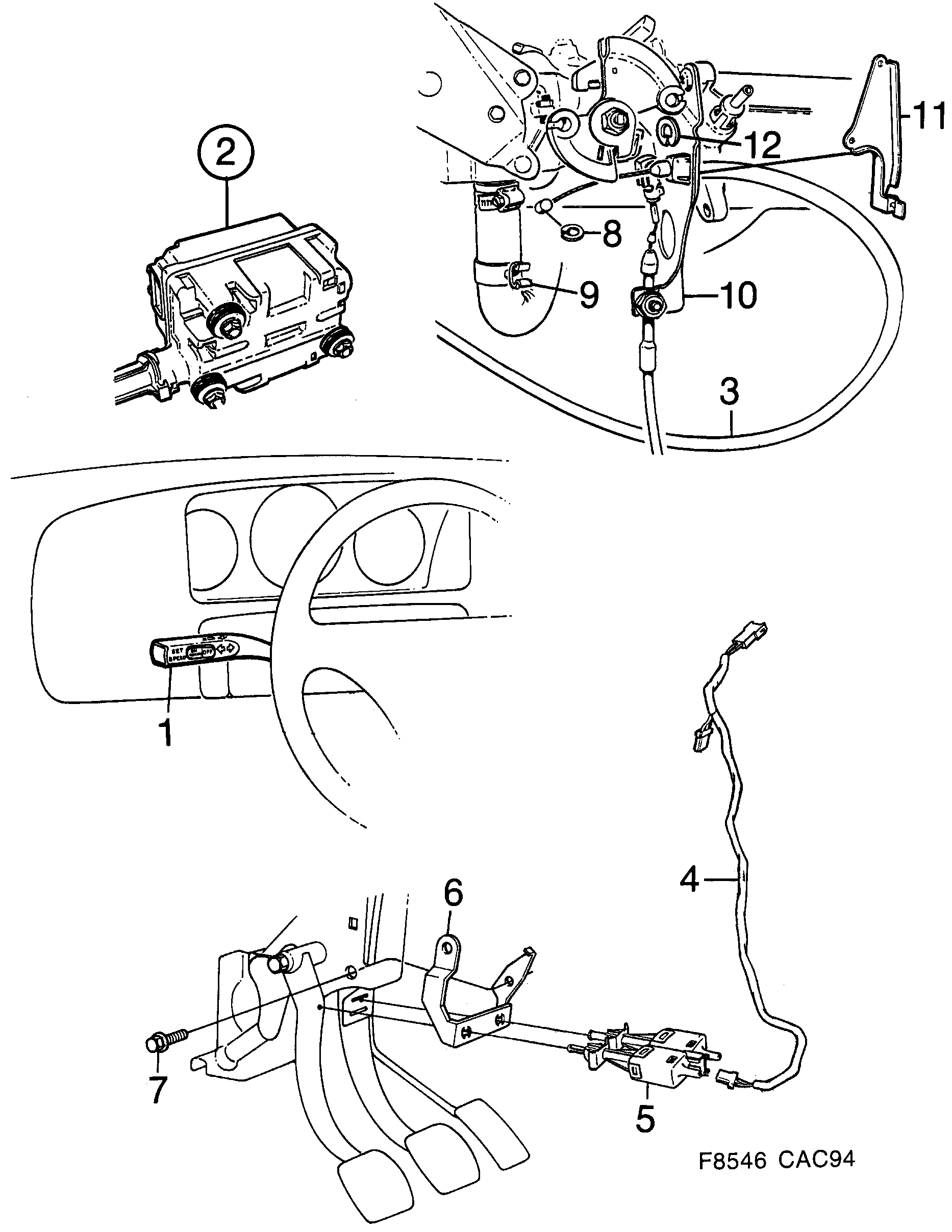

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	SwitchWiring and fuses	SwitchWiring and fuses
2	44 33 108 Electronic unit -1997 • 4-CYL	Electronic unit	-1997 4-CYL	1
2	46 63 514 50 38 849 Electronic unit 1997-1997 • 4-CYL	Electronic unit	1997-1997 4-CYL	1
2	44 33 116 50 38 856 Electronic unit -1997 • 6-CYL	Electronic unit	-1997 6-CYL	1
2	46 63 522 50 38 856 Electronic unit 1997-1997 • 6-CYL	Electronic unit	1997-1997 6-CYL	1
3	45 83 043 Cable -1997 • 4-CYL	Cable	-1997 4-CYL	1
3	47 11 420 Cable 1997-1997 • 4-CYL	Cable	1997-1997 4-CYL	1
3	45 83 050 50 41 298 Cable 1997-1997 • 6-CYL	Cable	1997-1997 6-CYL	1
3	47 11 412 50 41 298 Cable 1997-1997 • 6-CYL	Cable	1997-1997 6-CYL	1
4	45 37 775 Cable harness RHD	Cable harness	RHD	1
4	45 37 783 Cable harness RHD	Cable harness	RHD	1
5	43 50 443 Contact	Contact		2
6	95 29 637 Bracket	Bracket		1
7	75 28 953 Screw	Screw		1
8	81 23 473 E-circlip 6-CYL	E-circlip	6-CYL	1
9	73 98 415 Clamp	Clamp		1
10	44 32 589 Brace TURBO	Brace	TURBO	1
11	91 81 918 30 564 466 Bracket 1997- • 4-CYL I	Bracket	1997- 4-CYL I	1
11	91 81 926 Bracket 1997- • 4-CYL TURBO	Bracket	1997- 4-CYL TURBO	1
12	42 27 823 Lock ring 1997-	Lock ring	1997-	1

Pos.	Part No.	Description	Usage	Qty
1	SwitchWiring and fuses	SwitchWiring and fuses
2	44 33 108 Electronic unit -1997 • 4-CYL	Electronic unit	-1997 4-CYL	1
2	46 63 514 50 38 849 Electronic unit 1997-1997 • 4-CYL	Electronic unit	1997-1997 4-CYL	1
2	44 33 116 50 38 856 Electronic unit -1997 • 6-CYL	Electronic unit	-1997 6-CYL	1
2	46 63 522 50 38 856 Electronic unit 1997-1997 • 6-CYL	Electronic unit	1997-1997 6-CYL	1
3	45 83 043 Cable -1997 • 4-CYL	Cable	-1997 4-CYL	1
3	47 11 420 Cable 1997-1997 • 4-CYL	Cable	1997-1997 4-CYL	1
3	45 83 050 50 41 298 Cable 1997-1997 • 6-CYL	Cable	1997-1997 6-CYL	1
3	47 11 412 50 41 298 Cable 1997-1997 • 6-CYL	Cable	1997-1997 6-CYL	1
4	45 37 775 Cable harness RHD	Cable harness	RHD	1
4	45 37 783 Cable harness RHD	Cable harness	RHD	1
5	43 50 443 Contact	Contact		2
6	95 29 637 Bracket	Bracket		1
7	75 28 953 Screw	Screw		1
8	81 23 473 E-circlip 6-CYL	E-circlip	6-CYL	1
9	73 98 415 Clamp	Clamp		1
10	44 32 589 Brace TURBO	Brace	TURBO	1
11	91 81 918 30 564 466 Bracket 1997- • 4-CYL I	Bracket	1997- 4-CYL I	1
11	91 81 926 Bracket 1997- • 4-CYL TURBO	Bracket	1997- 4-CYL TURBO	1
12	42 27 823 Lock ring 1997-	Lock ring	1997-	1

1140: Electrical, general - Electric equipment, other - Speed control system
