Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 9000 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9000 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

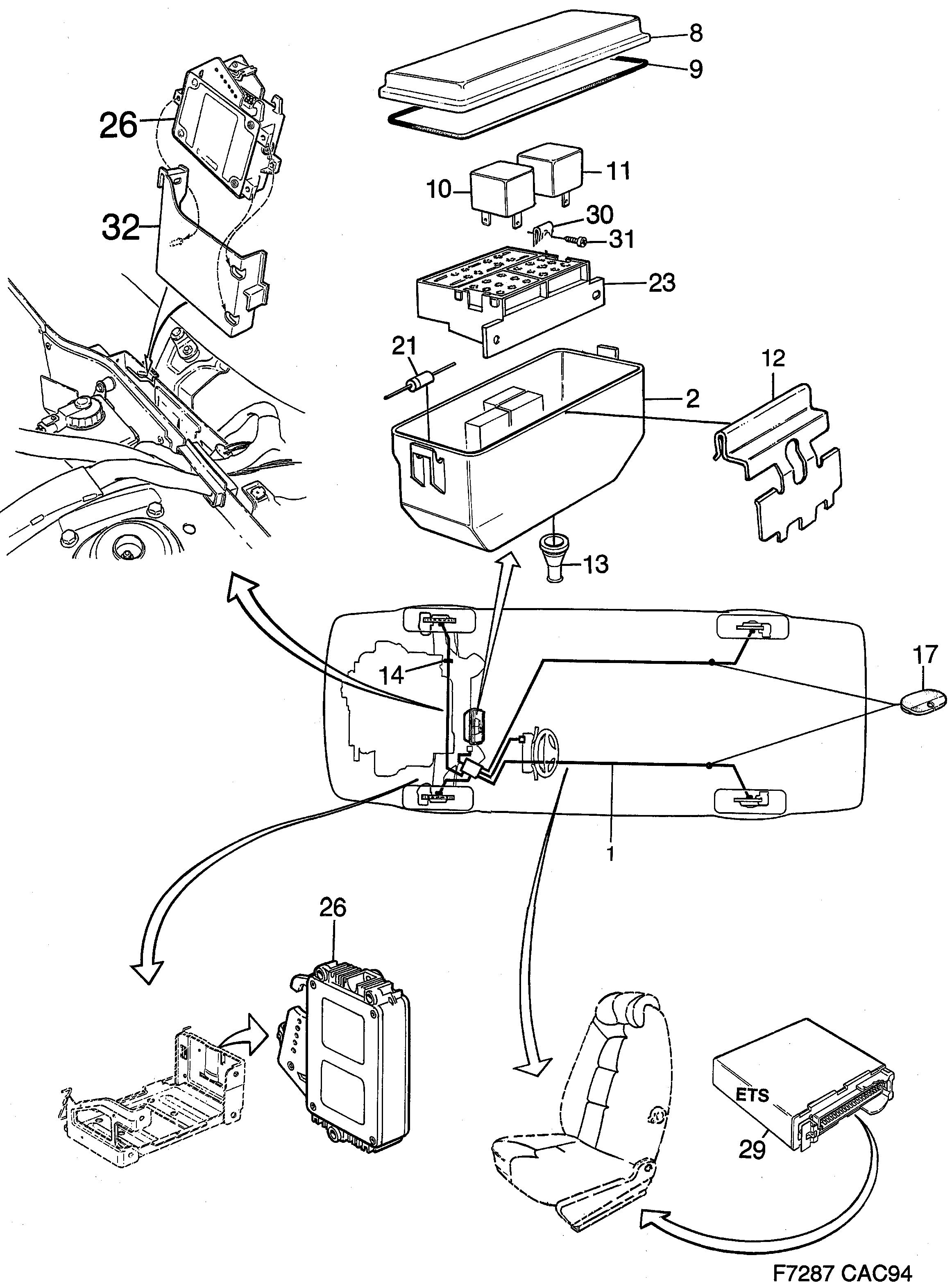

Pos.	Part No.	Description	Usage	Qty
1	Cable harnessWiring and fuses 1997-1997	Cable harnessWiring and fuses 1997-1997
2	41 11 118 Box	Box
8	95 19 919 Cover	Cover		1
9	95 19 927 Seal	Seal		1
10	85 33 176 Relay main relay	Relay	main relay	1
11	95 22 822 Relay pump	Relay	pump	1
	RelayWiring and fuses 1997-1997 • main relay, ETS	RelayWiring and fuses 1997-1997 • main relay, ETS
12	BracketFootbrake system	BracketFootbrake system
13	95 19 745 Protection	Protection		1
17	92 79 878 Cover	Cover		2
21	44 24 172 Diode	Diode		2
23	91 25 543 Contact housing	Contact housing		1
26	41 98 602 Electronic unit ABS	Electronic unit	ABS	1
26	41 97 927 Electronic unit B308 • ABS \| Also available...	Electronic unit	B308 ABS \| Also available...	1
27	79 82 176 92 153 218 Screw	Screw		2
29	42 39 190 Throttle control module B308 • TCS	Throttle control module	B308 TCS	1
30	79 68 001 Clip nut	Clip nut		2
31	79 70 601 92 153 219 Screw	Screw		2
32	44 24 917 Bracket 1995-1998	Bracket	1995-1998	1

Pos.	Part No.	Description	Usage	Qty
1	Cable harnessWiring and fuses 1997-1997	Cable harnessWiring and fuses 1997-1997
2	41 11 118 Box	Box
8	95 19 919 Cover	Cover		1
9	95 19 927 Seal	Seal		1
10	85 33 176 Relay main relay	Relay	main relay	1
11	95 22 822 Relay pump	Relay	pump	1
	RelayWiring and fuses 1997-1997 • main relay, ETS	RelayWiring and fuses 1997-1997 • main relay, ETS
12	BracketFootbrake system	BracketFootbrake system
13	95 19 745 Protection	Protection		1
17	92 79 878 Cover	Cover		2
21	44 24 172 Diode	Diode		2
23	91 25 543 Contact housing	Contact housing		1
26	41 98 602 Electronic unit ABS	Electronic unit	ABS	1
26	41 97 927 Electronic unit B308 • ABS \| Also available...	Electronic unit	B308 ABS \| Also available...	1
27	79 82 176 92 153 218 Screw	Screw		2
29	42 39 190 Throttle control module B308 • TCS	Throttle control module	B308 TCS	1
30	79 68 001 Clip nut	Clip nut		2
31	79 70 601 92 153 219 Screw	Screw		2
32	44 24 917 Bracket 1995-1998	Bracket	1995-1998	1

1380: Electrical, general - Electric equipment, other - Electrical system - ABS, TCS, ETS
