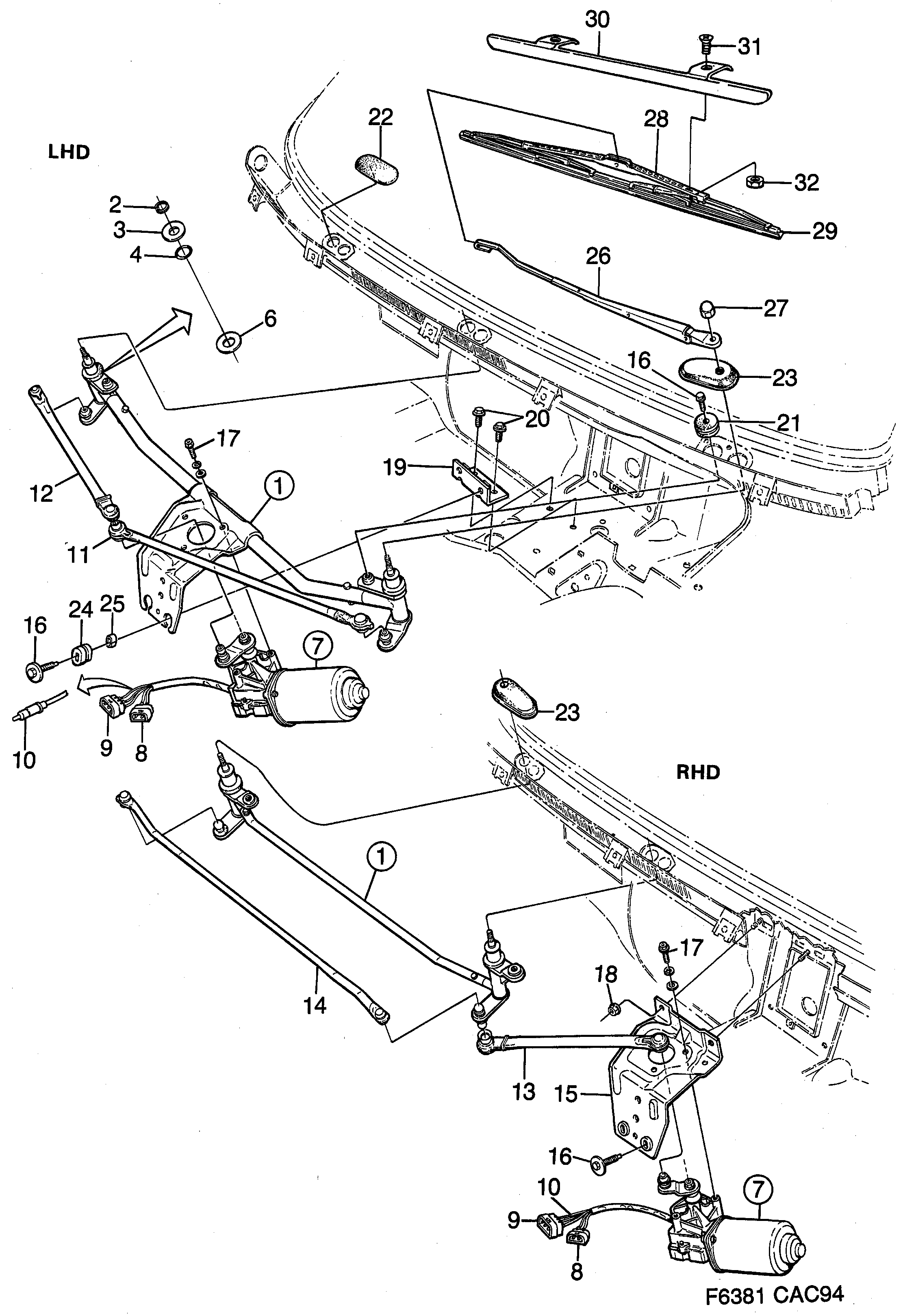

Pos.	Part No.	Description	Usage	Qty
1	91 23 688 Spindle frame LHD	Spindle frame	LHD	1
1	40 60 497 Spindle frame RHD	Spindle frame	RHD	1
2	91 23 837 Retaining ring	Retaining ring		2
3	91 23 845 Washer	Washer		2
4	91 23 852 O-ring	O-ring		2
6	91 23 894 Washer	Washer		2
7	91 23 662 Electric motor LHD	Electric motor	LHD	1
7	40 60 489 Electric motor RHD	Electric motor	RHD	1
8	95 01 685 Contact housing 2-pin	Contact housing	2-pin	1
9	95 03 327 Contact housing 3-pin	Contact housing	3-pin	1
10	85 47 770 Connector	Connector		5
11	91 23 696 Crank arm LHD • LH	Crank arm	LHD LH	1
12	91 23 704 Crank arm LHD • RH	Crank arm	LHD RH	1
13	40 60 513 Crank arm RHD • LH	Crank arm	RHD LH	1
14	40 60 505 Crank arm RHD • RH	Crank arm	RHD RH	1
15	40 63 574 Bracket RHD	Bracket	RHD	1
16	73 99 900 Hexagon screw	Hexagon screw		4
17	40 63 814 Screw	Screw		3
18	79 77 929 11 900 451 Nut RHD	Nut	RHD	2
19	91 24 751 Bracket	Bracket		1
20	79 69 223 Screw	Screw		2
21	91 23 589 Rubber bushing LHD	Rubber bushing	LHD	2
22	91 23 639 Plug	Plug		1
23	91 23 597 Cover LHD • LH	Cover	LHD LH	1
23	91 23 605 Cover LHD • RH	Cover	LHD RH	1
23	91 23 613 Cover RHD	Cover	RHD	2
24	91 23 753 Bushing LHD	Bushing	LHD	2
25	91 23 761 Sleeve LHD	Sleeve	LHD	2
26	40 95 626 Wiper arm LHD • LH	Wiper arm	LHD LH	1
26	40 95 634 Wiper arm LHD • RH	Wiper arm	LHD RH	1
26	40 95 659 Wiper arm RHD • LH	Wiper arm	RHD LH	1
26	40 95 642 Wiper arm RHD • RH	Wiper arm	RHD RH	1
27	95 65 912 Cap nut	Cap nut		2
28	55 82 531 93 196 009 Wiper blade LHD • LH \| With spoiler	Wiper blade	LHD LH \| With spoiler	1
28	55 82 556 Wiper blade RHD • RH \| With spoiler	Wiper blade	RHD RH \| With spoiler	1
28	55 82 549 93 195 936 Wiper blade Passenger side.	Wiper blade	Passenger side.	1
28	44 48 049 Wiper blade LHD • Synthetic rubber.	Wiper blade	LHD Synthetic rubber.	2
28	44 48 056 Wiper blade RHD • Synthetic rubber.	Wiper blade	RHD Synthetic rubber.	2
29	Profile Not as separate spare...	Profile	Not as separate spare...	2
30	40 92 748 Spoiler LHD	Spoiler	LHD	1
30	40 93 035 Spoiler RHD	Spoiler	RHD	1
31	40 92 755 Screw	Screw		2
32	40 92 763 Nut	Nut		2
	Profiled rubber kitWiring and fuses	Profiled rubber kitWiring and fuses			X

Pos.	Part No.	Description	Usage	Qty
1	91 23 688 Spindle frame LHD	Spindle frame	LHD	1
1	40 60 497 Spindle frame RHD	Spindle frame	RHD	1
2	91 23 837 Retaining ring	Retaining ring		2
3	91 23 845 Washer	Washer		2
4	91 23 852 O-ring	O-ring		2
6	91 23 894 Washer	Washer		2
7	91 23 662 Electric motor LHD	Electric motor	LHD	1
7	40 60 489 Electric motor RHD	Electric motor	RHD	1
8	95 01 685 Contact housing 2-pin	Contact housing	2-pin	1
9	95 03 327 Contact housing 3-pin	Contact housing	3-pin	1
10	85 47 770 Connector	Connector		5
11	91 23 696 Crank arm LHD • LH	Crank arm	LHD LH	1
12	91 23 704 Crank arm LHD • RH	Crank arm	LHD RH	1
13	40 60 513 Crank arm RHD • LH	Crank arm	RHD LH	1
14	40 60 505 Crank arm RHD • RH	Crank arm	RHD RH	1
15	40 63 574 Bracket RHD	Bracket	RHD	1
16	73 99 900 Hexagon screw	Hexagon screw		4
17	40 63 814 Screw	Screw		3
18	79 77 929 11 900 451 Nut RHD	Nut	RHD	2
19	91 24 751 Bracket	Bracket		1
20	79 69 223 Screw	Screw		2
21	91 23 589 Rubber bushing LHD	Rubber bushing	LHD	2
22	91 23 639 Plug	Plug		1
23	91 23 597 Cover LHD • LH	Cover	LHD LH	1
23	91 23 605 Cover LHD • RH	Cover	LHD RH	1
23	91 23 613 Cover RHD	Cover	RHD	2
24	91 23 753 Bushing LHD	Bushing	LHD	2
25	91 23 761 Sleeve LHD	Sleeve	LHD	2
26	40 95 626 Wiper arm LHD • LH	Wiper arm	LHD LH	1
26	40 95 634 Wiper arm LHD • RH	Wiper arm	LHD RH	1
26	40 95 659 Wiper arm RHD • LH	Wiper arm	RHD LH	1
26	40 95 642 Wiper arm RHD • RH	Wiper arm	RHD RH	1
27	95 65 912 Cap nut	Cap nut		2
28	55 82 531 93 196 009 Wiper blade LHD • LH \| With spoiler	Wiper blade	LHD LH \| With spoiler	1
28	55 82 556 Wiper blade RHD • RH \| With spoiler	Wiper blade	RHD RH \| With spoiler	1
28	55 82 549 93 195 936 Wiper blade Passenger side.	Wiper blade	Passenger side.	1
28	44 48 049 Wiper blade LHD • Synthetic rubber.	Wiper blade	LHD Synthetic rubber.	2
28	44 48 056 Wiper blade RHD • Synthetic rubber.	Wiper blade	RHD Synthetic rubber.	2
29	Profile Not as separate spare...	Profile	Not as separate spare...	2
30	40 92 748 Spoiler LHD	Spoiler	LHD	1
30	40 93 035 Spoiler RHD	Spoiler	RHD	1
31	40 92 755 Screw	Screw		2
32	40 92 763 Nut	Nut		2
	Profiled rubber kitWiring and fuses	Profiled rubber kitWiring and fuses			X
