Question 1

Where to find the exploded diagram for 120-steering on my Saab 9000 1997?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for 120-steering on Saab 9000 1997. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section 120-steering?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section 120-steering?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9000 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section 120-steering, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section 120-steering suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

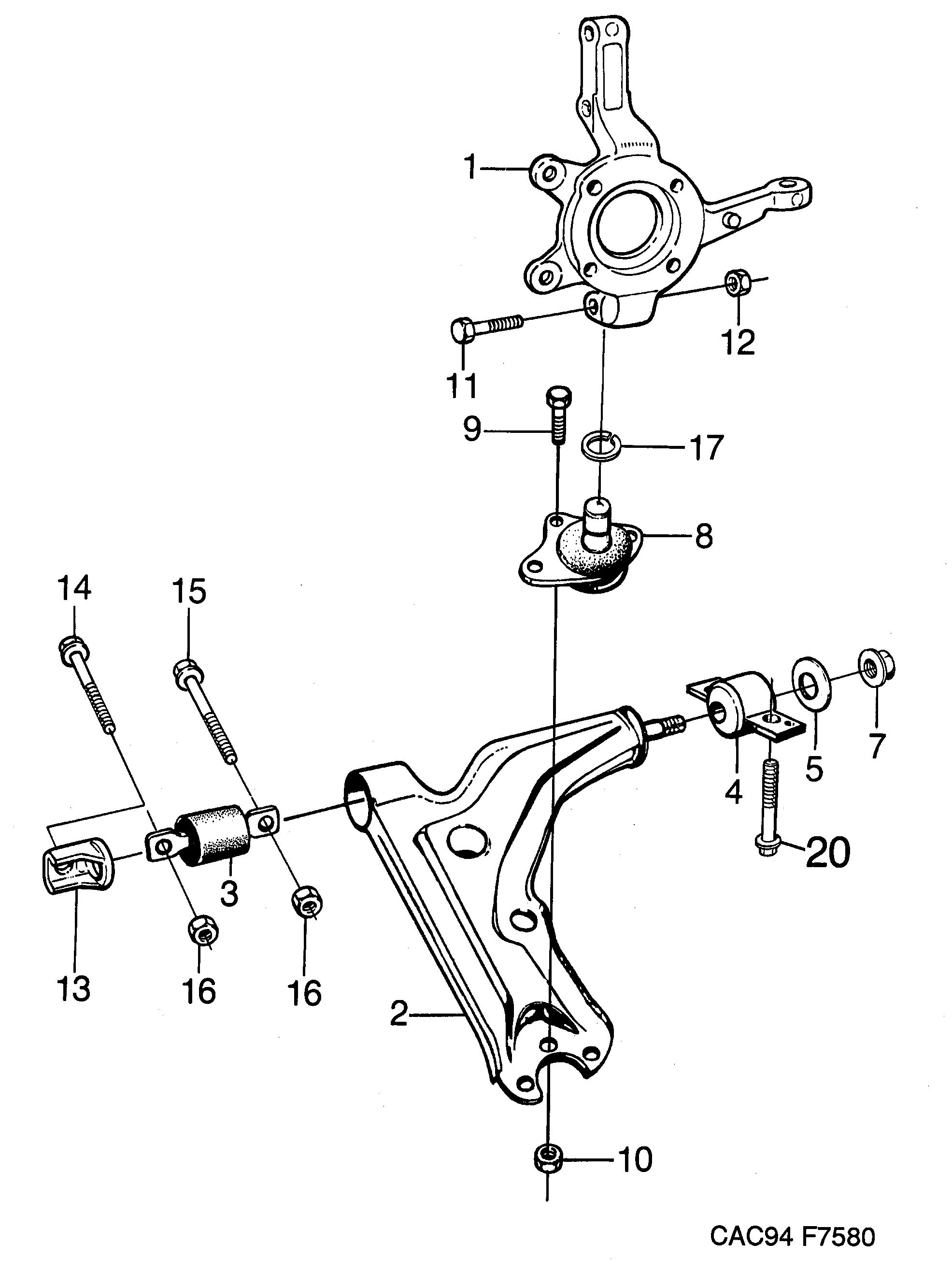

Pos.	Part No.	Description	Usage	Qty
1	89 73 216 Steering knuckle housing LH	Steering knuckle housing	LH	1
1	89 73 224 Steering knuckle housing RH	Steering knuckle housing	RH	1
2	89 58 365 Swivel arm LH	Swivel arm	LH	1
2	89 58 373 Swivel arm RH	Swivel arm	RH	1
3	89 61 476 Bushing	Bushing		2
4	89 65 253 Bearing anchorage	Bearing anchorage		2
5	89 58 779 Washer	Washer		2
7	79 71 765 92 153 201 Nut	Nut		2
8	89 94 212 Ball joint kit Kits	Ball joint kit Kits		2
9	79 82 986 Screw	Screw		6
10	79 75 501 11 066 386 Nut	Nut		6
11	89 65 121 Screw	Screw		2
12	79 77 309 Nut	Nut		2
13	44 26 003 Bearing support	Bearing support		4
14	79 82 036 Screw	Screw		2
15	40 01 111 Screw	Screw		2
16	79 73 464 11 900 437 Nut	Nut		4
17	79 63 168 Lock ring	Lock ring		2
20	ScrewBody shell	ScrewBody shell
