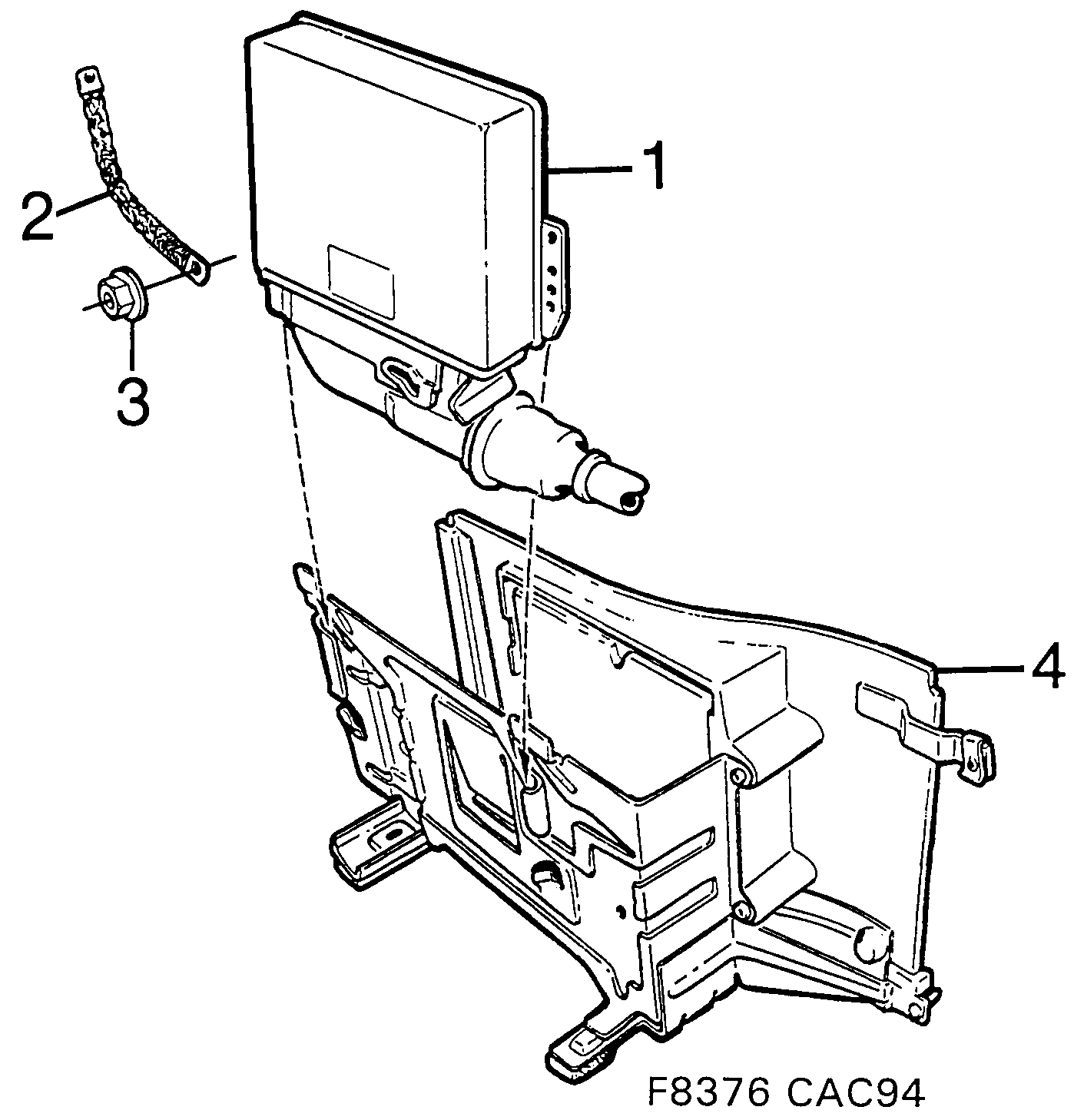

1020: Engine - Fuel system - Engine control module - TRIONIC

(1994 - 1998) | For 9000 (1998)

100%

(N°990)

Section 1020

(N°1050)

Pos.	Part No.	Description	Usage	Qty
1	46 60 833 Engine control module 1996-1998 • B204E	Engine control module	1996-1998 B204E	1
1	46 60 841 Engine control module 1996-1998 • B204E • Anti theft alarm with...	Engine control module	1996-1998 B204E Anti theft alarm with...	1
1	46 61 260 Engine control module 1996-1998 • B204L • Anti theft alarm with...	Engine control module	1996-1998 B204L Anti theft alarm with...	1
1	47 81 878 Engine control module 1997- • B234L	Engine control module	1997- B234L	1
1	47 81 860 Engine control module 1997- • B234L • Anti theft alarm with...	Engine control module	1997- B234L Anti theft alarm with...	1
1	47 81 894 Engine control module 1997- • B234R • Also available as exchange...	Engine control module	1997- B234R Also available as exchange...	1
1	47 81 886 Engine control module 1997- • B234R • Anti theft alarm with...	Engine control module	1997- B234R Anti theft alarm with...	1
1	47 81 852 Engine control module 1997- • B234E • Also available as exchange...	Engine control module	1997- B234E Also available as exchange...	1
1	47 81 845 Engine control module 1997- • B234E • Anti theft alarm with...	Engine control module	1997- B234E Anti theft alarm with...	1
1	47 80 243 Electronic unit 1997-1998, LHD • B234E	Electronic unit	1997-1998, LHD B234E	1
1	47 80 250 Electronic unit 1997-1998, LHD • B234L	Electronic unit	1997-1998, LHD B234L	1
1	47 80 268 Electronic unit 1997-1998, LHD • B234R • Also available as exchange...	Electronic unit	1997-1998, LHD B234R Also available as exchange...	1
1	49 03 894 Engine control module 1996-1998, LHD • B234E • Service solution. High altitude...	Engine control module	1996-1998, LHD B234E Service solution. High altitude...	1
1	49 03 910 Engine control module 1996-1998, LHD • B234L • Service solution. High altitude...	Engine control module	1996-1998, LHD B234L Service solution. High altitude...	1
1	49 03 936 Engine control module 1996-1998, LHD • B234R • Also available as exchange...	Engine control module	1996-1998, LHD B234R Also available as exchange...	1
2	43 01 677 30 554 291 Ground cable	Ground cable		1
3	79 22 354 92 153 219 Screw	Screw		1
4	BracketFuel system	BracketFuel system
