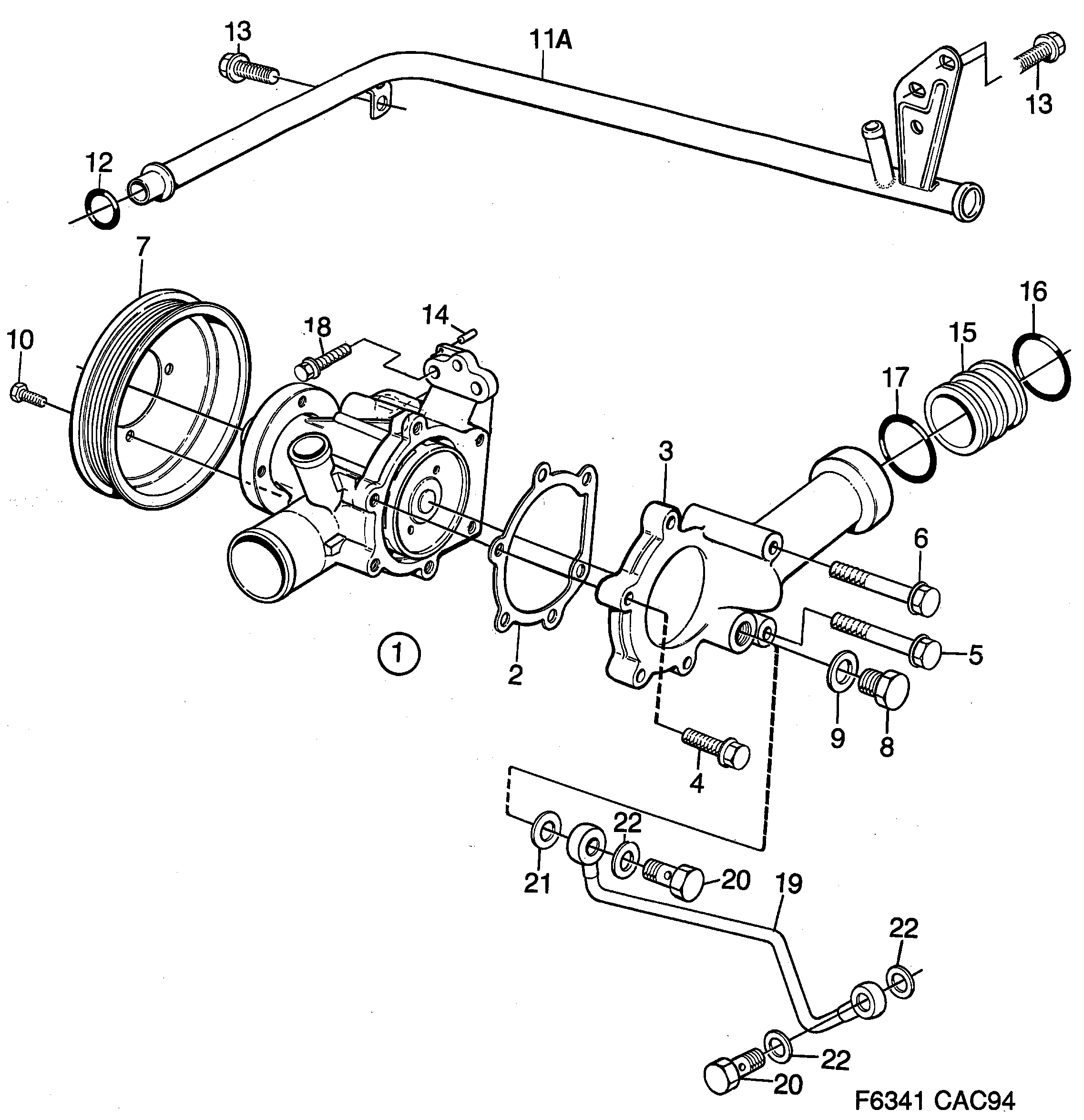

1980: Engine - Cooling system - Coolant pump - 4-cylinder
(1994 - 1998 | PETROL) | For 9000 (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 21 688 | 1 | |
| 2 | 91 13 325 Gasket PETROL | 1 | |
| 3 | 91 14 265 Bracket PETROL | 1 | |
| 4 | 79 70 288 Screw 1996-1998 • PETROL | 4 | |
| 5 | 79 75 238 30 509 216 Screw 1996-1998 • PETROL | 1 | |
| 6 | 79 85 062 Screw 1996-1998 • PETROL | 1 | |
| 7 | 75 65 104 Pulley PETROL | 1 | |
| 8 | 81 23 721 75 63 042 Plug PETROL | 1 | |
| 9 | 75 22 709 Gasket PETROL | 1 | |
| 10 | 81 25 015 79 85 930 Screw 1996-1998 • PETROL | 4 | |
| 11A | 91 49 766 30 551 951 Tube PETROL | 1 | |
| 12 | 30 551 913 O-ring PETROL • (9146598) | 1 | |
| 13 | 79 71 294 Screw PETROL | 3 | |
| 15 | 91 37 514 Tube PETROL | 1 | |
| 16 | 91 46 606 55 562 943 O-ring PETROL | 1 | |
| 17 | 91 46 614 30 551 915 O-ring PETROL | 1 | |
| 18 | 79 78 216 11 900 367 Hexagon screw 1996-1998 • PETROL | 3 | |
| 19 | 91 46 184 Tube TURBO • T25 | 1 | |
| 19 | 91 45 897 Tube TURBO • TD04 | 1 | |
| 20 | 91 36 524 90 490 324 Banjo screw TURBO | 2 | |
| 21 | 83 26 712 41 61 162 Seal TURBO | 1 | |
| 22 | 81 24 133 11 066 422 Gasket TURBO | 3 |
