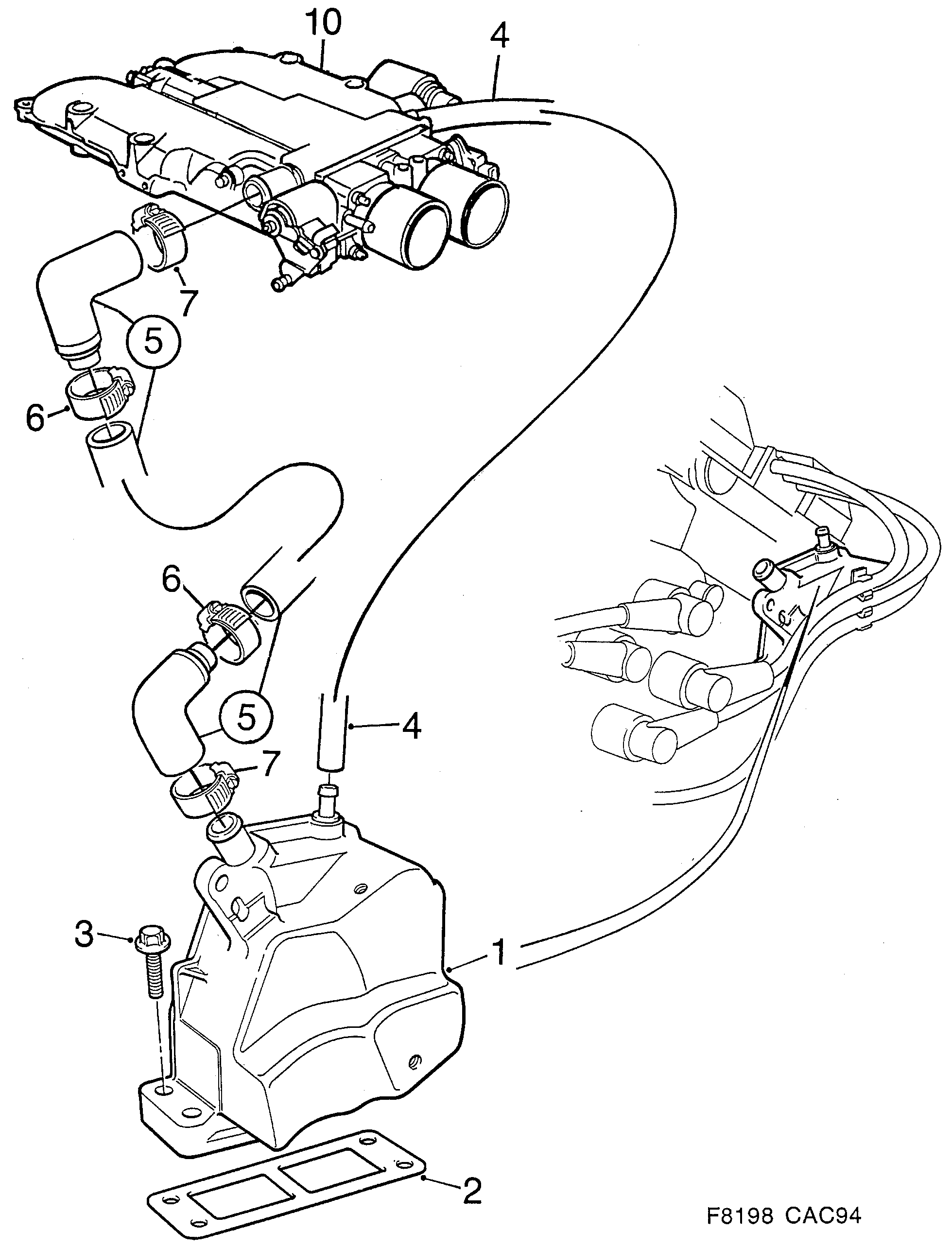

690: Engine - Lubricating system - Crank case ventilation - 6-cylinder
(1994 - 1998 | 6-CYL) | For 9000 (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 47 70 160 90 502 186 Positive crankcase ventilation valve 41 • (4504882) | 1 | |
| 2 | 47 70 202 93 165 267 Flange sealant 1995-1998 • 41 | 1 | |
| 3 | 45 02 753 11 093 953 Screw 41 | 4 | |
| 4 | 90 490 046 Hose 41 • (43 91 975) | 1 | |
| 5 | 45 27 230 Hose 41 | 1 | |
45 27 222 Hose 41 | 2 | ||
| 6 | 45 76 583 90 467 194 Hose clamp 41 | 2 | |
| 7 | 45 76 583 90 467 194 Hose clamp 41 | 2 | |
| 10 | Intake manifoldIntake and exhaust system 41 |
