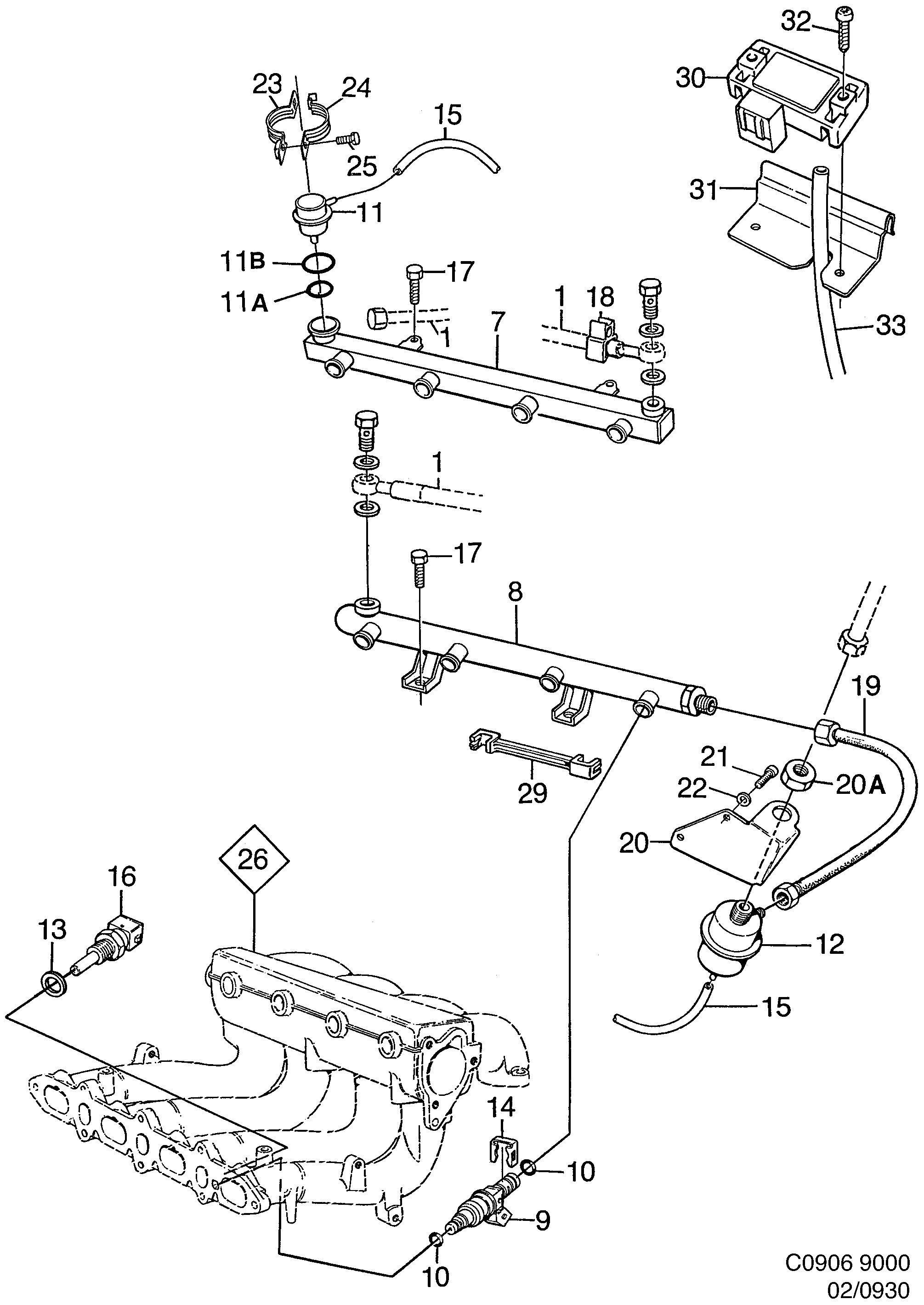

930: Engine - Fuel system - Distribution pipe - 4-cylinder
(1994 - 1998 | PETROL) | For 9000 (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | Fuel pipeFuel system PETROL | 1 | |
| 7 | 91 71 596 Tube 1997- • TURBO | 1 | |
| 8 | 87 88 473 Tube I | 1 | |
| 9 | 91 42 449 30 551 847 Injector TURBO | 4 | |
| 9 | 91 42 423 Injector I | 4 | |
| 10 | 91 97 716 90 541 910 O-ring PETROL | 2 | |
| 11 | 47 70 400 Fuel pressure regulator 1997- • TURBO | 1 | |
| 11A | 90 511 960 Washer 1997- • PETROL • (47 70 434) | 1 | |
| 11B | 90 511 961 O-ring PETROL | 1 | |
| 12 | 74 86 921 Regulator I | 1 | |
| 13 | 41 59 265 44 43 883 Seal PETROL | 1 | |
| 14 | 93 56 486 Clamp PETROL | 4 | |
| 15 | 91 36 243 Vacuum hose TURBO, I • L=130 MM | Sold... | 1 | |
| 16 | 91 77 213 15 393 755 Temperature sensor 1996-1998 • PETROL | 1 | |
| 17 | 79 78 091 11 900 353 Screw 1996-1998 • PETROL | 2 | |
| 18 | 41 58 846 Clamp TURBO | 1 | |
| 19 | 74 86 954 Fuel pipe I | 1 | |
| 20 | 88 58 359 Bracket I | 1 | |
| 20A | 81 51 177 Nut I | 1 | |
| 21 | 79 72 466 Screw I | 2 | |
| 23 | 45 03 819 95 42 424 Clamp 1997- • TURBO | 1 | |
| 25 | 79 78 380 11 900 379 Screw 1997- • TURBO | 1 | |
| 26 | Intake manifoldIntake and exhaust system PETROL | ||
| 26 | Intake manifoldIntake and exhaust system PETROL | ||
| 29 | 91 38 231 Retainer PETROL | 2 | |
| 30 | 91 32 374 Pressure sensor PETROL | 1 | |
| 31 | 41 61 899 Bracket PETROL | 1 | |
| 32 | 79 22 396 Screw PETROL | 2 | |
| 33 | 44 41 945 Vacuum hose TURBO | 1 | |
| 33 | 43 91 942 Vacuum hose I | 1 | |
91 36 243 Vacuum hose PETROL • L=5000 MM | Sold... | X |
