Pos.	Part No.	Description	Usage	Qty
11	85 35 692 Bulb 40/238 304 000	Bulb	40/238 304 000	1
12	95 51 953 Seal	Seal		1
16	40 14 429 Stop light 1995-1995	Stop light	1995-1995	1
17	40 14 452 Socket, bulb	Socket, bulb		1
18	40 14 478 Sealing strip	Sealing strip		1
19	95 12 880 93 190 471 Bulb	Bulb		2
19A	95 12 880 93 190 471 Bulb	Bulb		2
19B	44 48 999 Socket, bulb	Socket, bulb		4
20	46 73 273 Lens 1995-	Lens	1995-	1
20	46 73 281 Lens 1995- • With rear window wiper.	Lens	1995- With rear window wiper.	1
21	79 74 025 Screw	Screw		2
22	73 98 423 Nut	Nut		4
23	GrommetElectric equipment, other Body Style: 5CS • high mounted brake light	GrommetElectric equipment, other Body Style: 5CS • high mounted brake light
24	NozzleElectric equipment, other Body Style: 5CS	NozzleElectric equipment, other Body Style: 5CS

Pos.	Part No.	Description	Usage	Qty
11	85 35 692 Bulb 40/238 304 000	Bulb	40/238 304 000	1
12	95 51 953 Seal	Seal		1
16	40 14 429 Stop light 1995-1995	Stop light	1995-1995	1
17	40 14 452 Socket, bulb	Socket, bulb		1
18	40 14 478 Sealing strip	Sealing strip		1
19	95 12 880 93 190 471 Bulb	Bulb		2
19A	95 12 880 93 190 471 Bulb	Bulb		2
19B	44 48 999 Socket, bulb	Socket, bulb		4
20	46 73 273 Lens 1995-	Lens	1995-	1
20	46 73 281 Lens 1995- • With rear window wiper.	Lens	1995- With rear window wiper.	1
21	79 74 025 Screw	Screw		2
22	73 98 423 Nut	Nut		4
23	GrommetElectric equipment, other Body Style: 5CS • high mounted brake light	GrommetElectric equipment, other Body Style: 5CS • high mounted brake light
24	NozzleElectric equipment, other Body Style: 5CS	NozzleElectric equipment, other Body Style: 5CS

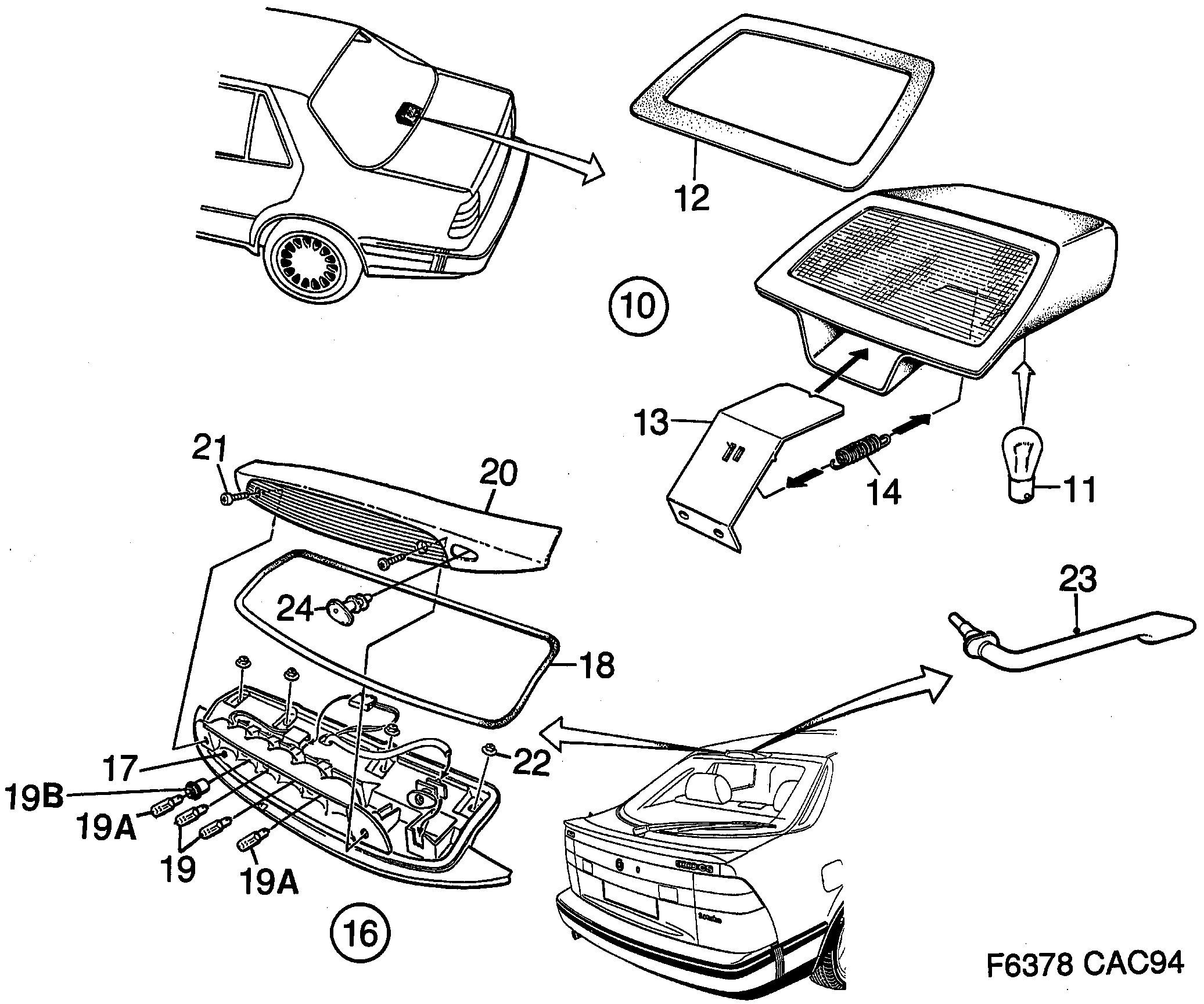

810: Electrical, general - Lighting - Stop light - High mounted
