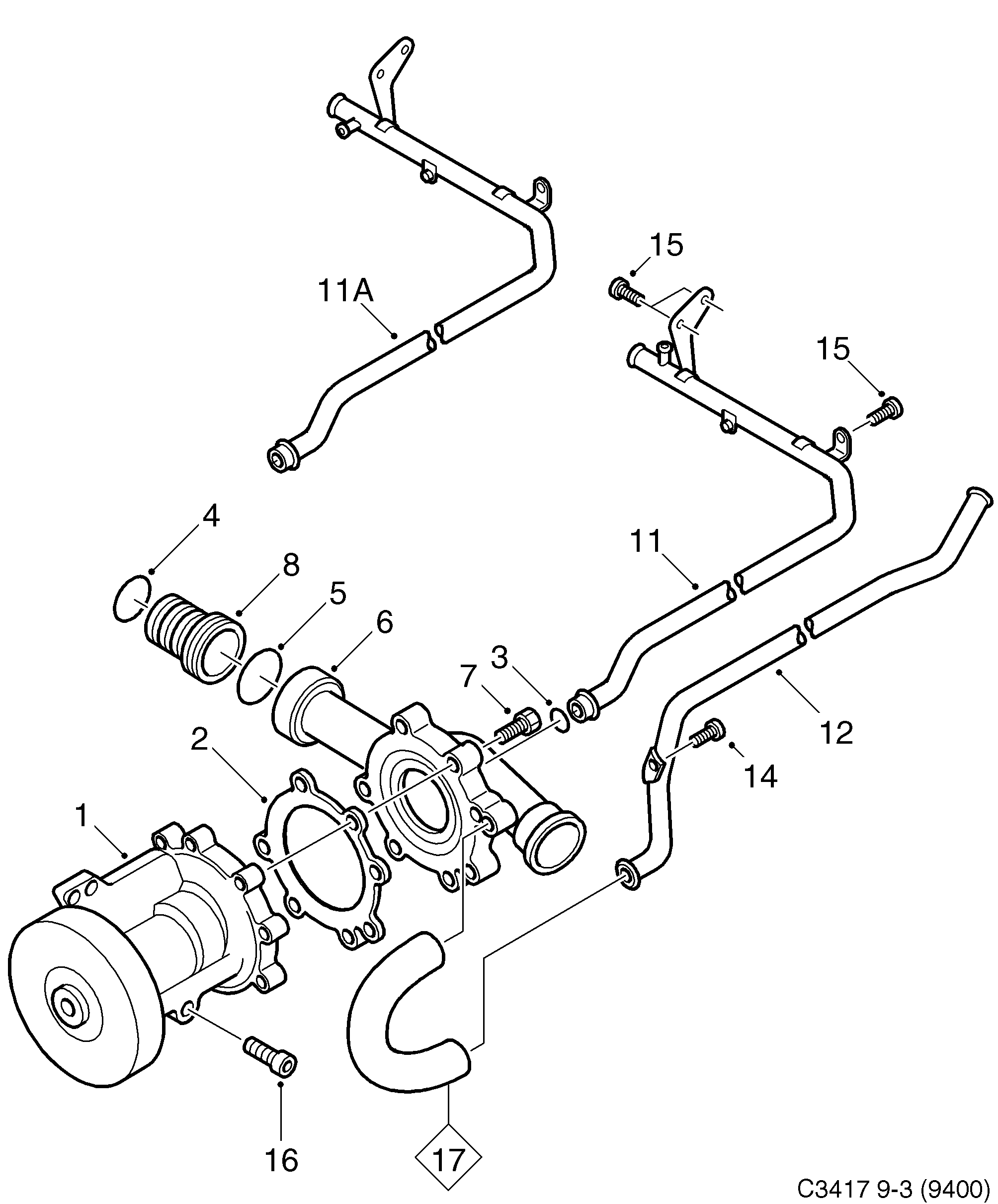

1330: Engine - Cooling system - Coolant pump
(1998 - 2003 | PETROL) | For 9-3 (9400) (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 88 22 793 93 166 829 Coolant pump 1998-2000 • PETROL • Please note - replacement... | 1 | |
| 2 | 91 44 767 Gasket PETROL | 1 | |
| 3 | 30 551 913 O-ring PETROL • (9146598) | 1 | |
| 4 | 91 46 606 55 562 943 O-ring PETROL | 1 | |
| 5 | 91 46 614 30 551 915 O-ring 1998-2000 • PETROL | 1 | |
| 6 | 91 87 691 Pump connection 1998-2000 • PETROL | 1 | |
| 7 | 80 59 586 92 151 823 Screw PETROL | 7 | |
| 7 | 92 151 823 Screw PETROL | 7 | |
| 8 | 91 37 514 Tube 1998-2000 • PETROL | 1 | |
| 11 | 91 46 549 30 551 912 Tube 1998-2002 • PETROL | 1 | |
| 12 | 91 46 523 55 559 405 Tube PETROL | 1 | |
| 14 | 79 78 109 11 900 354 Screw PETROL | 1 | |
| 15 | 79 71 294 Screw 1998-2002 • PETROL | 3 | |
| 16 | 79 78 216 11 900 367 Hexagon screw PETROL | 3 | |
| 17 | Radiator hoseIntake and exhaust system PETROL | 1 |
