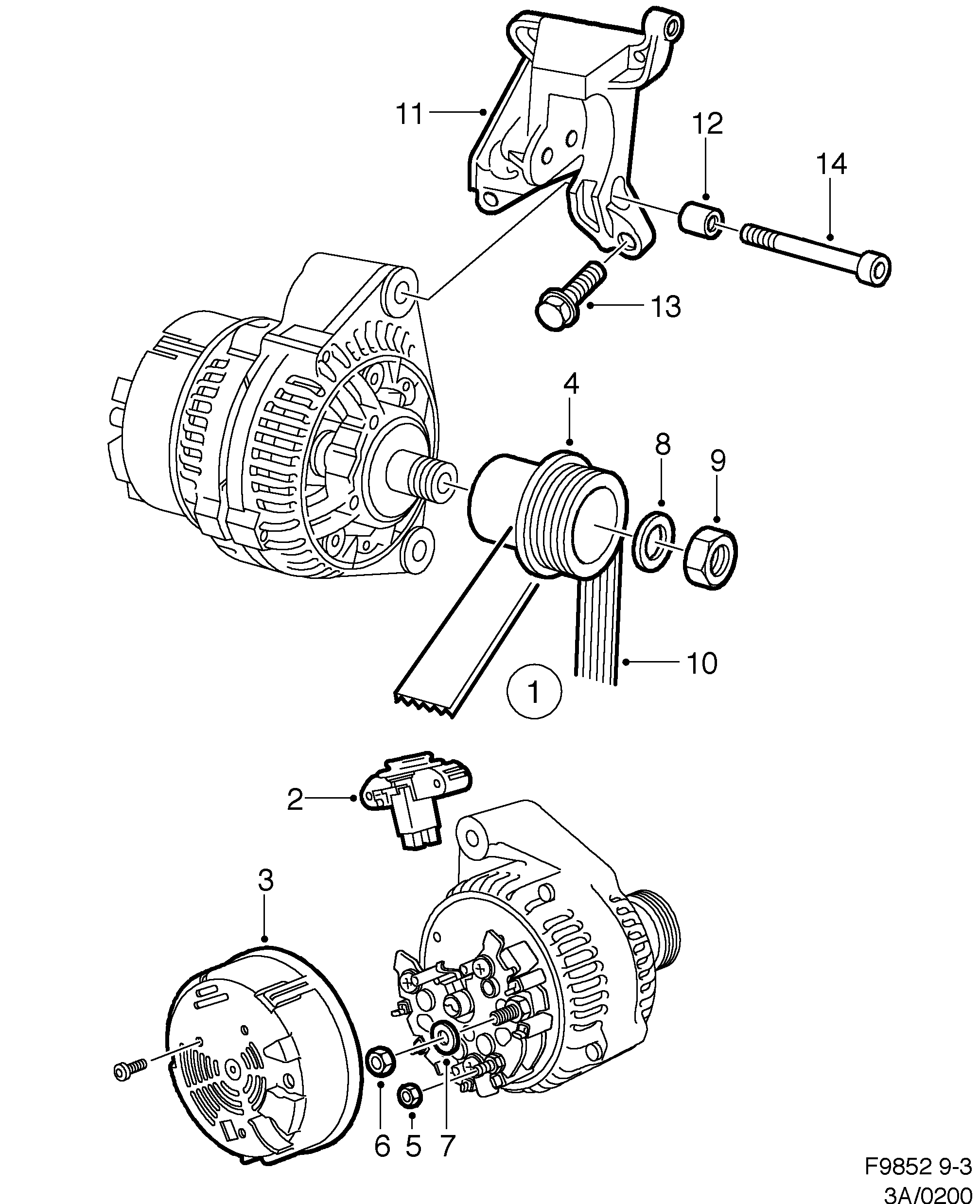

200: Electrical, general - Generator - Bosch 130A/140A
(1998 - 2003 | PETROL) | For 9-3 (9400) (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 49 41 761 56 01 307 Generator -2000 • PETROL • 130 A | Also... | 1 | |
| 2 | 47 37 151 52 46 863 Voltage regulator -2000 • PETROL • 130 A | 1 | |
| 3 | 44 09 991 Protection -2001 • PETROL • 130 A | 1 | |
| 4 | 44 10 007 12 770 125 Pulley PETROL | 1 | |
| 5 | 79 77 911 32 026 207 Nut PETROL | 1 | |
| 6 | 79 77 952 11 900 452 Hexagon nut PETROL | 1 | |
| 7 | 73 11 764 Washer PETROL | 1 | |
| 8 | 44 89 316 Washer PETROL | 1 | |
| 9 | 44 89 308 Nut PETROL | 1 | |
| 10 | BeltShort block PETROL | ||
| 11 | 49 61 348 51 71 368 Bracket -1999 • PETROL | 1 | |
| 12 | 75 93 080 Bushing PETROL | 1 | |
| 13 | 79 78 216 11 900 367 Hexagon screw PETROL | 4 | |
| 14 | 80 98 378 Screw PETROL | 2 |
