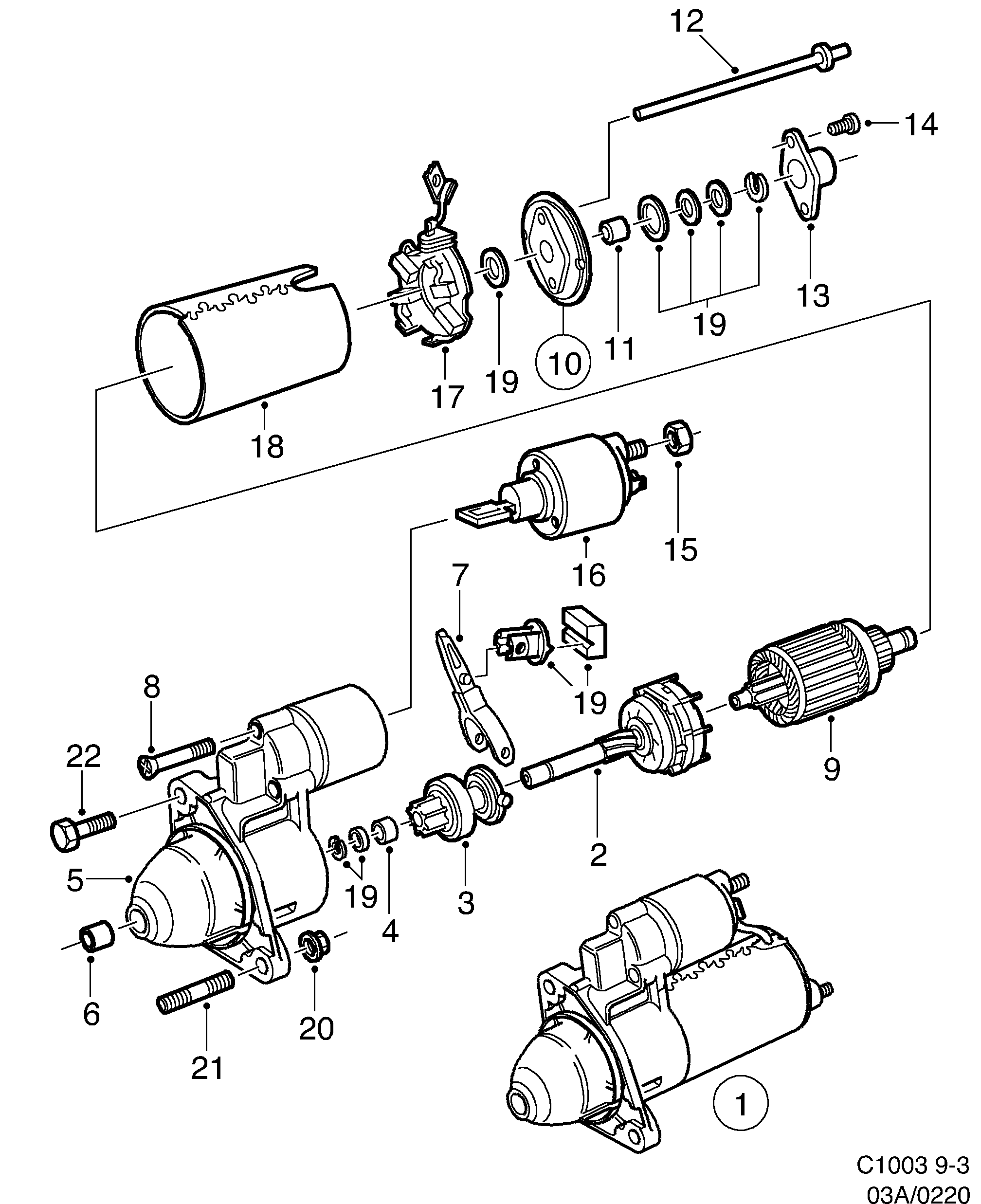

220: Electrical, general - Starter motor
(1998 - 1999 | PETROL) | For 9-3 (9400) (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 42 35 610 Starter motor PETROL • Also available as exchange... | 1 | |
| 2 | 75 35 255 Planetary gear PETROL | 1 | |
| 3 | 41 60 099 Drive gear PETROL | 1 | |
| 4 | 75 27 732 Bearing bushing PETROL | 2 | |
| 5 | 44 43 750 Gear house PETROL • Not as separate spare... | 1 | |
| 6 | 75 27 757 Bearing bushing PETROL | 1 | |
| 7 | 75 27 765 Engagement lever PETROL • Not as separate spare... | 1 | |
| 8 | 75 35 271 Screw PETROL | 3 | |
| 9 | 44 43 768 Rotor PETROL • Not as separate spare... | 1 | |
| 10 | 75 35 297 Ball bearing PETROL • Not as separate spare... | 1 | |
| 11 | 75 27 807 Bearing bushing PETROL | 1 | |
| 12 | 75 35 305 Screw PETROL • Not as separate spare... | 2 | |
| 13 | 75 35 313 Cap PETROL • Not as separate spare... | 1 | |
| 14 | 75 35 321 Screw PETROL • Not as separate spare... | 2 | |
| 15 | 75 35 339 Nut PETROL • Not as separate spare... | 1 | |
| 16 | 44 43 776 Actuator solenoid PETROL | 1 | |
| 17 | 44 43 784 Plate PETROL | 1 | |
| 18 | 75 27 872 Casing PETROL • Not as separate spare... | 1 | |
| 19 | 75 27 880 Kit PETROL | 1 | |
| 20 | 79 84 776 92 150 135 Flange nut PETROL | 1 | |
| 21 | 79 71 112 92 151 911 Stud PETROL | 1 | |
| 22 | 79 84 297 55 557 007 Screw PETROL | 1 |
