Pos.	Part No.	Description	Usage	Qty
1	48 31 061 Tail lamp 1998-2002 • LH	Tail lamp	1998-2002 LH	1
1	48 31 095 Tail lamp 1998-2002 • RH	Tail lamp	1998-2002 RH	1
1	48 31 129 Tail lamp LH	Tail lamp	LH	1
1	48 31 137 Tail lamp RH	Tail lamp	RH	1
1A	48 31 087 Seal	Seal		2
2	48 31 079 Socket, bulb LH	Socket, bulb	LH	1
2	48 31 103 Socket, bulb RH	Socket, bulb	RH	1
3	44 68 930 93 190 465 Bulb	Bulb		1
4	43 20 594 93 190 467 Bulb	Bulb		1
5	43 20 594 93 190 467 Bulb	Bulb		1
6	79 77 929 11 900 451 Nut	Nut		6
7	46 75 419 Lamp LH	Lamp	LH	1
7	46 75 401 Lamp RH	Lamp	RH	1
7	46 75 393 Lamp LHD • LH \| With rear...	Lamp	LHD LH \| With rear...	1
7	46 75 427 Lamp RHD • RH \| With rear...	Lamp	RHD RH \| With rear...	1
8	48 31 152 Socket, bulb LH	Socket, bulb	LH	1
8	48 31 186 Socket, bulb RH	Socket, bulb	RH	1
9	71 54 719 93 169 011 Bulb With rear fog light.	Bulb	With rear fog light.	1
10	71 54 719 93 169 011 Bulb	Bulb		2
11	44 69 102 Sealing collar RH	Sealing collar	RH	1
12	79 77 929 11 900 451 Nut LH	Nut	LH	3
15	49 40 284 Screw	Screw		4
16	51 11 927 Lens	Lens		2
17	95 12 880 93 190 471 Bulb	Bulb		4
18	51 11 935 Seal	Seal		2
19	51 11 943 Seal Handle	Seal	Handle	1
20	Outside handleDoors, boot lid Body Style: 3D, 5D	Outside handleDoors, boot lid Body Style: 3D, 5D
20	Outside handleDoors, boot lid Body Style: CV	Outside handleDoors, boot lid Body Style: CV

Pos.	Part No.	Description	Usage	Qty
1	48 31 061 Tail lamp 1998-2002 • LH	Tail lamp	1998-2002 LH	1
1	48 31 095 Tail lamp 1998-2002 • RH	Tail lamp	1998-2002 RH	1
1	48 31 129 Tail lamp LH	Tail lamp	LH	1
1	48 31 137 Tail lamp RH	Tail lamp	RH	1
1A	48 31 087 Seal	Seal		2
2	48 31 079 Socket, bulb LH	Socket, bulb	LH	1
2	48 31 103 Socket, bulb RH	Socket, bulb	RH	1
3	44 68 930 93 190 465 Bulb	Bulb		1
4	43 20 594 93 190 467 Bulb	Bulb		1
5	43 20 594 93 190 467 Bulb	Bulb		1
6	79 77 929 11 900 451 Nut	Nut		6
7	46 75 419 Lamp LH	Lamp	LH	1
7	46 75 401 Lamp RH	Lamp	RH	1
7	46 75 393 Lamp LHD • LH \| With rear...	Lamp	LHD LH \| With rear...	1
7	46 75 427 Lamp RHD • RH \| With rear...	Lamp	RHD RH \| With rear...	1
8	48 31 152 Socket, bulb LH	Socket, bulb	LH	1
8	48 31 186 Socket, bulb RH	Socket, bulb	RH	1
9	71 54 719 93 169 011 Bulb With rear fog light.	Bulb	With rear fog light.	1
10	71 54 719 93 169 011 Bulb	Bulb		2
11	44 69 102 Sealing collar RH	Sealing collar	RH	1
12	79 77 929 11 900 451 Nut LH	Nut	LH	3
15	49 40 284 Screw	Screw		4
16	51 11 927 Lens	Lens		2
17	95 12 880 93 190 471 Bulb	Bulb		4
18	51 11 935 Seal	Seal		2
19	51 11 943 Seal Handle	Seal	Handle	1
20	Outside handleDoors, boot lid Body Style: 3D, 5D	Outside handleDoors, boot lid Body Style: 3D, 5D
20	Outside handleDoors, boot lid Body Style: CV	Outside handleDoors, boot lid Body Style: CV

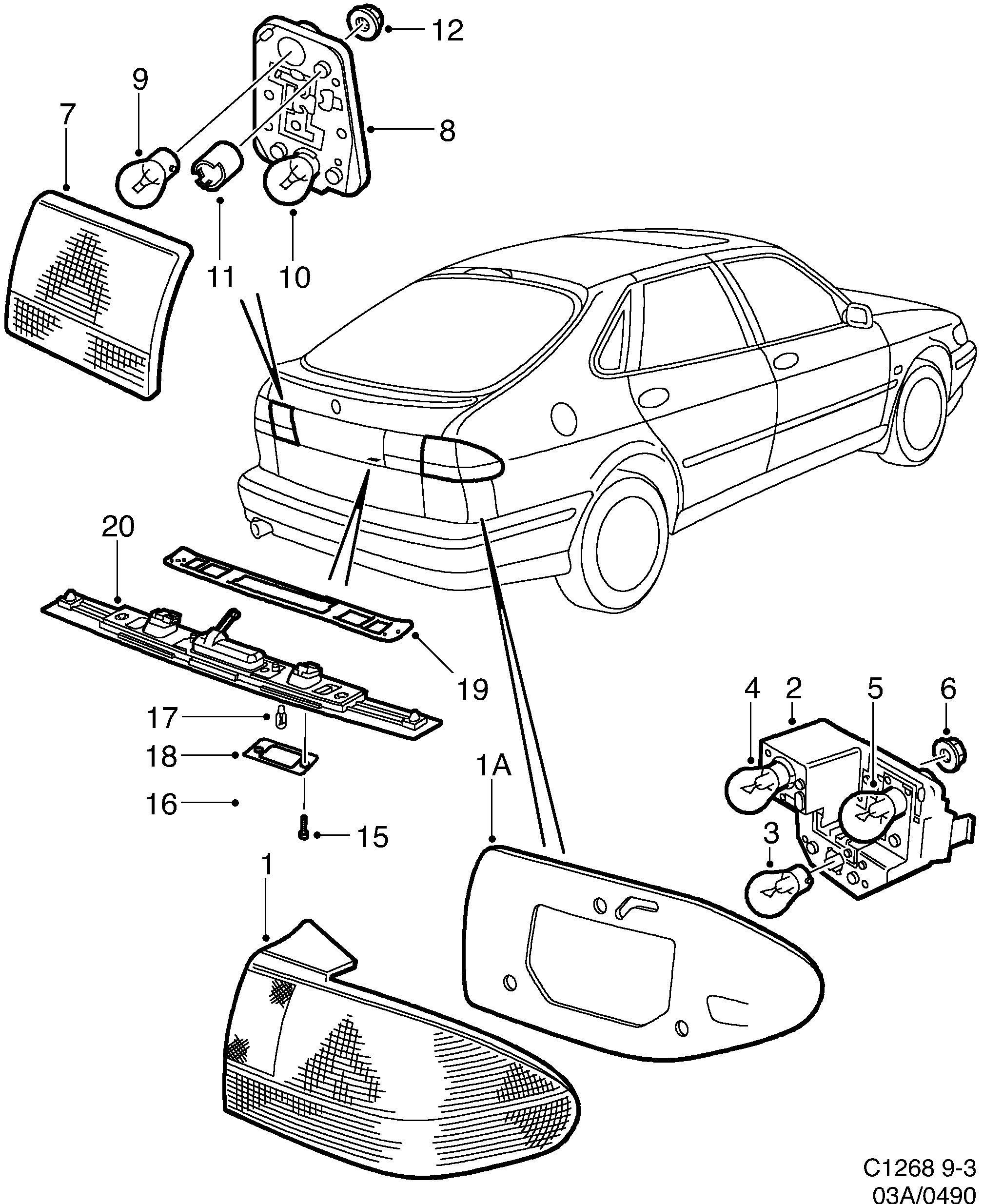

490: Electrical, general - Lighting - Tail lamp
