Question 1

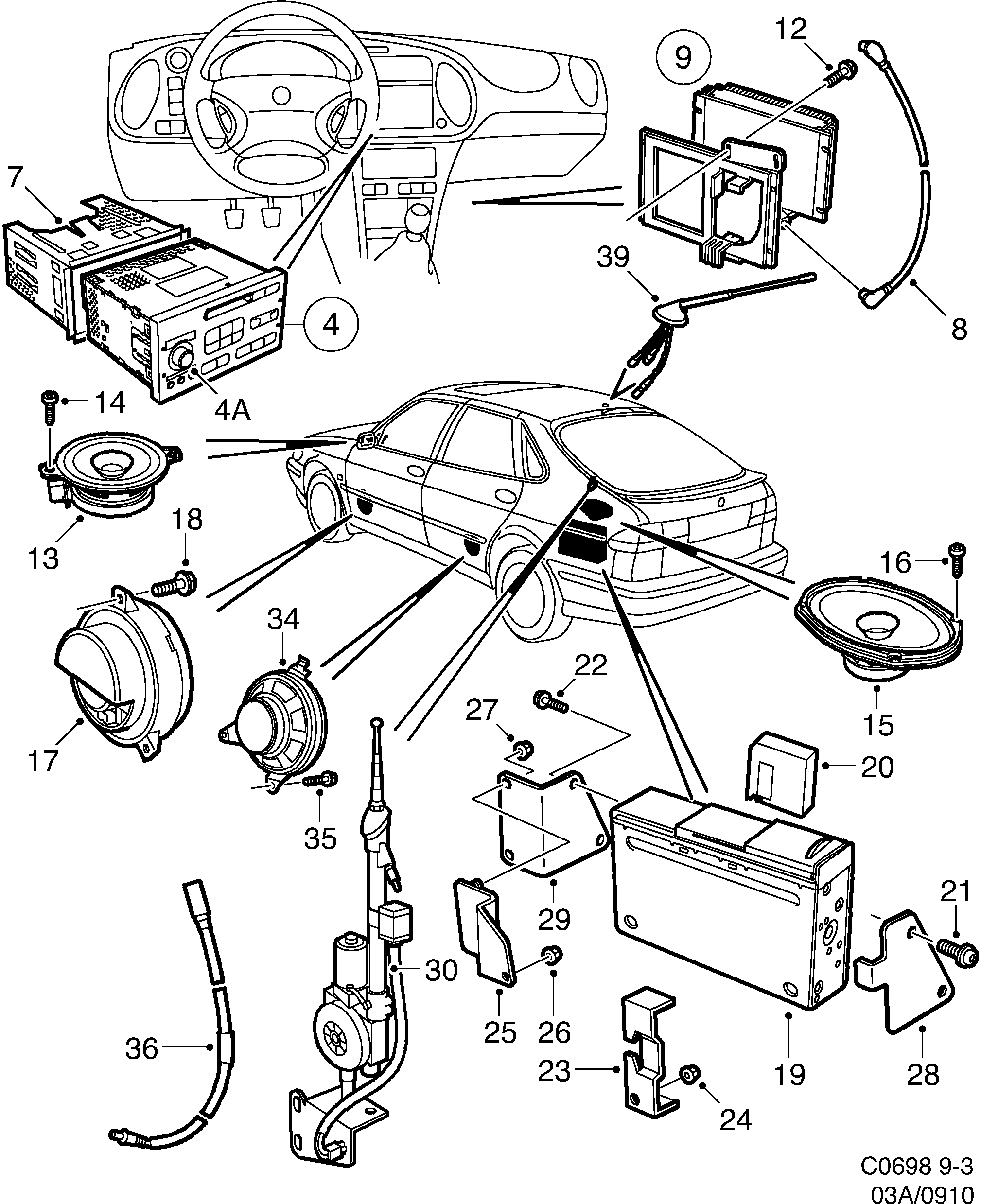

Where to find the exploded diagram for Electric equipment, other on my Saab 9-3 (9400) 1998?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 9-3 (9400) 1998. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
4	47 10 315 Radio 1998-1998, RHD • With cassette player	Radio	1998-1998, RHD With cassette player	1
4	47 10 331 Radio 1998-1998 • With CD-player.	Radio	1998-1998 With CD-player.	1
4	47 10 364 Radio 1998-1998 • With CD-player.	Radio	1998-1998 With CD-player.	1
4	47 10 356 50 43 252 Radio 1998-1998 • With CD-player.	Radio	1998-1998 With CD-player.	1
4	47 10 349 53 72 347 Radio -1999, LHD • With CD-player.	Radio	-1999, LHD With CD-player.	1
4	47 10 323 50 43 260 Radio -1999, LHD • With cassette player	Radio	-1999, LHD With cassette player	1
4A	Button Spare buttons for the...	Button	Spare buttons for the...	X
7	49 47 123 Cage	Cage		1
8	42 32 807 Cable harness With door loudspeaker. radio-amplifier	Cable harness	With door loudspeaker. radio-amplifier	1
9	47 12 626 93 167 062 Amplifier LHD • With door loudspeaker.	Amplifier	LHD With door loudspeaker.	1
9	47 12 618 Amplifier RHD • With door loudspeaker.	Amplifier	RHD With door loudspeaker.	1
12	79 22 495 Screw With door loudspeaker.	Screw	With door loudspeaker.	2
13	47 12 675 Loudspeaker -1999, LHD	Loudspeaker	-1999, LHD	2
14	79 22 354 92 153 219 Screw	Screw		4
15	47 12 659 Loudspeaker	Loudspeaker		2
16	79 70 304 Screw -1999	Screw	-1999	8
17	47 12 642 Loudspeaker With door loudspeaker.	Loudspeaker	With door loudspeaker.	2
18	79 78 422 Screw With door loudspeaker.	Screw	With door loudspeaker.	6
19	46 17 072 400126470 CD-player -1999	CD-player	-1999	1
20	47 11 255 400110235 CD magazine	CD magazine		1
21	84 41 503 Screw	Screw		2
22	84 41 503 Screw	Screw		2
23	44 12 730 Bracket	Bracket		1
24	79 77 929 11 900 451 Nut	Nut		2
25	44 28 207 Bracket	Bracket		1
26	79 77 929 11 900 451 Nut	Nut		2
27	79 77 929 11 900 451 Nut	Nut		2
28	48 12 814 Bracket	Bracket		1
29	48 12 806 Bracket	Bracket		1
30	AntennaElectric equipment, other	AntennaElectric equipment, other
34	47 12 667 Loudspeaker	Loudspeaker		2
35	79 22 438 Screw	Screw		4
36	Antenna cableElectric equipment, other	Antenna cableElectric equipment, other
39	AntennaElectric equipment, other	AntennaElectric equipment, other

Pos.	Part No.	Description	Usage	Qty
4	47 10 315 Radio 1998-1998, RHD • With cassette player	Radio	1998-1998, RHD With cassette player	1
4	47 10 331 Radio 1998-1998 • With CD-player.	Radio	1998-1998 With CD-player.	1
4	47 10 364 Radio 1998-1998 • With CD-player.	Radio	1998-1998 With CD-player.	1
4	47 10 356 50 43 252 Radio 1998-1998 • With CD-player.	Radio	1998-1998 With CD-player.	1
4	47 10 349 53 72 347 Radio -1999, LHD • With CD-player.	Radio	-1999, LHD With CD-player.	1
4	47 10 323 50 43 260 Radio -1999, LHD • With cassette player	Radio	-1999, LHD With cassette player	1
4A	Button Spare buttons for the...	Button	Spare buttons for the...	X
7	49 47 123 Cage	Cage		1
8	42 32 807 Cable harness With door loudspeaker. radio-amplifier	Cable harness	With door loudspeaker. radio-amplifier	1
9	47 12 626 93 167 062 Amplifier LHD • With door loudspeaker.	Amplifier	LHD With door loudspeaker.	1
9	47 12 618 Amplifier RHD • With door loudspeaker.	Amplifier	RHD With door loudspeaker.	1
12	79 22 495 Screw With door loudspeaker.	Screw	With door loudspeaker.	2
13	47 12 675 Loudspeaker -1999, LHD	Loudspeaker	-1999, LHD	2
14	79 22 354 92 153 219 Screw	Screw		4
15	47 12 659 Loudspeaker	Loudspeaker		2
16	79 70 304 Screw -1999	Screw	-1999	8
17	47 12 642 Loudspeaker With door loudspeaker.	Loudspeaker	With door loudspeaker.	2
18	79 78 422 Screw With door loudspeaker.	Screw	With door loudspeaker.	6
19	46 17 072 400126470 CD-player -1999	CD-player	-1999	1
20	47 11 255 400110235 CD magazine	CD magazine		1
21	84 41 503 Screw	Screw		2
22	84 41 503 Screw	Screw		2
23	44 12 730 Bracket	Bracket		1
24	79 77 929 11 900 451 Nut	Nut		2
25	44 28 207 Bracket	Bracket		1
26	79 77 929 11 900 451 Nut	Nut		2
27	79 77 929 11 900 451 Nut	Nut		2
28	48 12 814 Bracket	Bracket		1
29	48 12 806 Bracket	Bracket		1
30	AntennaElectric equipment, other	AntennaElectric equipment, other
34	47 12 667 Loudspeaker	Loudspeaker		2
35	79 22 438 Screw	Screw		4
36	Antenna cableElectric equipment, other	Antenna cableElectric equipment, other
39	AntennaElectric equipment, other	AntennaElectric equipment, other

910: Electrical, general - Electric equipment, other - Audio system
