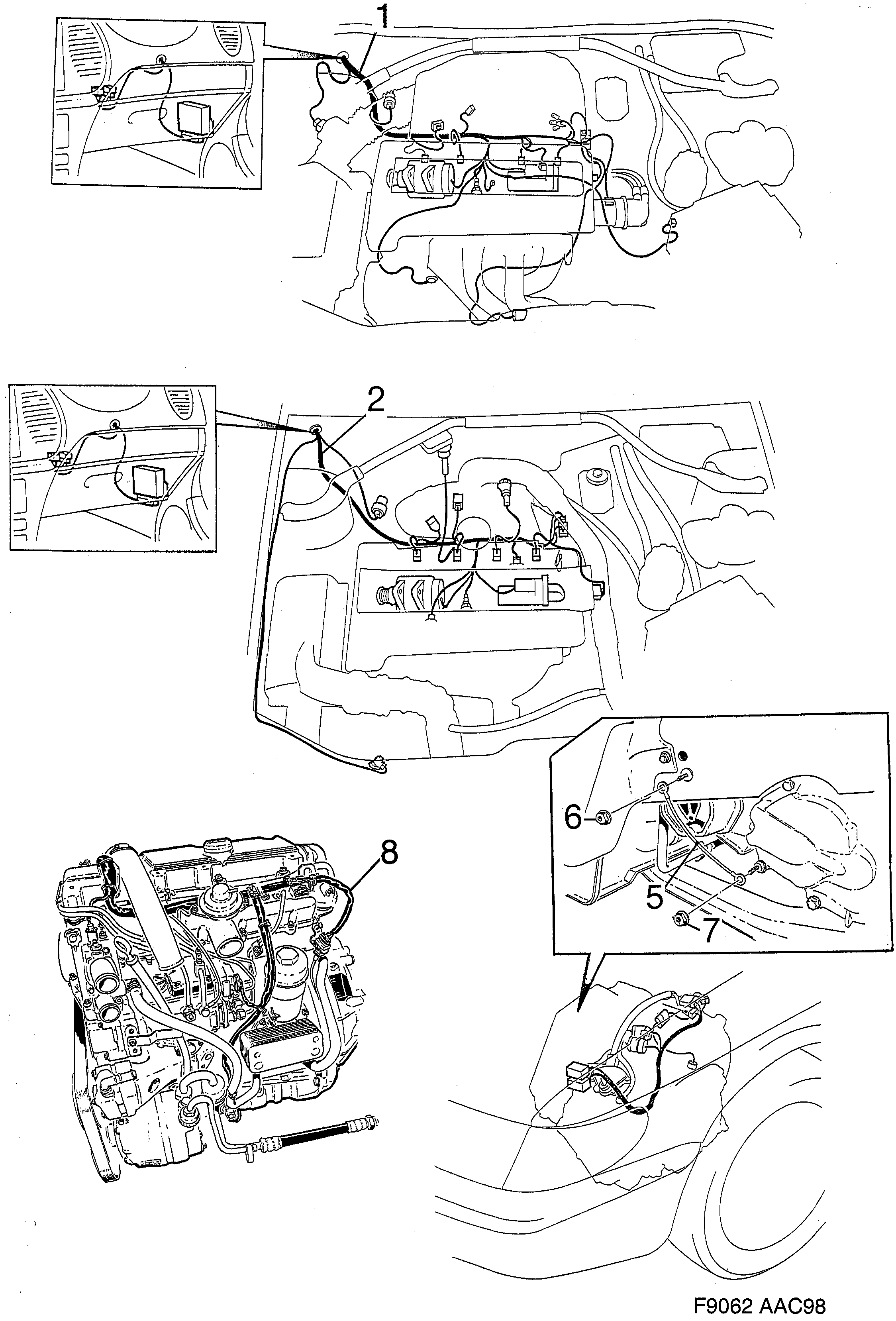

970: Electrical, general - Wiring and fuses - Engine, gearbox
(1998) | For 9-3 (9400) (1998)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 48 07 855 Cable harness I • engine | 1 | |
| 1 | 48 07 863 Cable harness I • engine | 1 | |
| 2 | 49 42 454 Cable harness B204L • engine | 1 | |
| 2 | 49 42 447 Cable harness B204L • engine | 1 | |
| 5 | 46 65 998 Ground cable | 1 | |
| 6 | 79 77 952 11 900 452 Hexagon nut | 1 | |
| 7 | 79 77 929 11 900 451 Nut | 1 | |
| 8 | 48 06 584 Cable harness D223L | 1 |
