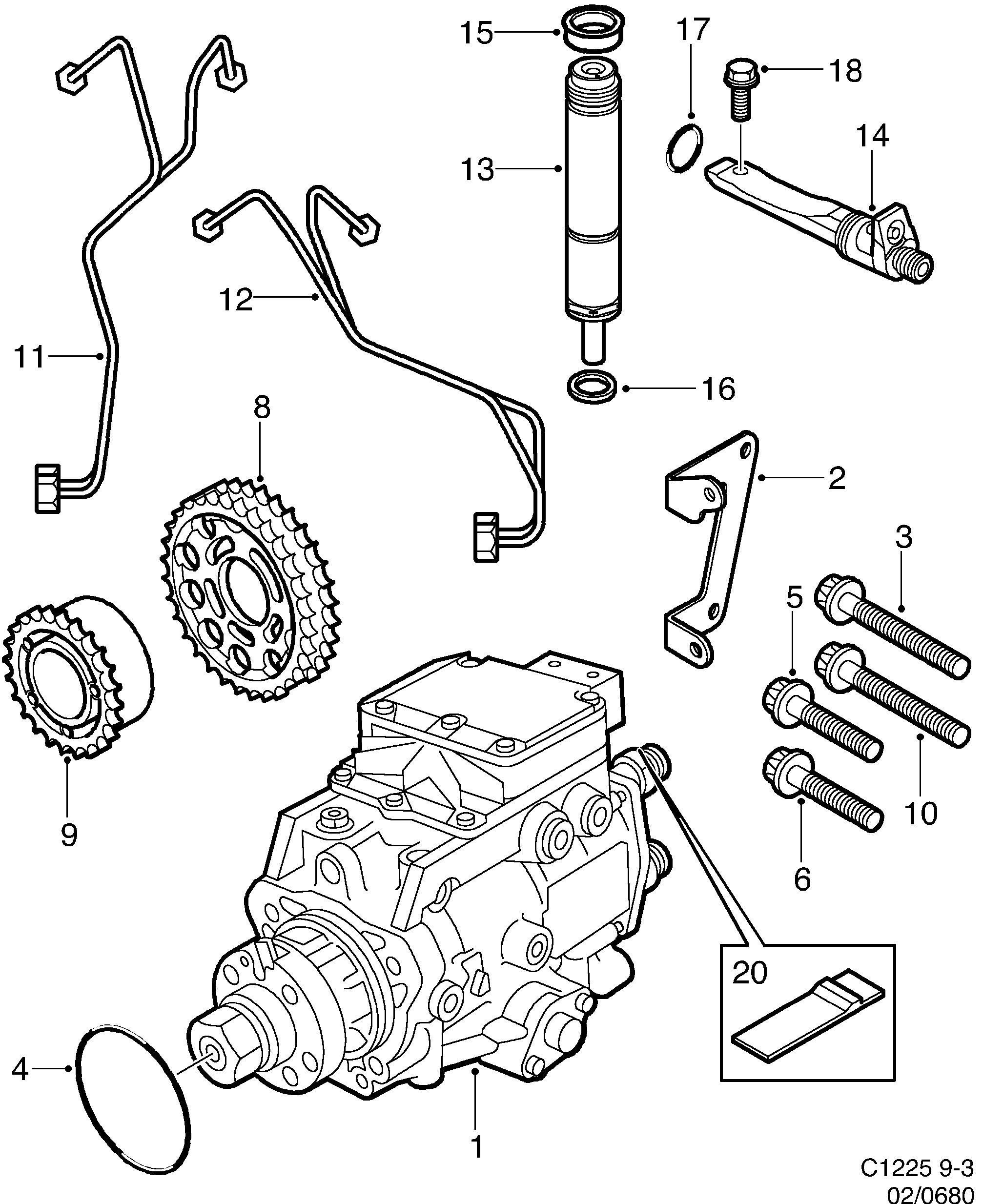

680: Engine - Fuel system - Injection pump - Injection valve
(1998 - 2002 | D223L) | For 9-3 (9400) (1999)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 47 73 206 Injection pump 1998-2001 • D223L • Also available as exchange... | 1 | |
| 2 | 90 500 946 Bracket -2001 • D223L • (47 73 214) | 1 | |
| 3 | 95 43 992 90 502 873 Screw D223L • (47 73 164) M8... | 4 | |
| 4 | 47 73 255 24 416 344 Seal -2001 • D223L | 1 | |
| 5 | 47 73 156 11 096 811 Screw D223L • M8 X 20 | 2 | |
| 6 | 95 44 057 11 095 071 Screw D223L • (47 73 172) M10... | 2 | |
| 8 | 47 73 289 24 410 175 Chain gear -2001 • D223L | 1 | |
| 9 | 47 73 297 90 500 699 Chain gear -2001 • D223L | 1 | |
| 10 | 47 73 719 11 096 483 Screw 1999-2002 • D223L • M8 X 45 | 4 | |
| 12 | 47 73 321 24 423 393 Injection pipe -2001 • D223L • Cyl. 1, 2 | 1 | |
| 11 | 47 73 339 24 423 394 Injection pipe -2001 • D223L • Cyl. 3, 4 | 1 | |
| 13 | 47 72 323 91 17 808 Injector -2001 • D223L | 4 | |
| 14 | 95 42 911 90 573 868 Carrier D223L • (47 72 356) | 4 | |
| 15 | 95 42 903 90 502 704 Seal D223L • (47 72 349) | 4 | |
| 16 | 95 42 895 91 17 693 Seal D223L • (47 72 331) | 4 | |
| 17 | 95 42 929 90 500 732 O-ring D223L • (47 72 364) | 4 | |
| 18 | 95 42 937 11 096 852 Screw D223L • (47 72 372) | 4 |
