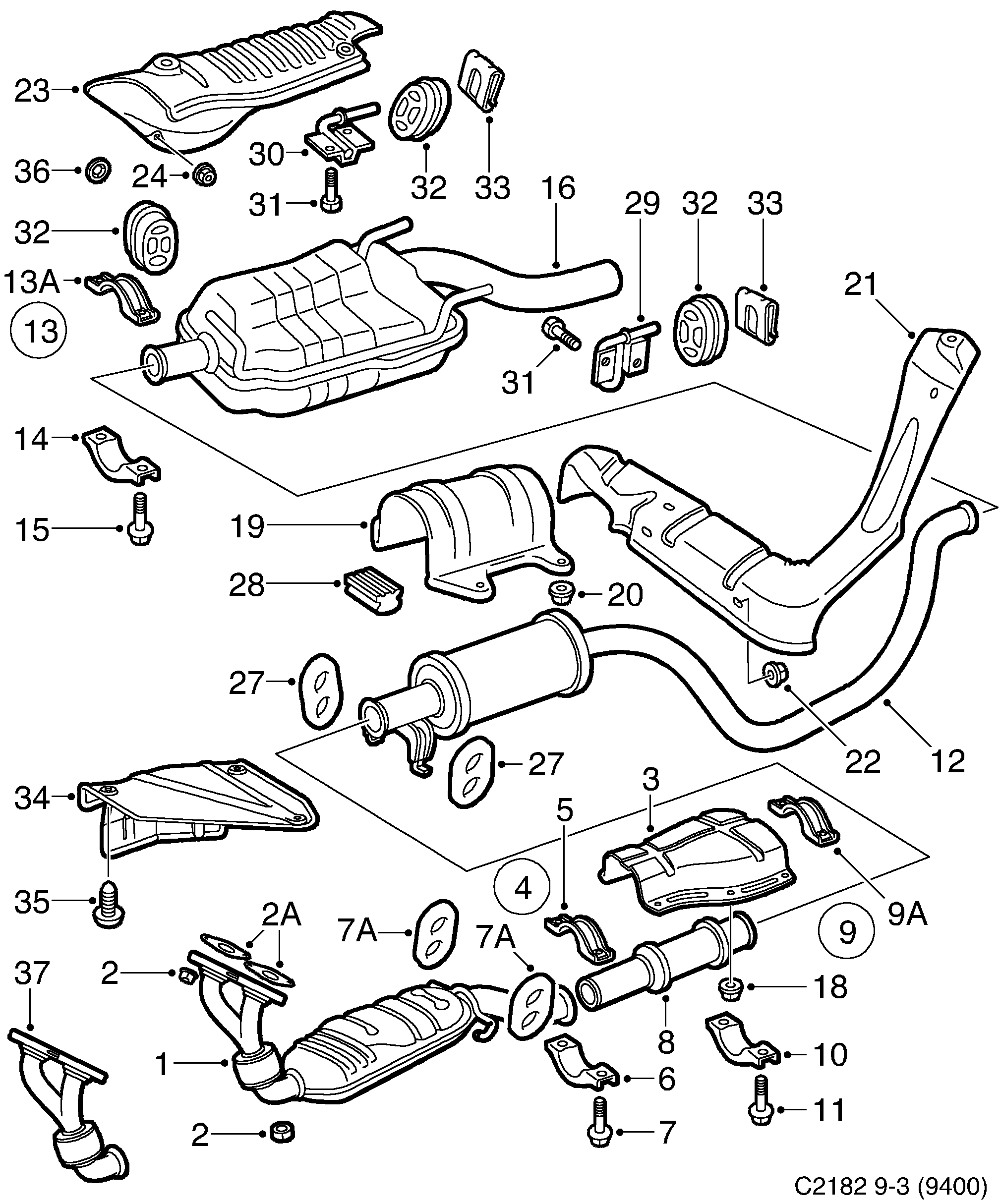

1000: Engine - Intake and exhaust system - Exhaust system

(1998 - 2000 | PETROL) | For 9-3 (9400) (2000)

100%

(N°980)

Section 1000

(N°1030)

Pos.	Part No.	Description	Usage	Qty
1	49 60 175 93 167 223 Three way catalytic converter 1999-2000 • PETROL	Three way catalytic converter	1999-2000 PETROL	1
2	46 85 830 Nut 1998-2000 • PETROL	Nut	1998-2000 PETROL	4
2A	46 24 383 Gasket 1998-2000 • PETROL	Gasket	1998-2000 PETROL	2
3	47 28 663 53 24 058 Heat shield PETROL	Heat shield	PETROL	1
4	54 65 950 Exhaust pipe clamp PETROL • Assy	Exhaust pipe clamp	PETROL Assy	1
5	42 29 829 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
6	42 29 811 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
7	79 78 190 55 566 034 Screw PETROL	Screw	PETROL	2
7A	93 65 404 Rubber mounting PETROL	Rubber mounting	PETROL	2
8	47 50 741 Intermediate pipe PETROL	Intermediate pipe	PETROL	1
9	54 65 950 Exhaust pipe clamp PETROL • Assy	Exhaust pipe clamp	PETROL Assy	1
9A	42 29 829 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
10	42 29 811 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
11	79 78 190 55 566 034 Screw PETROL	Screw	PETROL	2
12	49 04 777 49 66 859 Silencer 1999-2000 • PETROL	Silencer	1999-2000 PETROL	1
13	54 65 950 Exhaust pipe clamp PETROL • Assy	Exhaust pipe clamp	PETROL Assy	1
13A	42 29 829 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
14	42 29 811 Exhaust pipe clamp PETROL	Exhaust pipe clamp	PETROL	1
15	79 78 190 55 566 034 Screw PETROL	Screw	PETROL	2
16	51 74 990 Silencer 2000-2000 • PETROL	Silencer	2000-2000 PETROL	1
18	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	8
19	47 50 949 Heat shield PETROL	Heat shield	PETROL	1
20	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	4
21	42 35 362 Heat shield PETROL	Heat shield	PETROL	1
22	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	3
23	43 94 128 Heat shield PETROL	Heat shield	PETROL	1
24	43 45 138 11 089 471 Hexagon nut PETROL	Hexagon nut	PETROL	4
27	42 35 396 Rubber mounting PETROL	Rubber mounting	PETROL	2
28	42 35 412 Rubber damper PETROL	Rubber damper	PETROL	1
29	42 29 225 Bracket PETROL	Bracket	PETROL	1
30	42 29 209 Bracket PETROL	Bracket	PETROL	1
31	79 72 623 92 153 212 Screw PETROL	Screw	PETROL	4
32	42 35 404 Rubber mounting PETROL	Rubber mounting	PETROL	3
33	46 85 608 92 152 112 Clip PETROL	Clip	PETROL	2
34	91 44 676 Heat shield PETROL	Heat shield	PETROL	1
	oil sump PETROL	oil sump	PETROL
35	79 71 294 Screw PETROL	Screw	PETROL	3
36	40 87 722 Lock washer PETROL	Lock washer	PETROL	1
37	51 71 798 Exhaust pipe B204I	Exhaust pipe	B204I	1
