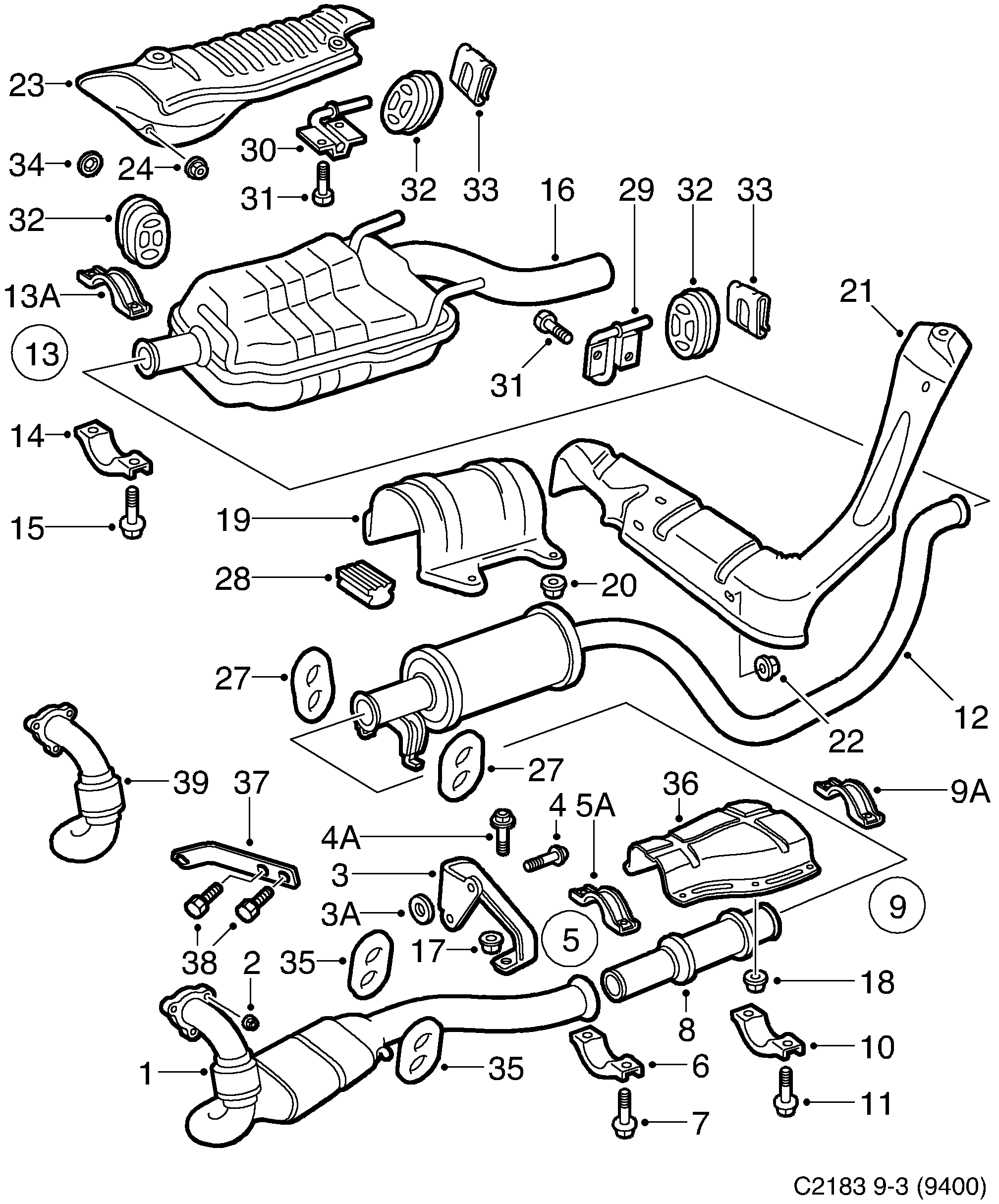

1030: Engine - Intake and exhaust system - Exhaust system
(1998 - 2003 | PETROL) | For 9-3 (9400) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 49 60 191 Three way catalytic converter 1999-2000 • B204E | 1 | |
| 1 | 49 62 221 Three way catalytic converter 2000-2001 • PETROL | 1 | |
| 2 | 75 19 432 92 152 032 Nut 1998-2000 • PETROL | 3 | |
| 3 | 44 44 337 46 24 557 Brace PETROL | 1 | |
| 3A | 79 82 317 Washer PETROL | 2 | |
| 4 | 79 78 182 92 150 012 Screw PETROL | 2 | |
| 4A | 79 78 265 Hexagon screw PETROL | 1 | |
| 5 | 54 65 950 Exhaust pipe clamp PETROL • Assy | 1 | |
| 5A | 42 29 829 Exhaust pipe clamp PETROL | 1 | |
| 6 | 42 29 811 Exhaust pipe clamp PETROL | 1 | |
| 7 | 79 78 190 55 566 034 Screw PETROL | 2 | |
| 8 | 47 50 741 Intermediate pipe PETROL | 1 | |
| 9 | 54 65 950 Exhaust pipe clamp PETROL • Assy | 1 | |
| 9A | 42 29 829 Exhaust pipe clamp PETROL | 1 | |
| 10 | 42 29 811 Exhaust pipe clamp PETROL | 1 | |
| 11 | 79 78 190 55 566 034 Screw PETROL | 2 | |
| 12 | 49 66 859 Silencer 2000-2002 • B205L, B205R, B235R | 1 | |
| 12 | 49 04 777 49 66 859 Silencer 2000-2002 • B204E, B205E | 1 | |
| 13 | 54 65 950 Exhaust pipe clamp PETROL | 1 | |
| 13A | 42 29 829 Exhaust pipe clamp PETROL | 1 | |
| 14 | 42 29 811 Exhaust pipe clamp PETROL | 1 | |
| 15 | 79 78 190 55 566 034 Screw PETROL | 2 | |
| 16 | 49 66 867 Silencer 2000-2000 • PETROL • Tail pipe sleeve: black | 1 | |
| 16 | 49 66 875 400129110 Silencer 2000-2000 • B205R • Tail pipe sleeve: polished | 1 | |
| 16 | 51 22 064 Silencer 1999-2002 • B235R | 1 | |
| 17 | 75 54 215 Spacer PETROL | 1 | |
| 18 | 43 45 138 11 089 471 Hexagon nut PETROL | 8 | |
| 19 | 47 50 949 Heat shield PETROL | 1 | |
| 20 | 43 45 138 11 089 471 Hexagon nut PETROL | 4 | |
| 21 | 42 35 362 Heat shield PETROL | 1 | |
| 22 | 43 45 138 11 089 471 Hexagon nut PETROL | 3 | |
| 23 | 43 94 128 Heat shield PETROL | 1 | |
| 24 | 43 45 138 11 089 471 Hexagon nut PETROL | 4 | |
| 27 | 42 35 396 Rubber mounting PETROL | 2 | |
| 28 | 42 35 412 Rubber damper PETROL | 1 | |
| 29 | 42 29 225 Bracket PETROL | 1 | |
| 30 | 42 29 209 Bracket PETROL | 1 | |
| 31 | 79 72 623 92 153 212 Screw PETROL | 4 | |
| 32 | 42 35 404 Rubber mounting PETROL | 3 | |
| 33 | 46 85 608 92 152 112 Clip PETROL | 2 | |
| 34 | 40 87 722 Lock washer PETROL | 1 | |
| 35 | 93 65 404 Rubber mounting PETROL | 2 | |
| 36 | 47 28 663 53 24 058 Heat shield 1998-2000 • PETROL | 1 | |
| 37 | 49 68 764 Brace 2000-2000 • B205L, B205R, B205E | 1 | |
| 38 | 79 78 190 55 566 034 Screw 2000-2003 • B205L, B205R | 2 |
