Question 1

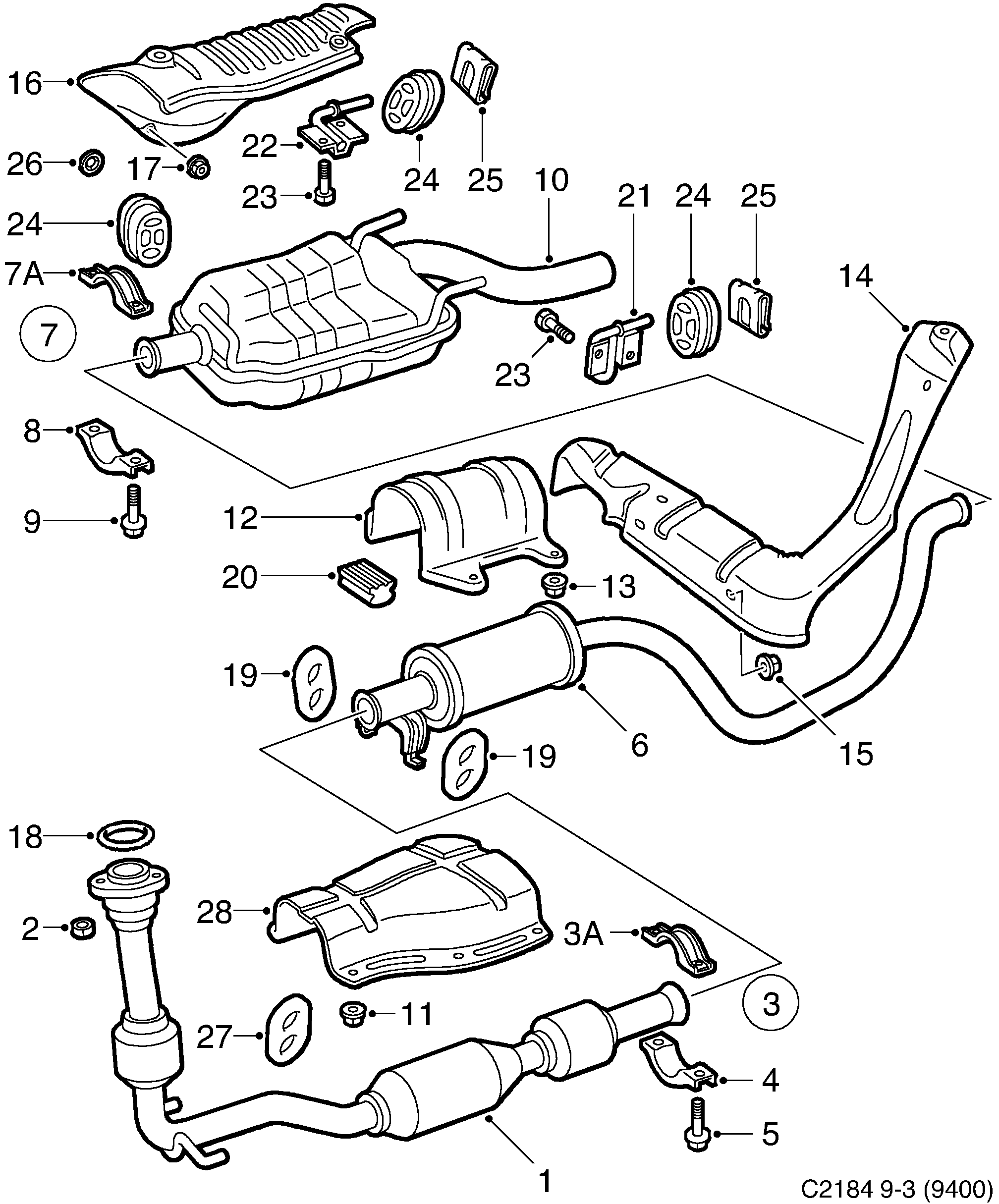

Where to find the exploded diagram for Intake and exhaust system on my Saab 9-3 (9400) 2000?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 9-3 (9400) 2000. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 9-3 (9400) catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	46 23 278 Three way catalytic converter -2001 • D223L	Three way catalytic converter	-2001 D223L	1
2	75 19 432 92 152 032 Nut 1998-2000 • D223L	Nut	1998-2000 D223L	3
3	54 65 950 Exhaust pipe clamp D223L • Assy	Exhaust pipe clamp	D223L Assy	1
3A	42 29 829 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
4	42 29 811 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
5	79 78 190 55 566 034 Screw D223L	Screw	D223L	2
6	49 04 777 49 66 859 Silencer 1999-2000 • D223L	Silencer	1999-2000 D223L	1
6	49 66 859 Silencer 2000- • D223L	Silencer	2000- D223L	1
7	54 65 950 Exhaust pipe clamp D223L • Assy	Exhaust pipe clamp	D223L Assy	1
7A	42 29 829 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
8	42 29 811 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
9	79 78 190 55 566 034 Screw D223L	Screw	D223L	2
10	49 04 793 51 93 149 Silencer 1999-2000 • D223L	Silencer	1999-2000 D223L	1
10	51 93 149 Silencer 2000- • D223L	Silencer	2000- D223L	1
11	40 87 664 92 151 935 Nut D223L	Nut	D223L	6
12	47 50 949 Heat shield D223L	Heat shield	D223L	1
13	40 87 664 92 151 935 Nut D223L	Nut	D223L	4
14	42 35 362 Heat shield D223L	Heat shield	D223L	1
15	40 87 664 92 151 935 Nut D223L	Nut	D223L	3
16	43 94 128 Heat shield D223L	Heat shield	D223L	1
17	40 87 664 92 151 935 Nut D223L	Nut	D223L	4
18	46 23 286 90 500 695 Gasket D223L	Gasket	D223L	1
19	42 35 396 Rubber mounting D223L	Rubber mounting	D223L	2
20	42 35 412 Rubber damper D223L	Rubber damper	D223L	1
21	42 29 225 Bracket D223L	Bracket	D223L	1
22	42 29 209 Bracket D223L	Bracket	D223L	1
23	79 72 623 92 153 212 Screw D223L	Screw	D223L	4
24	42 35 404 Rubber mounting D223L	Rubber mounting	D223L	3
25	46 85 608 92 152 112 Clip D223L	Clip	D223L	2
26	40 87 722 Lock washer D223L	Lock washer	D223L	1
27	93 65 404 Rubber mounting D223L	Rubber mounting	D223L	2
28	42 35 347 Heat shield -2001 • D223L	Heat shield	-2001 D223L	1

Pos.	Part No.	Description	Usage	Qty
1	46 23 278 Three way catalytic converter -2001 • D223L	Three way catalytic converter	-2001 D223L	1
2	75 19 432 92 152 032 Nut 1998-2000 • D223L	Nut	1998-2000 D223L	3
3	54 65 950 Exhaust pipe clamp D223L • Assy	Exhaust pipe clamp	D223L Assy	1
3A	42 29 829 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
4	42 29 811 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
5	79 78 190 55 566 034 Screw D223L	Screw	D223L	2
6	49 04 777 49 66 859 Silencer 1999-2000 • D223L	Silencer	1999-2000 D223L	1
6	49 66 859 Silencer 2000- • D223L	Silencer	2000- D223L	1
7	54 65 950 Exhaust pipe clamp D223L • Assy	Exhaust pipe clamp	D223L Assy	1
7A	42 29 829 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
8	42 29 811 Exhaust pipe clamp D223L	Exhaust pipe clamp	D223L	1
9	79 78 190 55 566 034 Screw D223L	Screw	D223L	2
10	49 04 793 51 93 149 Silencer 1999-2000 • D223L	Silencer	1999-2000 D223L	1
10	51 93 149 Silencer 2000- • D223L	Silencer	2000- D223L	1
11	40 87 664 92 151 935 Nut D223L	Nut	D223L	6
12	47 50 949 Heat shield D223L	Heat shield	D223L	1
13	40 87 664 92 151 935 Nut D223L	Nut	D223L	4
14	42 35 362 Heat shield D223L	Heat shield	D223L	1
15	40 87 664 92 151 935 Nut D223L	Nut	D223L	3
16	43 94 128 Heat shield D223L	Heat shield	D223L	1
17	40 87 664 92 151 935 Nut D223L	Nut	D223L	4
18	46 23 286 90 500 695 Gasket D223L	Gasket	D223L	1
19	42 35 396 Rubber mounting D223L	Rubber mounting	D223L	2
20	42 35 412 Rubber damper D223L	Rubber damper	D223L	1
21	42 29 225 Bracket D223L	Bracket	D223L	1
22	42 29 209 Bracket D223L	Bracket	D223L	1
23	79 72 623 92 153 212 Screw D223L	Screw	D223L	4
24	42 35 404 Rubber mounting D223L	Rubber mounting	D223L	3
25	46 85 608 92 152 112 Clip D223L	Clip	D223L	2
26	40 87 722 Lock washer D223L	Lock washer	D223L	1
27	93 65 404 Rubber mounting D223L	Rubber mounting	D223L	2
28	42 35 347 Heat shield -2001 • D223L	Heat shield	-2001 D223L	1

1060: Engine - Intake and exhaust system - Exhaust system
