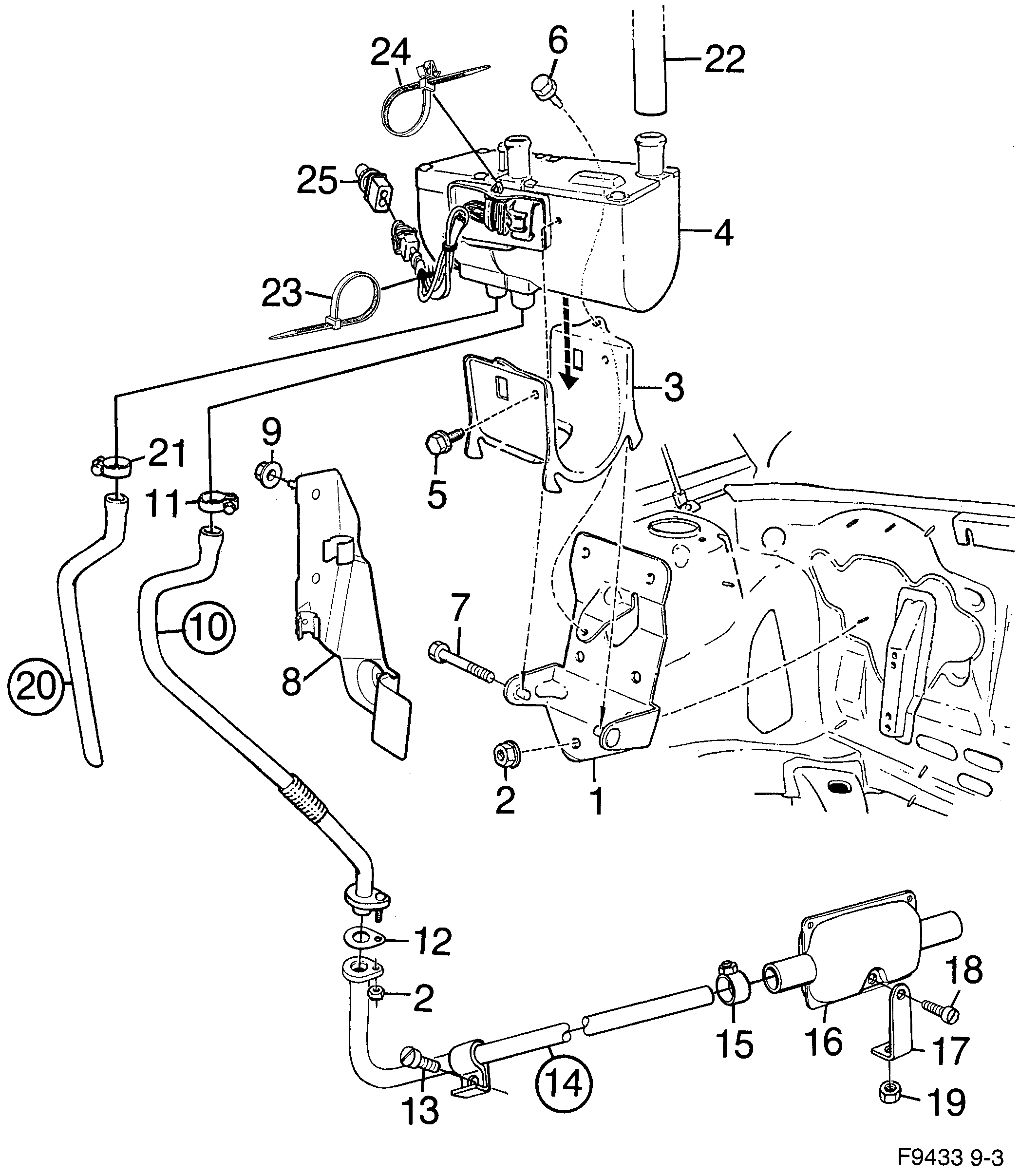

Pos.	Part No.	Description	Usage	Qty
1	46 24 771 Bracket LHD • D223L	Bracket	LHD D223L	1
1	46 24 813 Bracket RHD • D223L	Bracket	RHD D223L	1
2	79 77 929 11 900 451 Nut D223L	Nut	D223L	4
3	49 62 197 Bracket LHD • D223L	Bracket	LHD D223L	1
3	46 24 789 Bracket RHD • D223L	Bracket	RHD D223L	1
4	Heater unitIntake and exhaust system D223L	Heater unitIntake and exhaust system D223L
5	79 78 091 11 900 353 Screw D223L	Screw	D223L	2
6	79 78 117 11 900 355 Screw D223L	Screw	D223L	1
7	80 22 055 Hexagon screw D223L	Hexagon screw	D223L	1
8	48 78 369 Bracket LHD • D223L	Bracket	LHD D223L	1
8	48 78 559 Bracket RHD • D223L	Bracket	RHD D223L	1
6	40 87 128 92 152 035 Plastic nut D223L	Plastic nut	D223L	2
10	47 51 434 Exhaust pipe LHD • D223L	Exhaust pipe	LHD D223L	1
10	47 51 483 Exhaust pipe RHD • D223L	Exhaust pipe	RHD D223L	1
11	49 40 433 400109286 Hose clamp D223L	Hose clamp	D223L	1
12	48 79 227 Gasket D223L	Gasket	D223L	1
13	79 71 294 Screw D223L	Screw	D223L	1
14	48 76 868 Exhaust pipe -2001 • D223L	Exhaust pipe	-2001 D223L	1
15	49 40 441 Hose clamp D223L	Hose clamp	D223L	1
16	46 23 351 400106936 Silencer D223L	Silencer	D223L	1
17	48 76 892 Bracket D223L	Bracket	D223L	1
18	79 78 091 11 900 353 Screw D223L	Screw	D223L	1
19	40 87 664 92 151 935 Nut D223L	Nut	D223L	1
20	46 23 344 Intake manifold LHD • D223L	Intake manifold	LHD D223L	1
20	46 24 896 Intake manifold RHD • D223L	Intake manifold	RHD D223L	1
21	49 40 425 Clamp D223L	Clamp	D223L	1
22	HoseIntake and exhaust system D223L	HoseIntake and exhaust system D223L
23	79 71 864 Tensioning band D223L	Tensioning band	D223L	2
24	95 28 019 Tensioning band D223L	Tensioning band	D223L	1
25	49 42 298 Dummy socket D223L	Dummy socket	D223L	1

Pos.	Part No.	Description	Usage	Qty
1	46 24 771 Bracket LHD • D223L	Bracket	LHD D223L	1
1	46 24 813 Bracket RHD • D223L	Bracket	RHD D223L	1
2	79 77 929 11 900 451 Nut D223L	Nut	D223L	4
3	49 62 197 Bracket LHD • D223L	Bracket	LHD D223L	1
3	46 24 789 Bracket RHD • D223L	Bracket	RHD D223L	1
4	Heater unitIntake and exhaust system D223L	Heater unitIntake and exhaust system D223L
5	79 78 091 11 900 353 Screw D223L	Screw	D223L	2
6	79 78 117 11 900 355 Screw D223L	Screw	D223L	1
7	80 22 055 Hexagon screw D223L	Hexagon screw	D223L	1
8	48 78 369 Bracket LHD • D223L	Bracket	LHD D223L	1
8	48 78 559 Bracket RHD • D223L	Bracket	RHD D223L	1
6	40 87 128 92 152 035 Plastic nut D223L	Plastic nut	D223L	2
10	47 51 434 Exhaust pipe LHD • D223L	Exhaust pipe	LHD D223L	1
10	47 51 483 Exhaust pipe RHD • D223L	Exhaust pipe	RHD D223L	1
11	49 40 433 400109286 Hose clamp D223L	Hose clamp	D223L	1
12	48 79 227 Gasket D223L	Gasket	D223L	1
13	79 71 294 Screw D223L	Screw	D223L	1
14	48 76 868 Exhaust pipe -2001 • D223L	Exhaust pipe	-2001 D223L	1
15	49 40 441 Hose clamp D223L	Hose clamp	D223L	1
16	46 23 351 400106936 Silencer D223L	Silencer	D223L	1
17	48 76 892 Bracket D223L	Bracket	D223L	1
18	79 78 091 11 900 353 Screw D223L	Screw	D223L	1
19	40 87 664 92 151 935 Nut D223L	Nut	D223L	1
20	46 23 344 Intake manifold LHD • D223L	Intake manifold	LHD D223L	1
20	46 24 896 Intake manifold RHD • D223L	Intake manifold	RHD D223L	1
21	49 40 425 Clamp D223L	Clamp	D223L	1
22	HoseIntake and exhaust system D223L	HoseIntake and exhaust system D223L
23	79 71 864 Tensioning band D223L	Tensioning band	D223L	2
24	95 28 019 Tensioning band D223L	Tensioning band	D223L	1
25	49 42 298 Dummy socket D223L	Dummy socket	D223L	1
