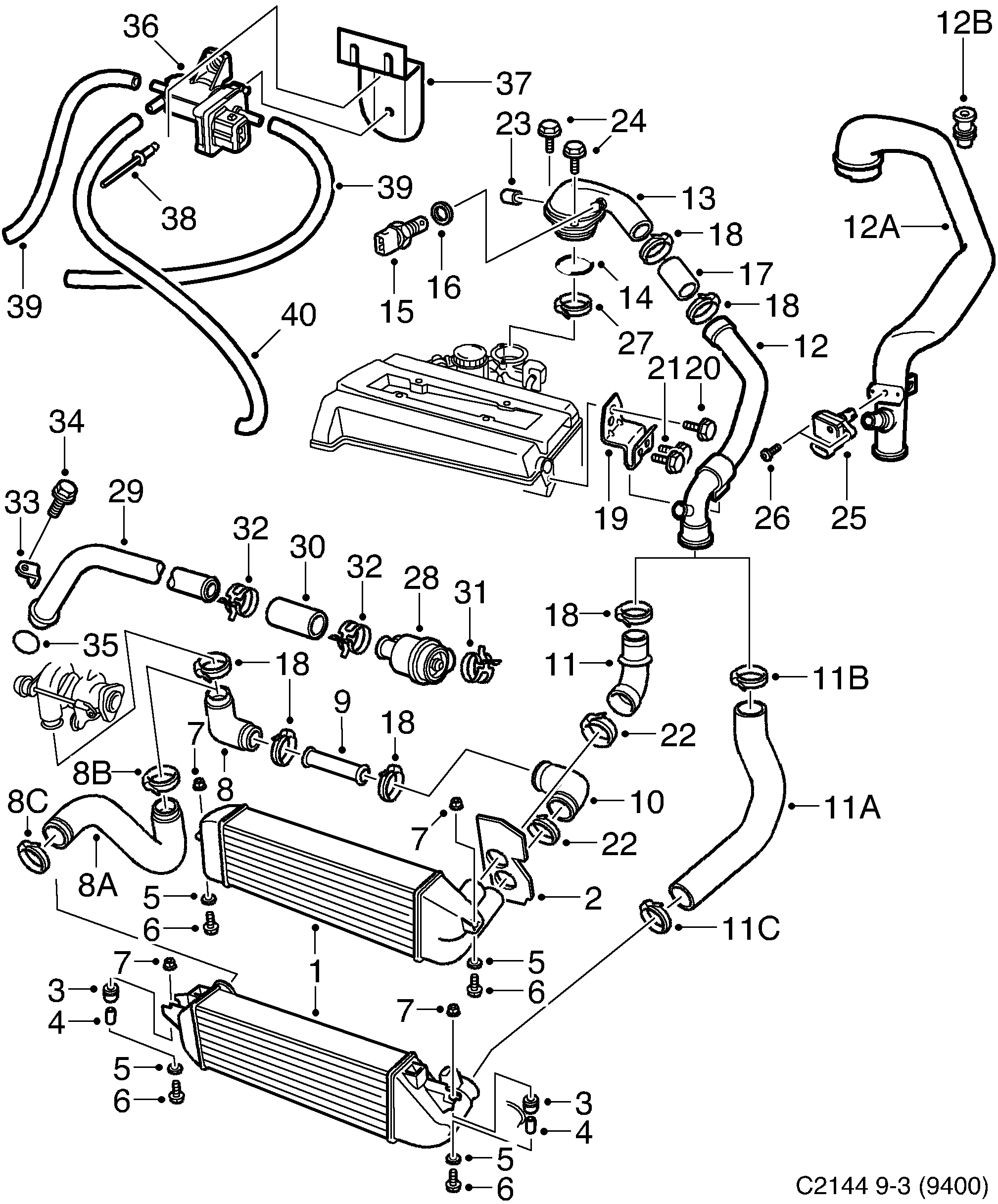

1210: Engine - Cooling system - Charge air cooler
(1998 - 2003 | PETROL) | For 9-3 (9400) (2000)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 3 | 75 43 762 Rubber bushing PETROL | 2 | |
| 4 | 75 44 356 Spacer tube PETROL | 2 | |
| 5 | 79 75 469 79 87 506 Washer PETROL | 2 | |
| 6 | 79 78 158 Hexagon screw PETROL | 2 | |
| 7 | 73 99 454 91 30 829 Rivet nut PETROL | 2 | |
| 8 | 49 01 914 Hose 1999-2000 • PETROL | 1 | |
| 8A | 48 76 132 48 79 086 Hose -2002 • B205 | 1 | |
| 8B | 79 70 148 92 153 079 Hose clamp -2002 • PETROL | 1 | |
| 8C | 79 70 130 92 153 077 Hose clamp -2002 • PETROL | 1 | |
| 9 | 44 44 279 Tube 1998-2000 • PETROL • (4235149) | 1 | |
| 10 | 49 01 906 Hose 1999-2000 • PETROL | 1 | |
| 11 | 49 01 898 Hose 1999-2000 • PETROL | 1 | |
| 11A | 51 95 714 51 95 805 Hose -2002 • B205 | 1 | |
| 11B | 79 70 130 92 153 077 Hose clamp 1998-2000 • B205, B204R | 2 | |
| 12 | 53 36 516 Pipe 1998-2000 • PETROL • (42 28 789) | 1 | |
| 13 | 42 28 771 Pipe elbow 1998-2000 • PETROL | 1 | |
| 14 | 42 26 833 O-ring 1998-2000 • B204E, B204L, B204R | 1 | |
| 14 | 49 40 698 O-ring 2000-2003 • B205 | 1 | |
| 15 | 91 74 442 Intake air temperature sensor 1998-2000 • PETROL | 1 | |
| 16 | 41 61 261 Washer 1998-2000 • PETROL | 1 | |
| 17 | 49 04 702 Hose PETROL | 1 | |
| 18 | 79 70 130 92 153 077 Hose clamp 1999-1999 • PETROL | 6 | |
| 19 | 42 26 841 Bracket 1998-2000 • PETROL | 1 | |
| 20 | 79 78 182 92 150 012 Screw PETROL | 1 | |
| 21 | 79 78 117 11 900 355 Screw 1998-2000 • PETROL | 2 | |
| 23 | 43 94 318 Bushing 1998-2000 • PETROL | 1 | |
| 24 | 79 78 117 11 900 355 Screw 1998-2000 • PETROL | 2 | |
By-pass valveIntake and exhaust system 1998-2000 • PETROL | |||
| 36 | 91 89 002 55 562 854 Vacuum valve 2000-2003 • B205 | 1 | |
| 37 | 42 26 098 Bracket 2000-2003 • B205 | 1 | |
| 38 | 79 72 516 92 153 060 Rivet 2000-2003 • B205 | 2 | |
| 39 | 91 36 243 Vacuum hose 2000-2003 • B205 • L=460 MM | Sold... | 2 | |
| 40 | 91 36 243 Vacuum hose 2000-2003 • B205 • L=850 MM | Sold... | 1 |
