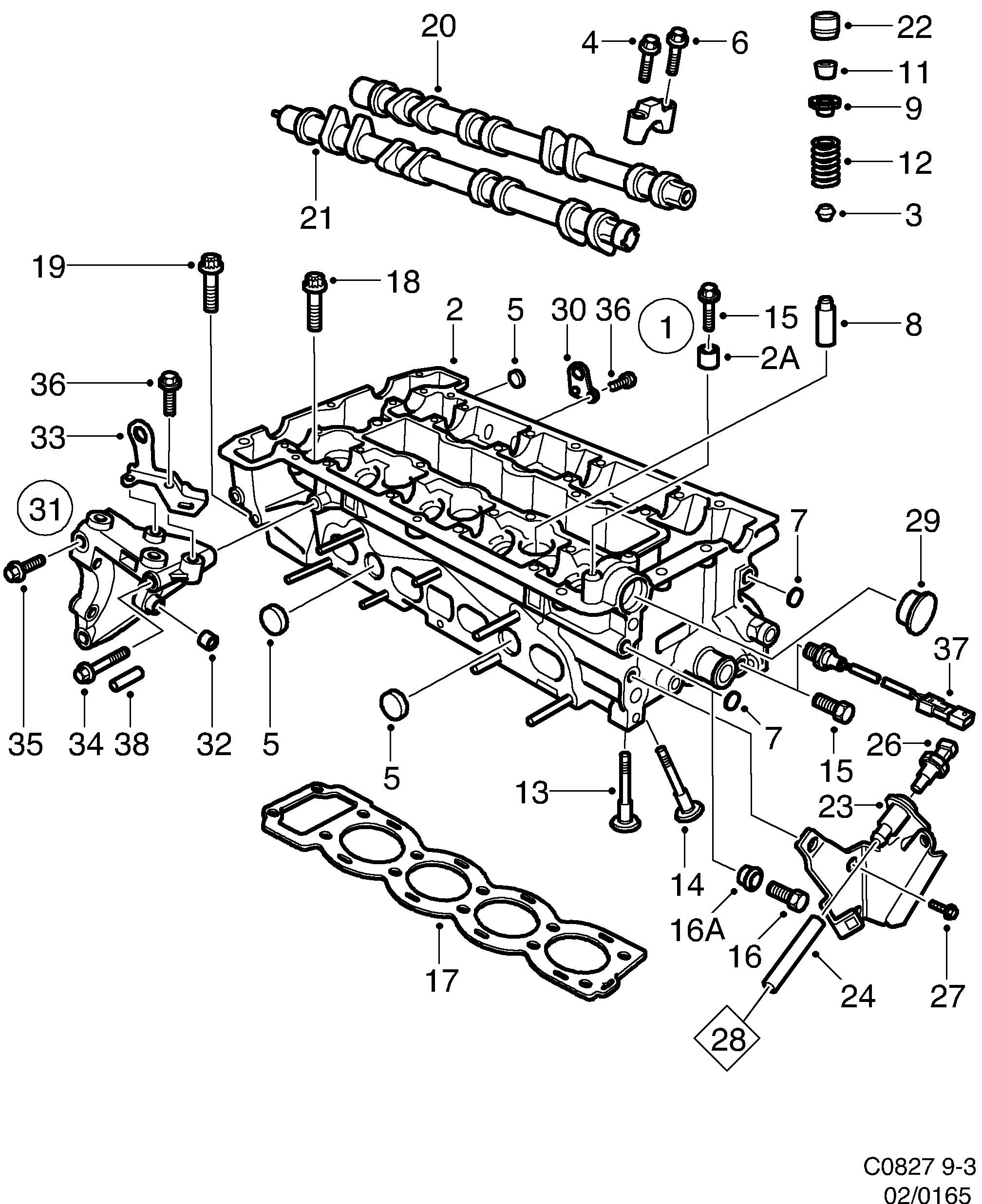

165: Engine - Short block - Cylinder head

(1999 - 2003 | PETROL) | For 9-3 (9400) (2000)

100%

(N°160)

Section 165

(N°170)

Pos.	Part No.	Description	Usage	Qty
1	91 98 243 93 169 239 Cylinder head 2000-2003 • B235R, B205L, B205R	Cylinder head	2000-2003 B235R, B205L, B205R	1
2	91 86 933 Cylinder head PETROL • Not as separate spare...	Cylinder head	PETROL Not as separate spare...	1
2A	75 04 566 Guide sleeve PETROL	Guide sleeve	PETROL	2
3	91 70 861 59 55 570 Seal -2001 • PETROL	Seal	-2001 PETROL	16
4	75 85 847 55 559 477 Screw PETROL	Screw	PETROL	8
5	75 88 320 Sealing washer PETROL	Sealing washer	PETROL	5
6	40 87 805 11 900 368 Screw PETROL	Screw	PETROL	12
7	49 40 466 Plug PETROL	Plug	PETROL	3
8	93 99 957 Valve guide PETROL	Valve guide	PETROL	16
9	91 70 796 Washer PETROL	Washer	PETROL	16
11	91 70 812 55 557 221 Valve cone PETROL	Valve cone	PETROL	32
12	91 81 769 55 557 218 Spring PETROL	Spring	PETROL	16
13	93 99 965 Exhaust valve B205E	Exhaust valve	B205E	8
13	91 79 219 Exhaust valve 1999-2002 • B205L, B205R, B235R	Exhaust valve	1999-2002 B205L, B205R, B235R	8
14	91 85 851 55 560 663 Inlet valve PETROL	Inlet valve	PETROL	8
15	75 04 178 92 151 833 Screw PETROL	Screw	PETROL	2
16	46 85 780 Plug PETROL	Plug	PETROL	1
16A	83 26 704 Seal 1999-2002 • PETROL	Seal	1999-2002 PETROL	1
17	91 71 935 59 60 083 Gasket -2001 • PETROL	Gasket	-2001 PETROL	1
18	59 55 794 Screw PETROL	Screw	PETROL	10
19	79 78 216 11 900 367 Hexagon screw PETROL	Hexagon screw	PETROL	2
20	91 70 887 55 557 273 Camshaft PETROL	Camshaft	PETROL	1
21	91 88 855 95 49 924 Camshaft B205	Camshaft	B205	1
21	91 70 895 59 55 562 Camshaft 1999-2002 • B235	Camshaft	1999-2002 B235	1
22	91 86 073 55 557 388 Valve lifter PETROL	Valve lifter	PETROL	16
23	91 82 502 55 558 435 Brace 1999-2000 • PETROL	Brace	1999-2000 PETROL	1
24	91 88 350 Hose 1999-2000 • PETROL	Hose	1999-2000 PETROL	1
26	91 71 497 Pressure sensor PETROL	Pressure sensor	PETROL	1
27	79 78 182 92 150 012 Screw PETROL	Screw	PETROL	2
28	Intake manifold PETROL	Intake manifold	PETROL
29	91 35 211 Sealing plug PETROL	Sealing plug	PETROL	1
30	51 22 825 Lifting eye 1999-2000 • PETROL	Lifting eye	1999-2000 PETROL	1
31	47 54 263 55 564 668 Bracket PETROL	Bracket	PETROL	1
31	BracketSteering assembly 1999-2000 • PETROL	BracketSteering assembly 1999-2000 • PETROL
32	75 93 072 Bushing PETROL	Bushing	PETROL	1
33	91 77 171 55 557 339 Lifting eye PETROL	Lifting eye	PETROL	1
34	79 82 960 Hexagon screw PETROL	Hexagon screw	PETROL	1
35	79 78 257 92 150 019 Screw PETROL	Screw	PETROL	2
36	79 78 190 55 566 034 Screw PETROL	Screw	PETROL	4
37	91 77 213 15 393 755 Temperature sensor 1999-2002 • PETROL	Temperature sensor	1999-2002 PETROL	1
38	91 98 649 32 000 453 Spacer sleeve 2000-2000 • PETROL	Spacer sleeve	2000-2000 PETROL	1
	Vacuum pumpFootbrake system 2000-2003 • PETROL	Vacuum pumpFootbrake system 2000-2003 • PETROL
